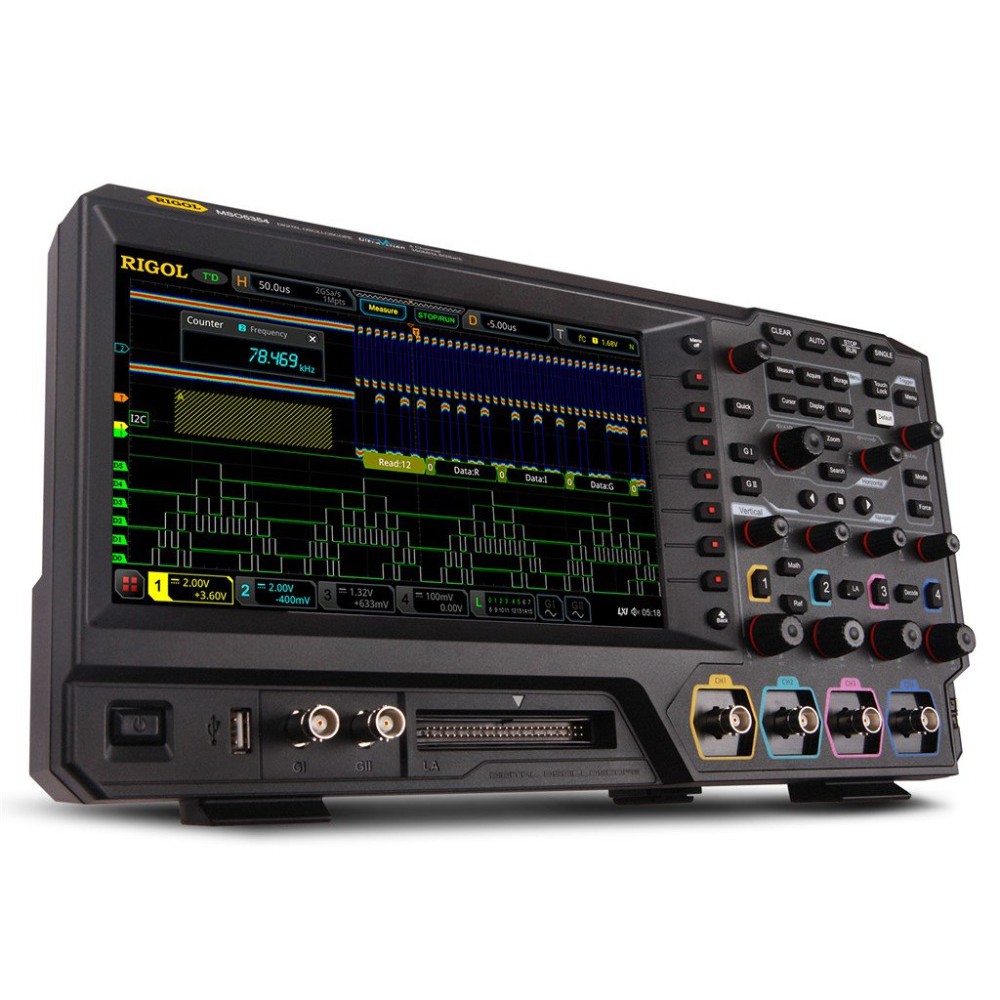

Four channel, 70 MHz digital / mixed signal oscilloscope
Up to 8 GSa/s real-time sample rate
100 Mpts memory depth, optional memory depth up to 200 Mpt
16 digital channels included - requires optional PLA2216 logic probe to operate
High waveform capture rate (over 500,000 wfm/s)

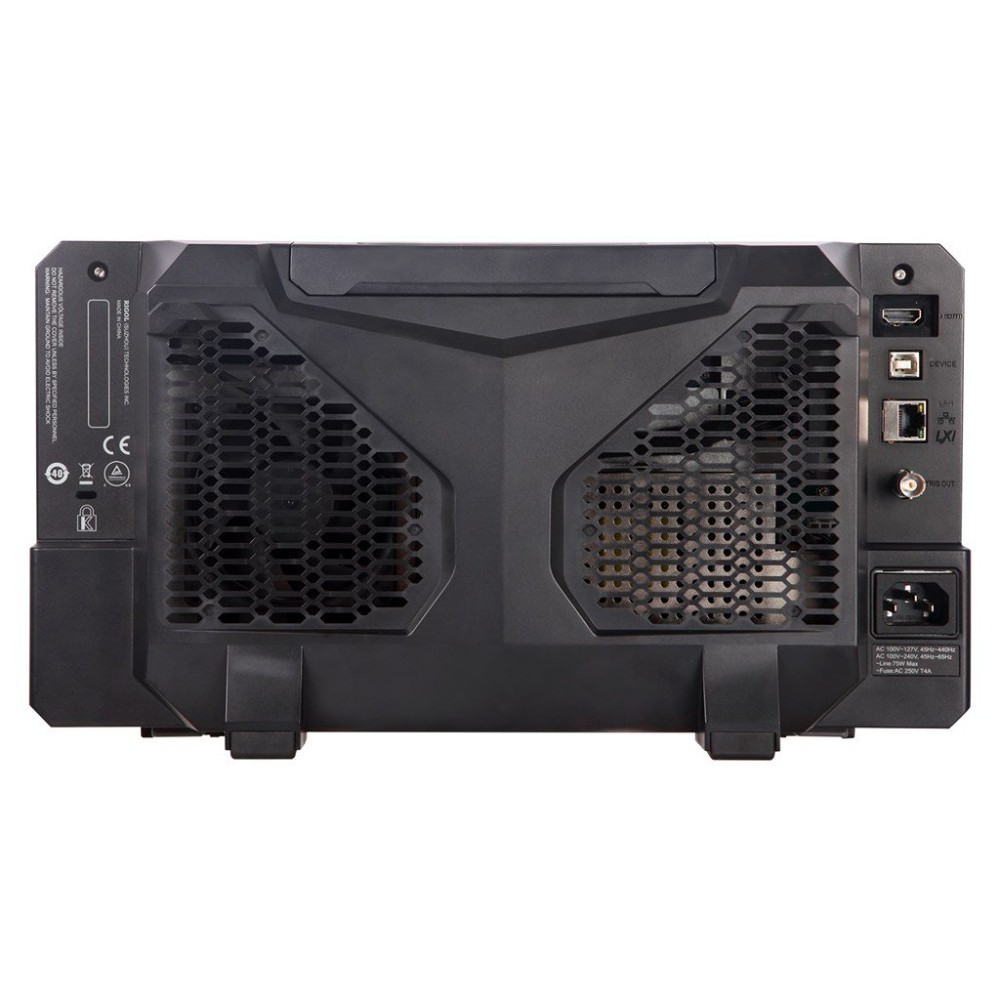

Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
Remote wireless control software - migrate instrument control and waveform analysis to PC
Auto measurement of 41 waveform parameters; full-memory hardware measurement function
Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
Integrates 7 independent instruments into 1 - digital oscilloscope, logic analyzer, spectrum analyzer, arbitrary waveform generator, digital voltmeter, a frequency counter and totalizer, and protocol analyzer
9-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence
