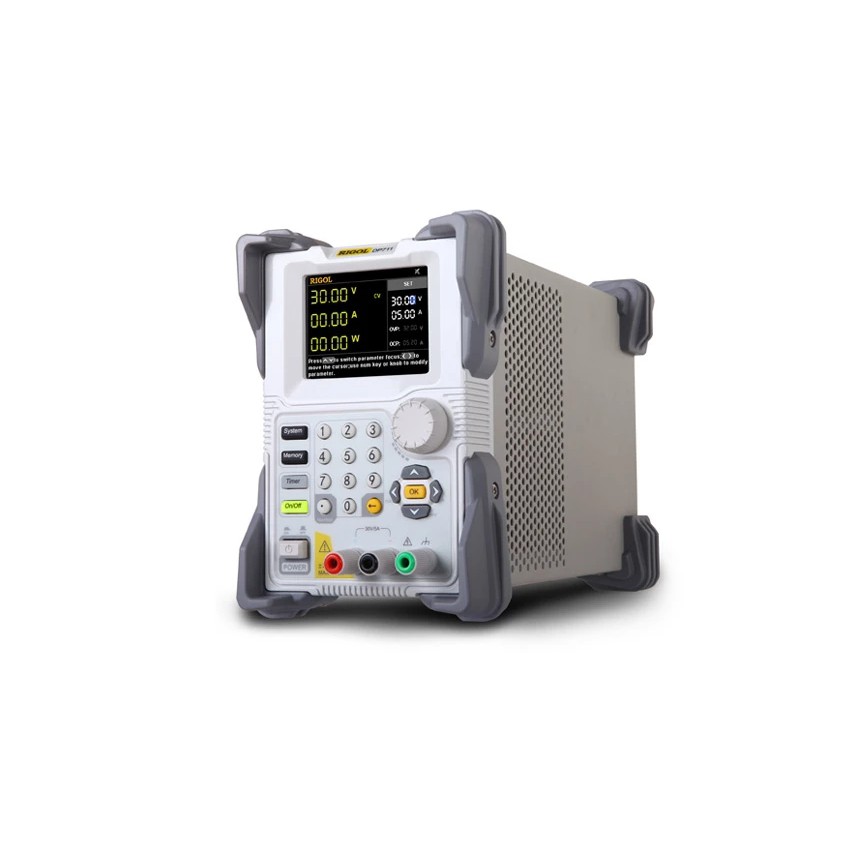

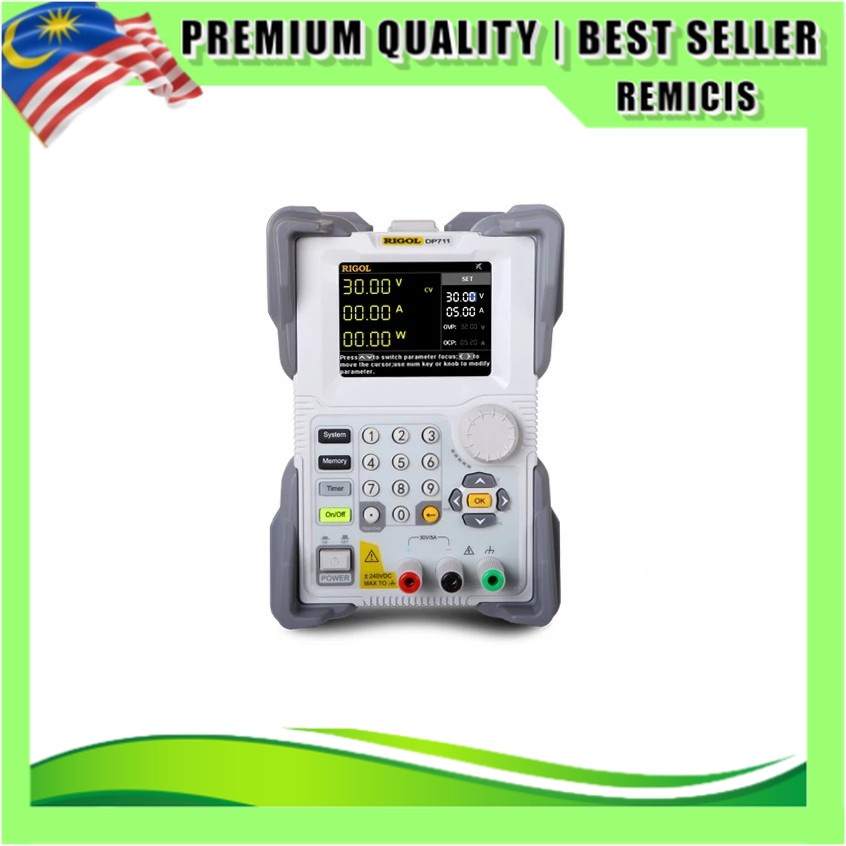

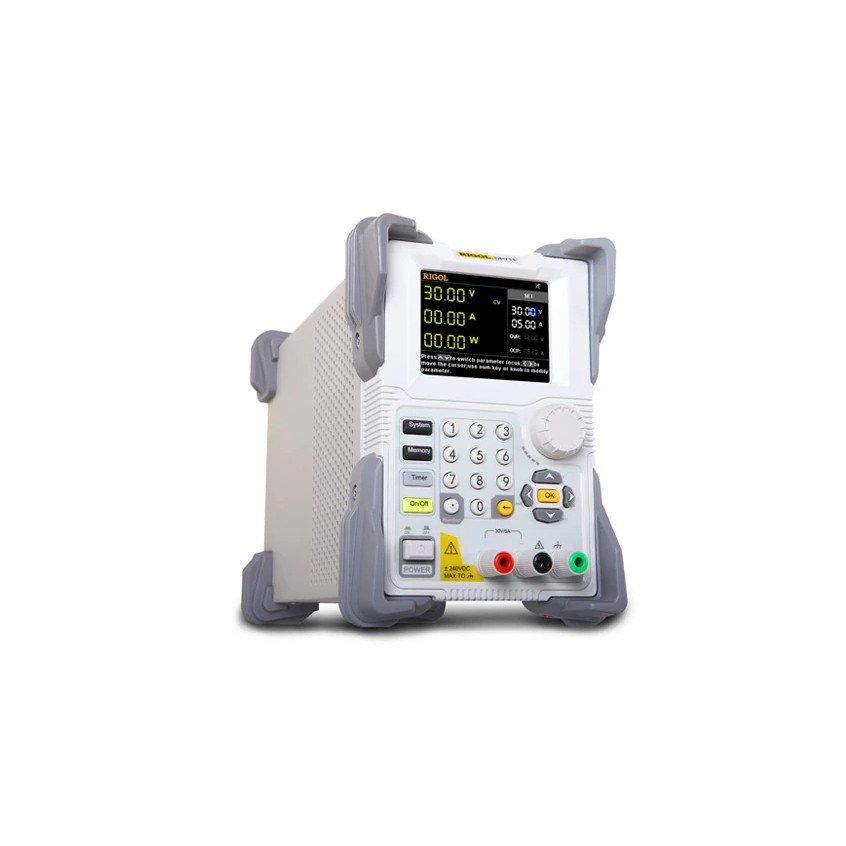

RIGOL's DP700 series power supply is an affordable programmable linear DC power supply for benchtop applications. With quality performance specifications, reliable output, and a small footprint, the DP700 series provides incredible benchtop value. The DP700s also support options including timing output, trigger function, and high resolution.
Features:
single output, 30 V/5 A , total power up to 150 W
Low ripple and noise: <500 μVrms/3 mVpp; <2 mArms
Excellent load and line regulation rate: <0.01% + 2 mV; <0.01% + 2 mA
Transient response time: <50 μs 1 mV/1 mA resolution (optional)
External trigger function supported, enabling synchronous output for multiple devices (optional)
Timing option supports sweeps with minimum 10 ms dwell time
3.5-inch TFT-LCD
