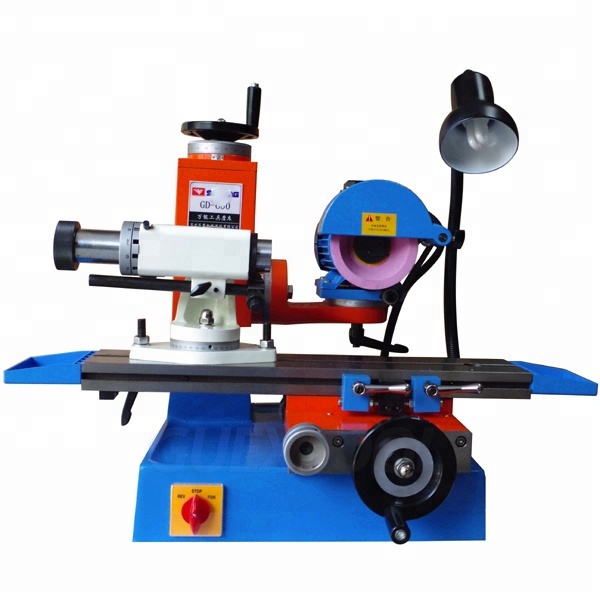

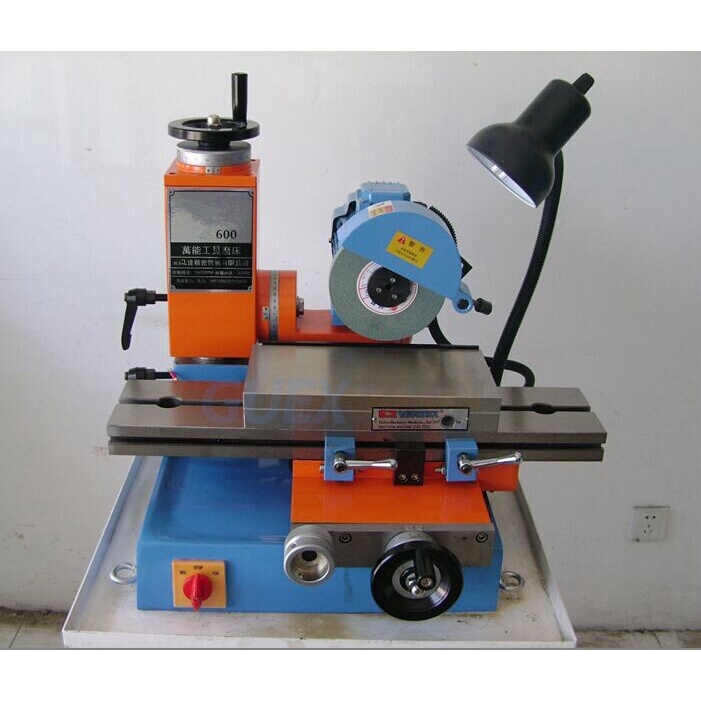

Introducing the Precision Universal Tool Grinder 600 - the ultimate grinding machine for all your milling cutters, end mills, and face milling cutters. This high-performance tool grinder is designed to meet all your grinding needs with ease and precision.
Featuring precision linear ball slides, the bed of this grinder is incredibly stable and easy to operate. The motor can rotate 360°, providing you with a vast range of grinding options and increasing the machine's mechanical function. With various grinding accessories that can be installed, you can complete the grinding of all your tools effortlessly.
Setting up the Precision Universal Tool Grinder 600 is a breeze. It comes with a simple operation system that ensures accurate and fast grinding. You'll love the convenience and accuracy of this grinder!
The grinder comes with a 125 x 50 x 32mm grinding wheel, 3,600 RPM wheel speed, and a 3/4P, 220V motor pressure and horsepower. The left and right travel of the worktable is 280mm, while the front and rear travel of the stage is 150mm. The countertop area measures 130mmx520mm, and the wheel head lifting distance is 250mm. The wheel head rotation angle is 360°. The net weight/gross weight is 150kgs/160kgs, and the package size is 690x700x800mm.
The Precision Universal Tool Grinder 600 is your ultimate solution for all your grinding needs. Don't miss out on this incredible machine - order yours today and take your grinding experience to the next level!
Product Name: Universal Tool Grinder Model: 600
Left and right travel of worktable: 280mm
Front and rear travel of the stage: 150mm
Countertop area: 130mmx520mm
Wheel head lifting distance: 250mm
Wheel head rotation angle: 360°
Wheel size: 125 x 50 x 32mm
Wheel Speed: 3,600 RPM
Motor pressure and horsepower: 3/4P, 220V
Net weight/gross weight: 150kgs/160kgs
Package size: 690x 700 x 800mm
The standard configuration:
1. Universal tool grinder (host) 1 set
2. 1 grinding wheel
3. A set of tools
Performance:

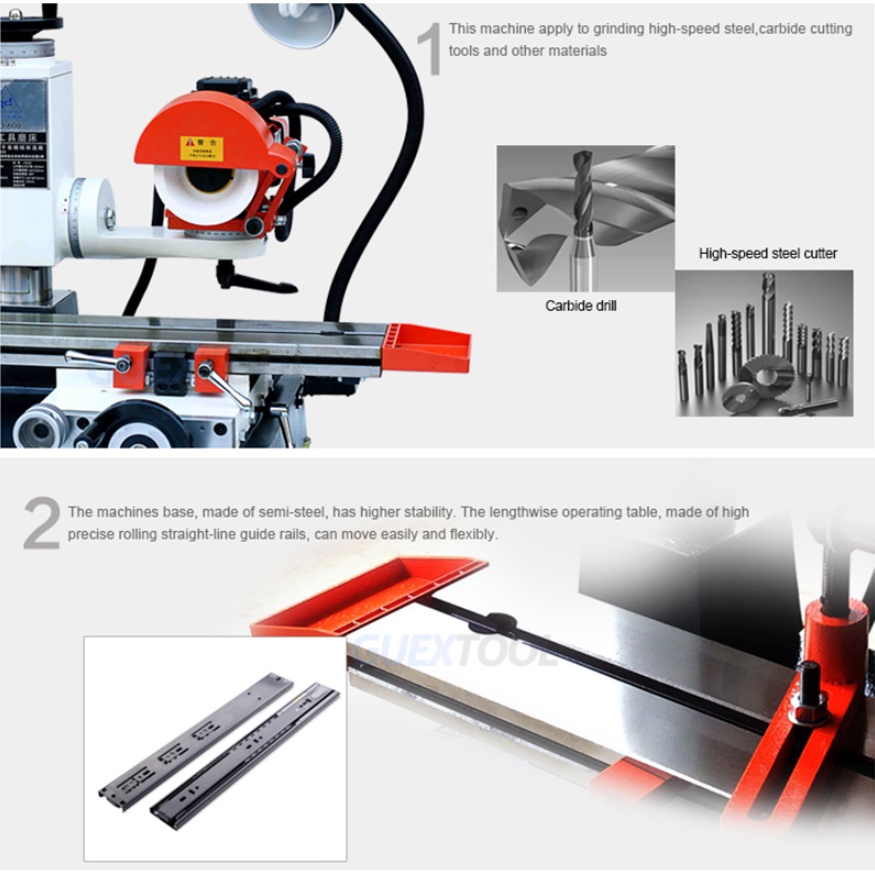

1. Using precision linear ball slides, the bed is stable and easy to operate.

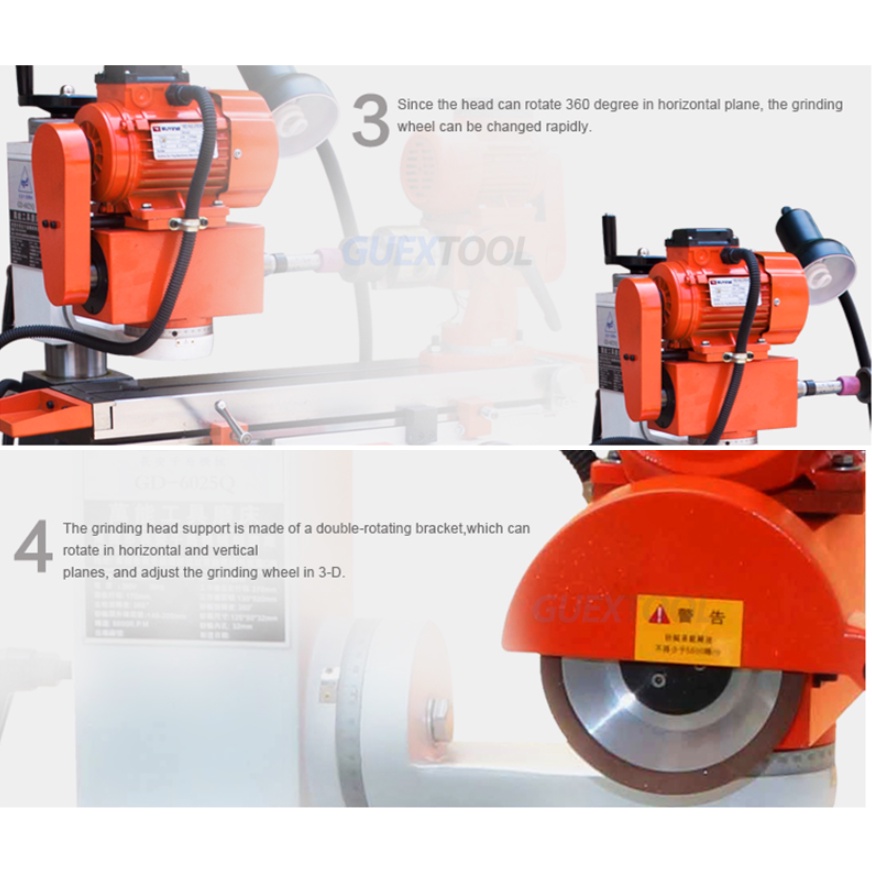

2. The motor can rotate 360° to increase the mechanical function and grinding range.
3. Various grinding accessories can be installed to complete the grinding of various tools.
4. Easy to set up.
5. Simple operation.
6. The grinding is accurate and fast.
