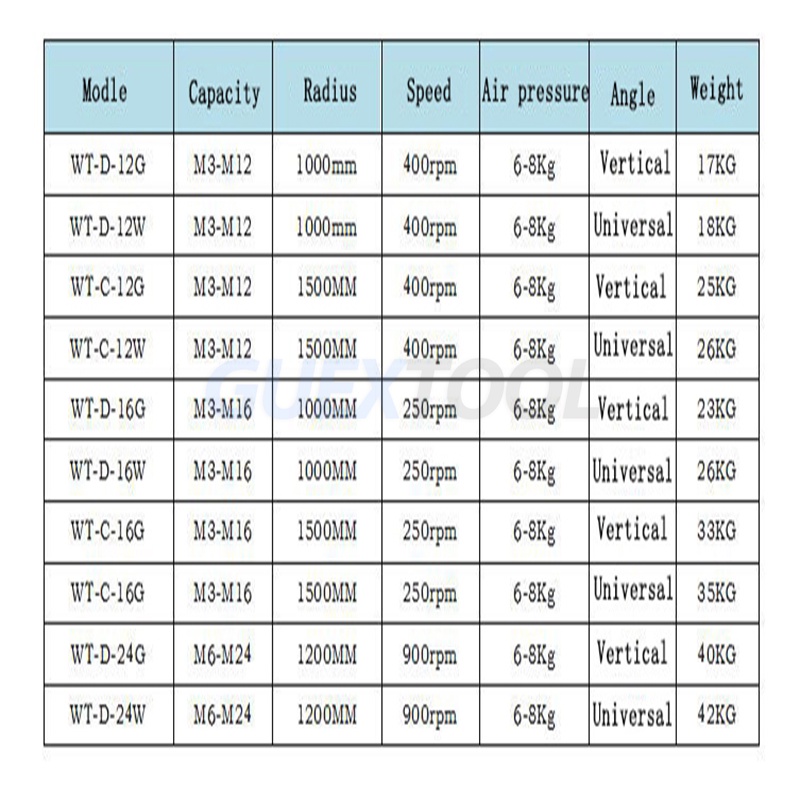

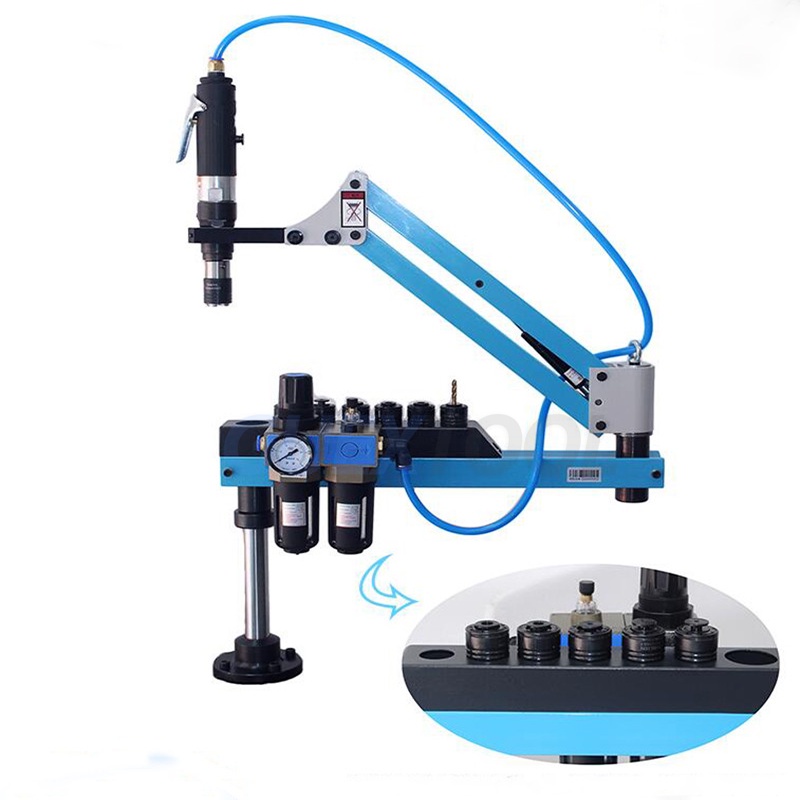

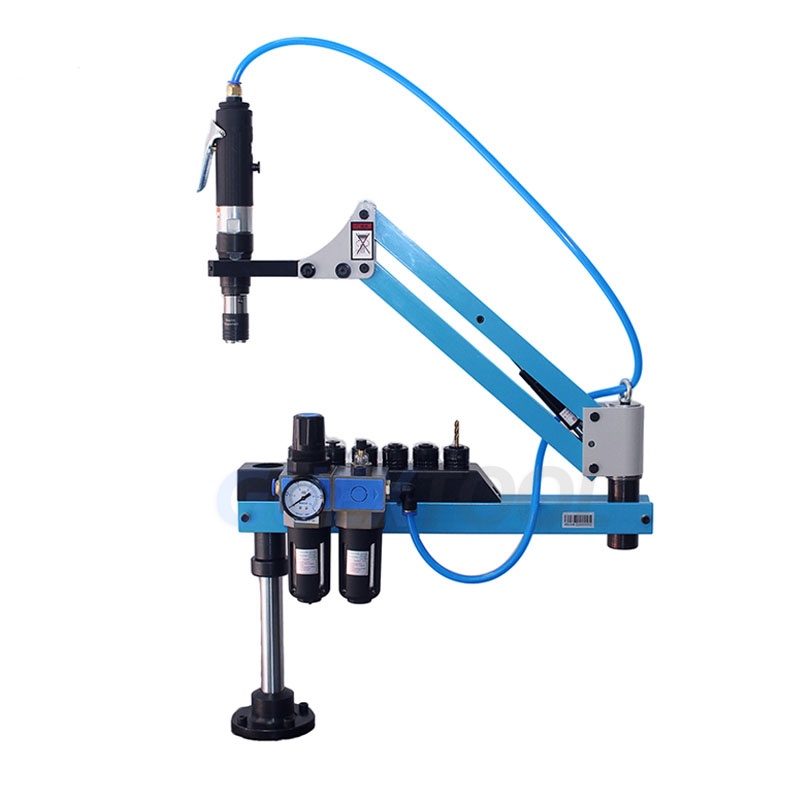

Product Name: Pneumatic Tapping Machine
Model: WT-D-12G
Tapping ability: M3-M12

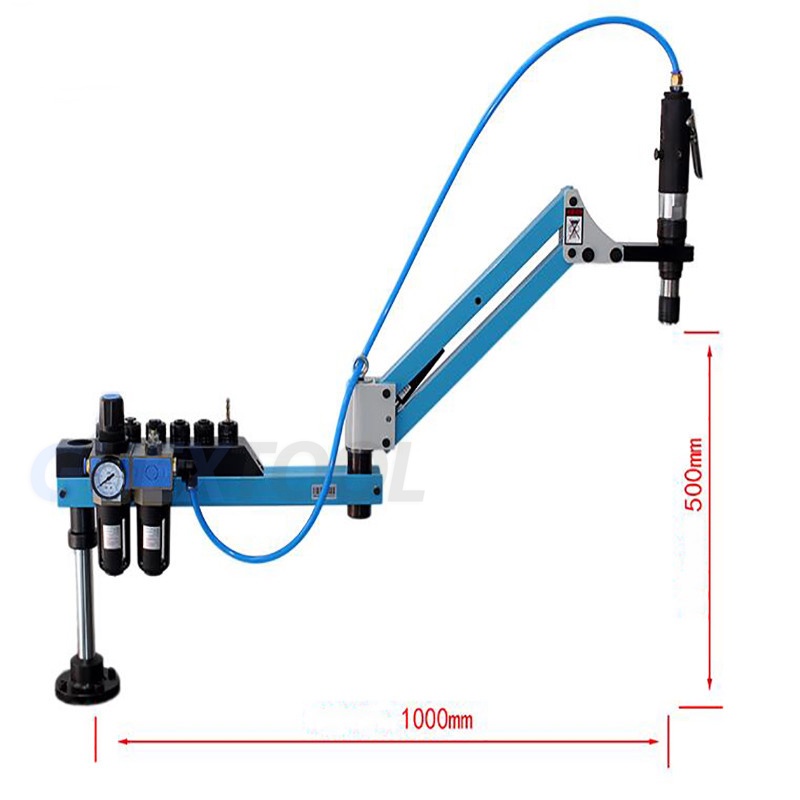

Working radius: 1000mm
No-load speed: 400rpm
Working pressure: 6-8KG
Tapping angle: vertical
Weight: 17KG
Aggregate function:
1. New patented product, driven by compressed air, safe, fast and efficient.
2. Average pressure and volume (5-8kg/cm2), high torque output.
3. It can seal threads of various steel, iron, copper, aluminum and plastic materials. Disconnecting cables is not easy.
4. The box body is equipped with an overload protection device, with less wire strike damage and high tooth precision.
5. Simple operation: Manual motor, align the hole position, long press the start button to start hitting the ball, touch the desired depth, and long press the exit button to complete a hitting operation.
7. The heaviest work content does not require positioning or mobile devices, and the universal headgear can be easily made.
8. The positioning is fast, the cutting speed is fast, and the output is increased.
9. For through holes or blind holes, the tap is not particularly broken. When tapping blind holes, tap the pneumatic tapper cylinder to secure the pliers.
Automatic sliding, protect the tap head, high precision tap, ensure high precision touch.
prevention
1. For safe use, please read the instruction manual and operate the machine in accordance with the safety instructions to avoid accidental damage caused by misoperation.
2. When using it correctly, please place it in a flat position, do not place it in a high place, so as not to degrade and affect the function of the part.
3. The rubber base is placed on corrosive chemicals so as not to affect the company's machines.
4. Do a good job of cleaning each time to maintain the service life of the mechanic, especially the two grinding holes are the most important. If not cleaned, the parts will wear out and affect the grinding accuracy.
5. The normal use of the machine is within the one-year warranty of the motor, excluding scrapped parts and grinding wheels.
Second, the operation of the air motor
1. Press the front air motor, the motor turns the "trigger"; at the same time, click the "reverse button" on the back of the air motor; go out.

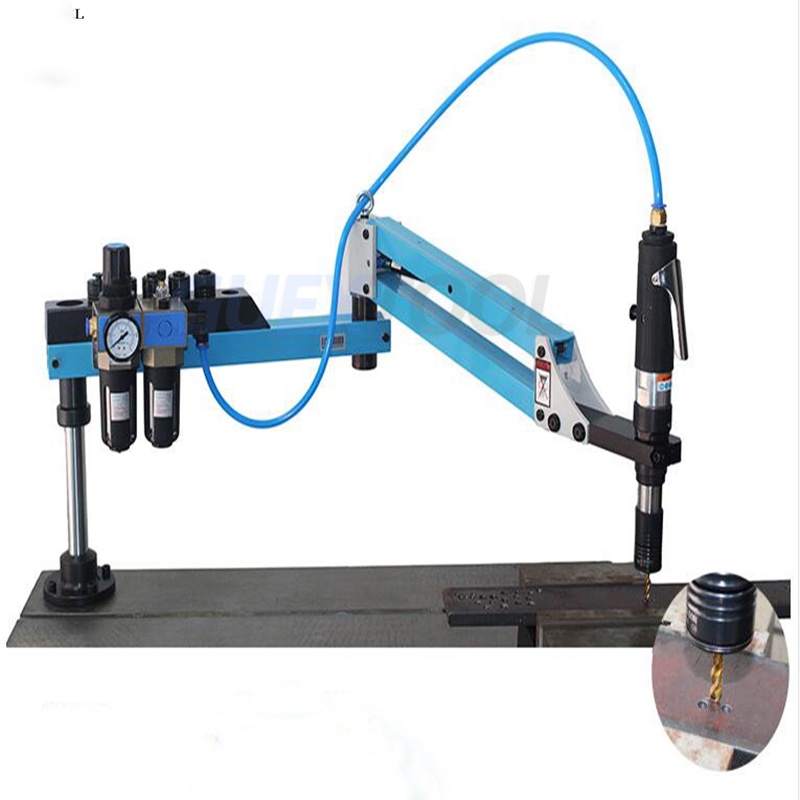

2. The parallel arm can be easily moved to the tapping position, without using force downward, tapping, just like the lead screw in and out of the screw hole, the resistance is very small.

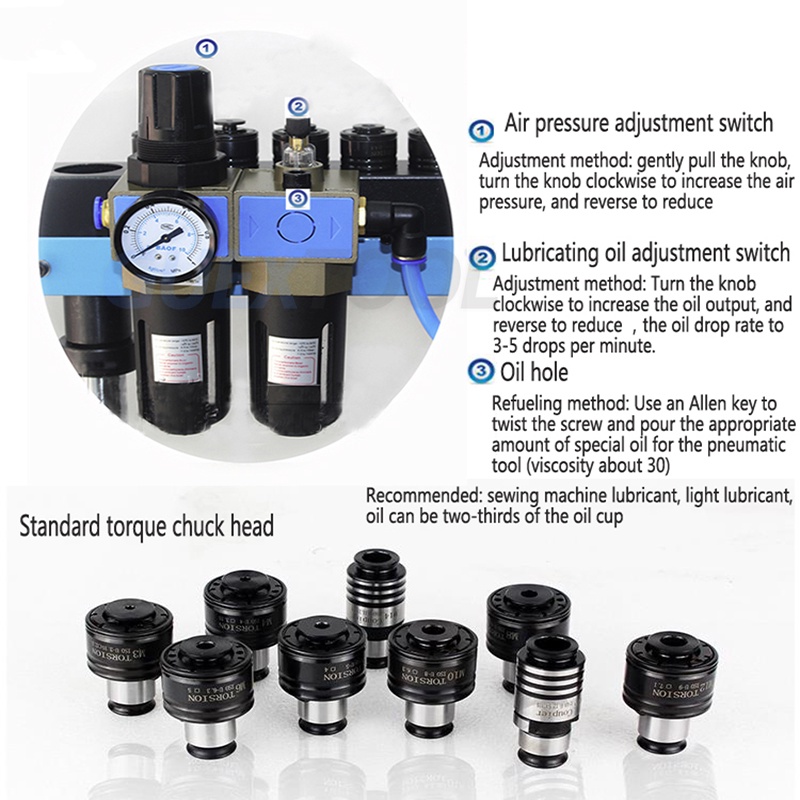

3. Air requirements:
1. The intake pipe should be 3/8 inches or more than 10mm, and the length should not exceed 10m.
2. Stop pressure 4-8kg.
3. If the top quick-drip motor has just been wetted with exhaust oil, set the speed of the air three-drip oil section to 3-5 drops per minute.
5. Pneumatic tools for oil (viscosity above 30); suggestion: sewing machine lubricating oil, light oil.
appendix
1 set of shelves
1 air motor
Air source processor 1 set
Chuck twist 6
1 torque wrench
1 air tube
