Model: 0.005mm
Concentricity: 0.005mm
Roller clamping range length: 22-100mm
Hardness: HRC58-62°
Weight: 6.3kg
Roller material: sus440
Diameter of roller clamping range: 1.5-25mm
Roller yaw accuracy: 5um, clamping accuracy 5um. (Length 30MM)

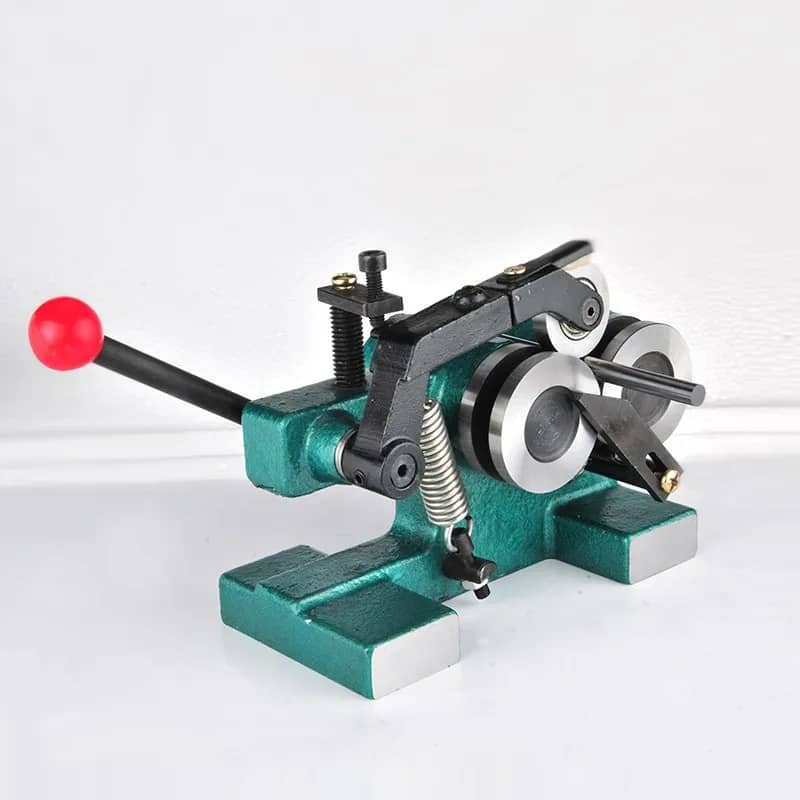

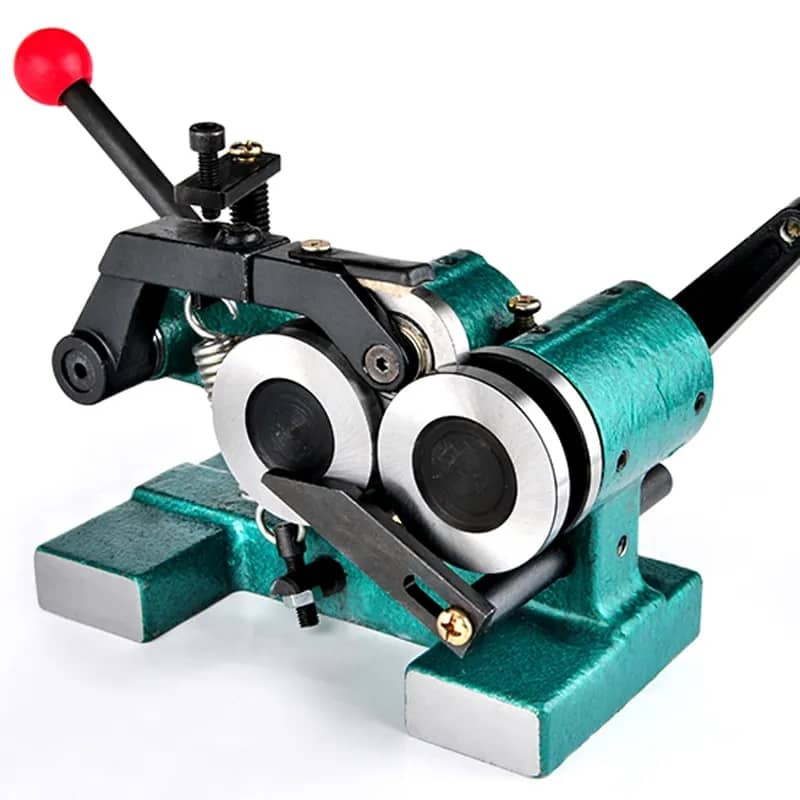

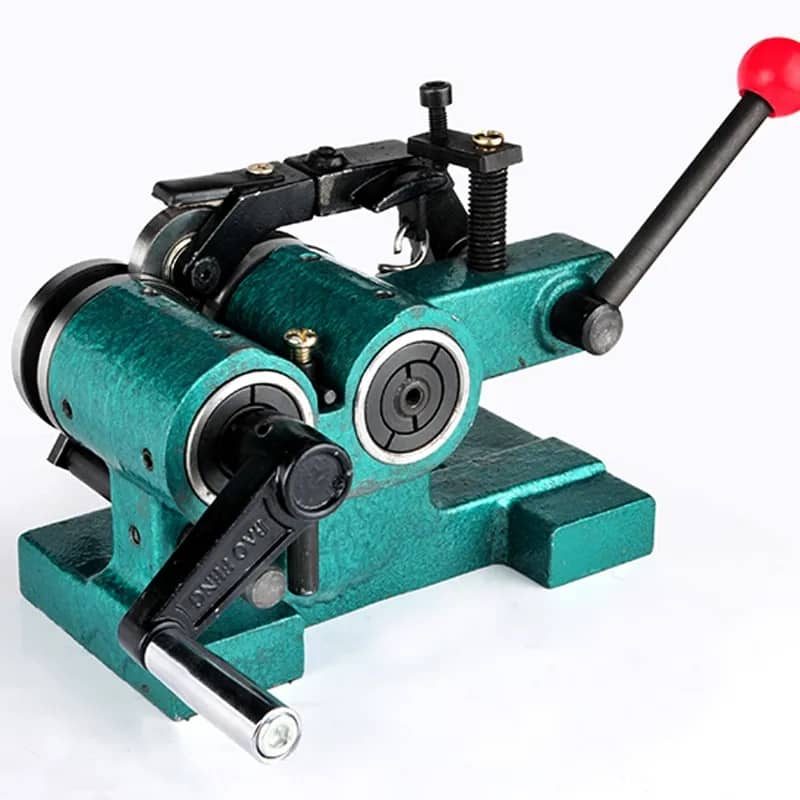

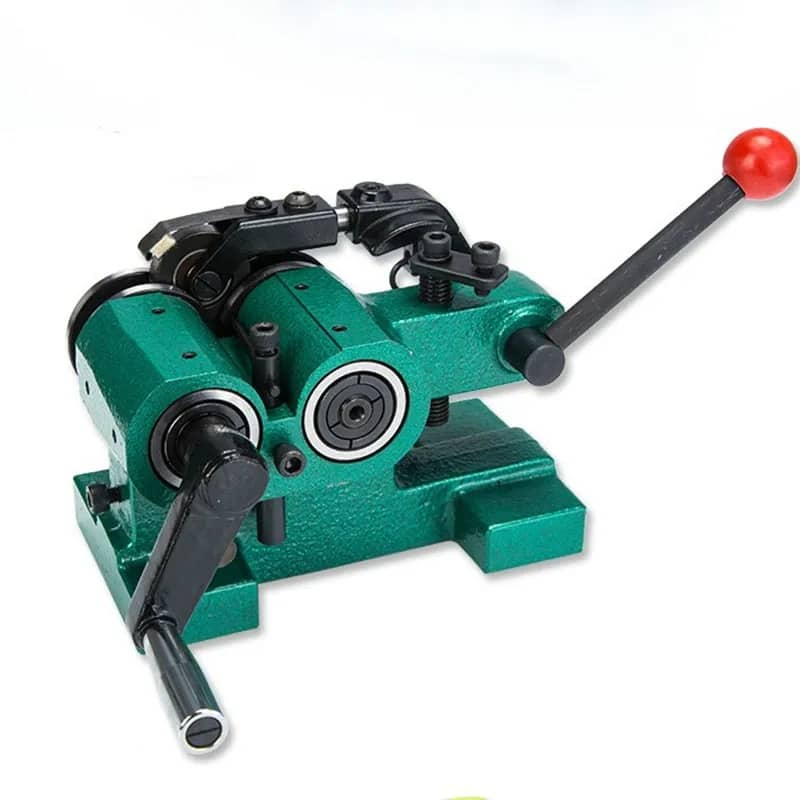

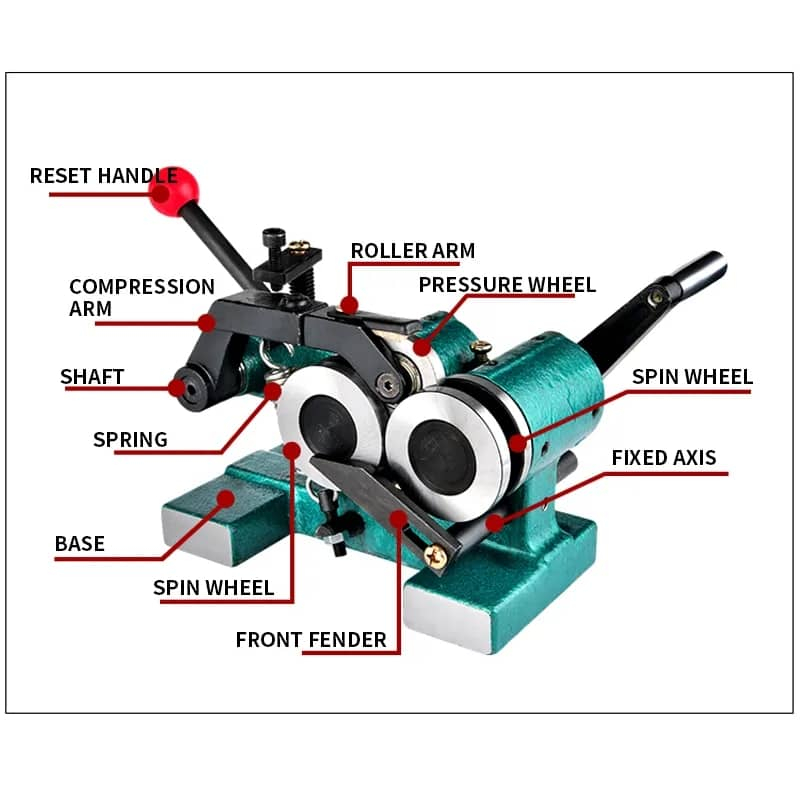

Product introduction: The punch grinder is installed on the grinder, rounds the punch, and automatically grinds the concentric circle without any adjustment.

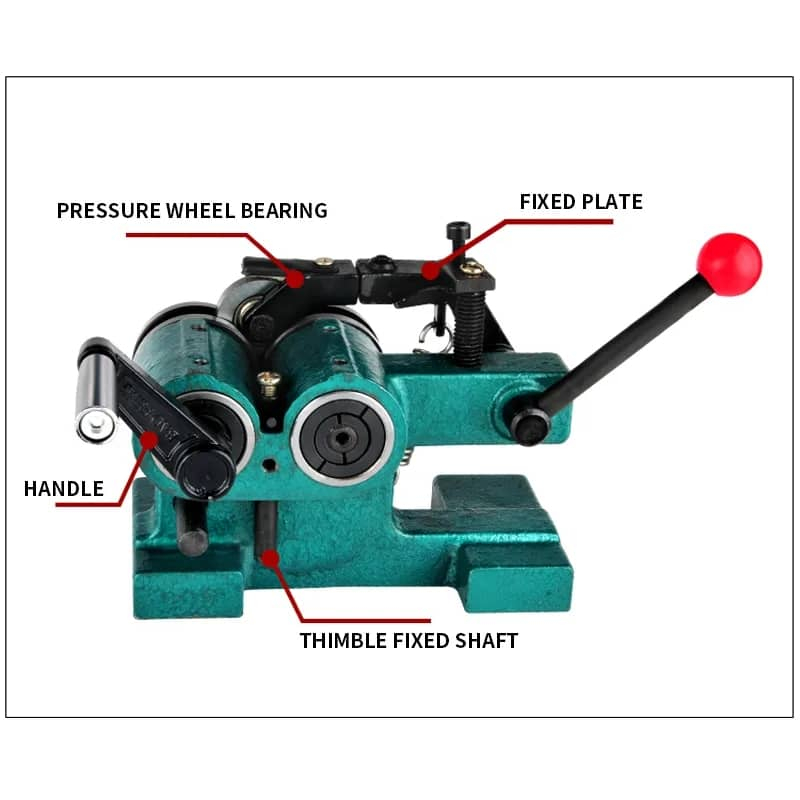

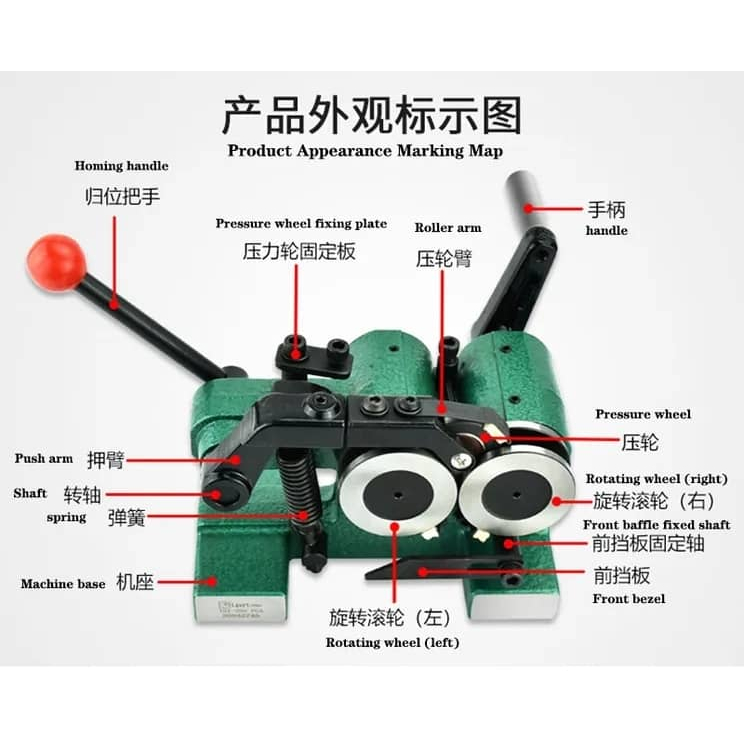

The left and right direction of the rotating roller can be adjusted to make the workpiece advance or retreat before grinding. The pressing screw on the pressing arm can adjust the pressure to match different sizes of punches, making it process stable.
Punch grinders (grinders) are used in various surface grinders. Precise precision grinding available for twin roll designs with simple pressure rolls.
It does not require a calibration center. The workpiece is placed between two rollers during clamping. Concentric circles can be obtained.
feature:
1. Punch grinder Manual punch grinder, used in conjunction with a surface grinder, with a simple pressure roller for easy and tight grinding.
2. The design of double rollers eliminates the trouble of aligning the center; when the workpiece is clamped between the two rollers during processing, concentric circles can be easily obtained. The left and right directions of the rotating rollers can be adjusted to advance or retreat the workpiece before grinding.
3. The compression screw on the additional compression arm is adjustable
