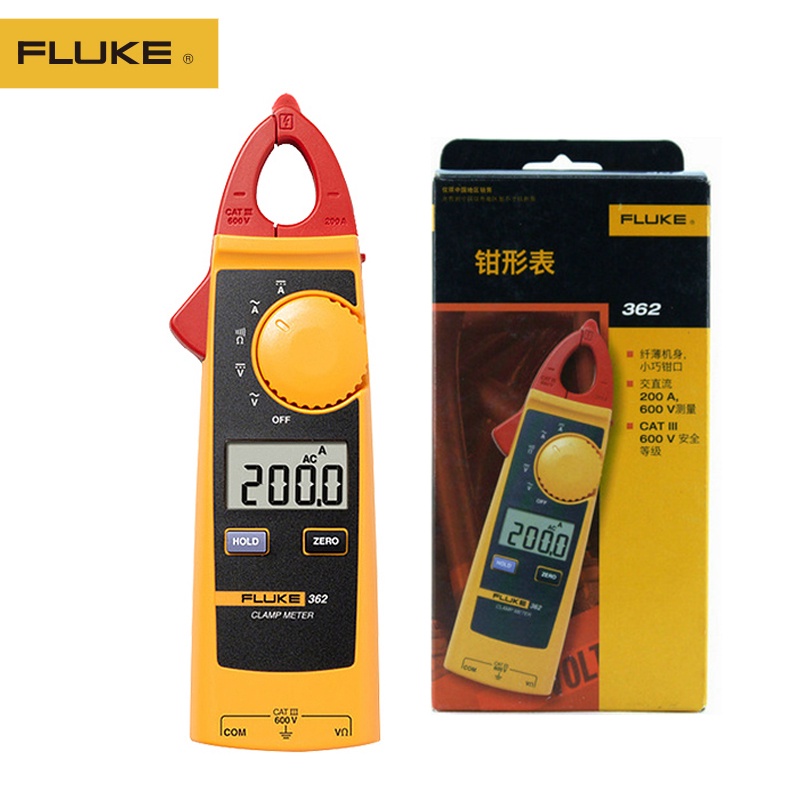

Original Fluke 362 AC and DC Clamp High Precision Universal Ammeter Clamp Meter Multi-Function Precision Clamp Meter
Features:
1.VoltAlert trade; technology for non-contact voltage detection;
2.AutoVolt automatic AC/DC voltage selection;
3.Low input impedance: helps prevent false readings due to ghost voltage;
4.Large white LED backlight to work in poorly lit areas
5.True-rms for accurate measurements on non-linear loads
6. Measures 10 A (20 A overload for 30-seconds)
7. Resistance, continuity, frequency and capacitance
8. Min/Max/Average with elapsed time to record signal fluctuations
9. Compact ergonomic design for one-handed operation
10. Compatible with optional magnetic hanger (ToolPak trade;) for hands-free operation
11. CAT III 600 V safety rated
Specifications: Fluke 362 Clamp Meter:
Range
Resolution
Accuracy
AC current
200A
0.1A
2% plusmn; 5 digits (45-65Hz) 2.5% plusmn; 5 digits (65-400Hz)
DC current
200A
0.1A
2% plusmn; 5 digits
AC voltage
600 V
0.1 V
1.5% plusmn; 5 digits (45-400Hz)
DC voltage
600 V
0.1 V
1% plusmn; 5 digits
Resistance
300/3000 Omega;
0.1/1 Omega;
1% plusmn; 5 digits
Continuity
lt;=70 Omega;
General Specifications
Size (LxWxH) mm
205 times; 60 times; 22
Clamp opening
18 mm
Weight
196 g
Safety rating
CAT III 600 V
Warranty
2 years
Package Included:

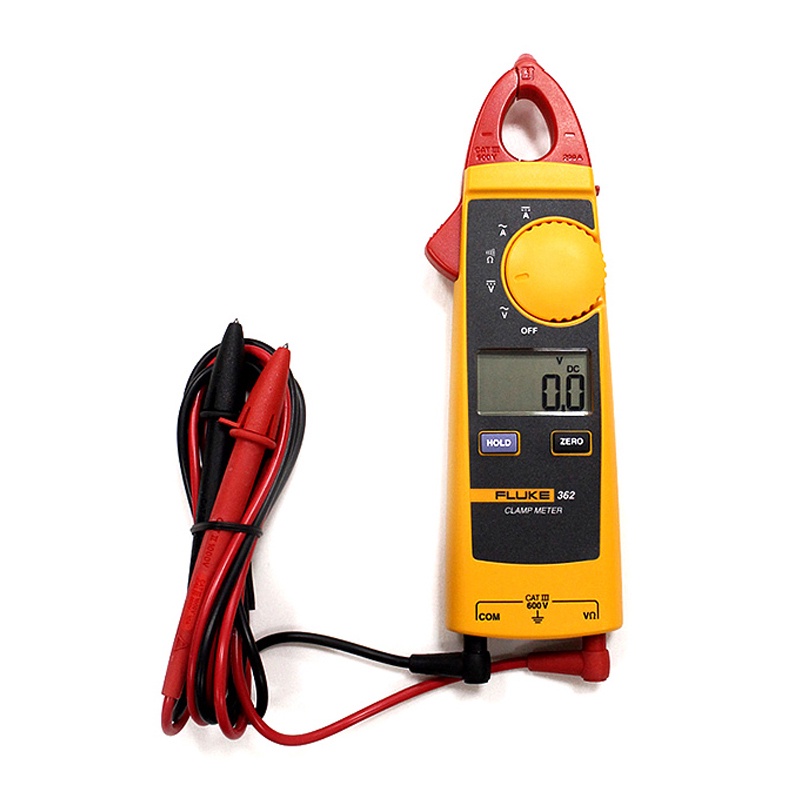

1 x Digital Multimeter
1 x Test Leads
1 x User's manual
