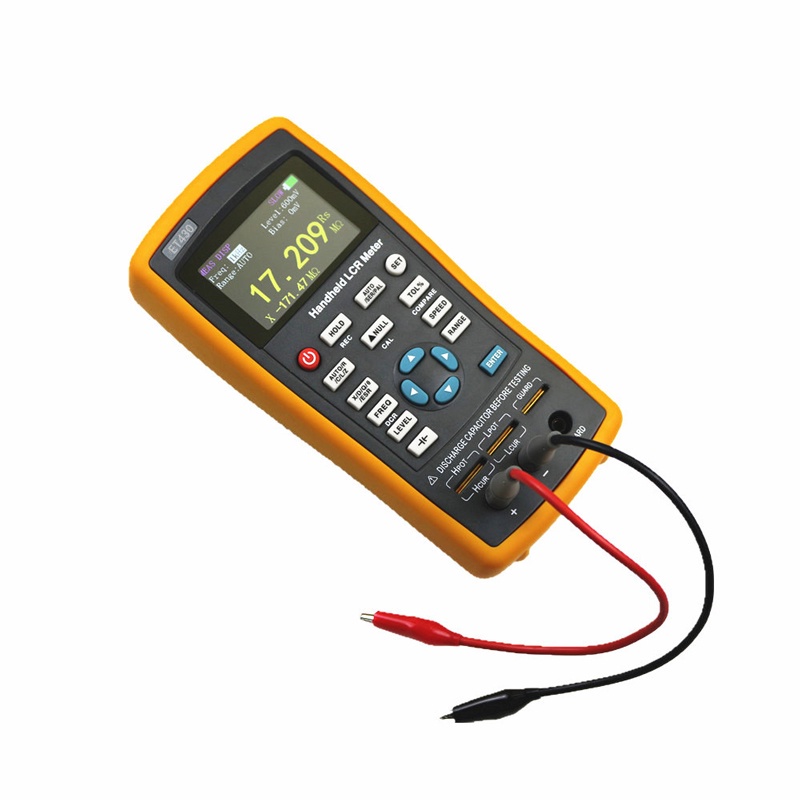

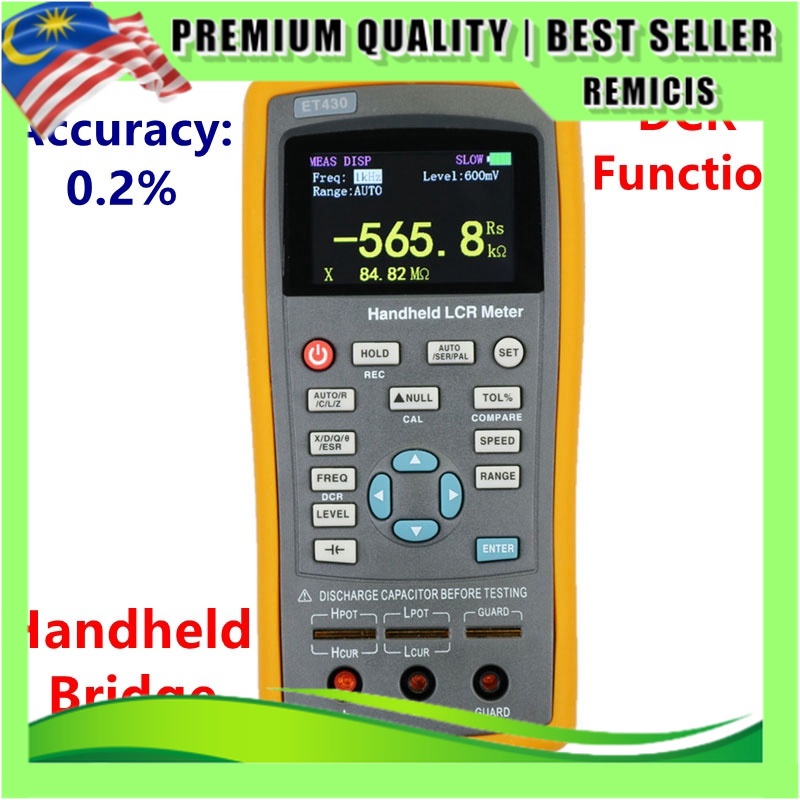

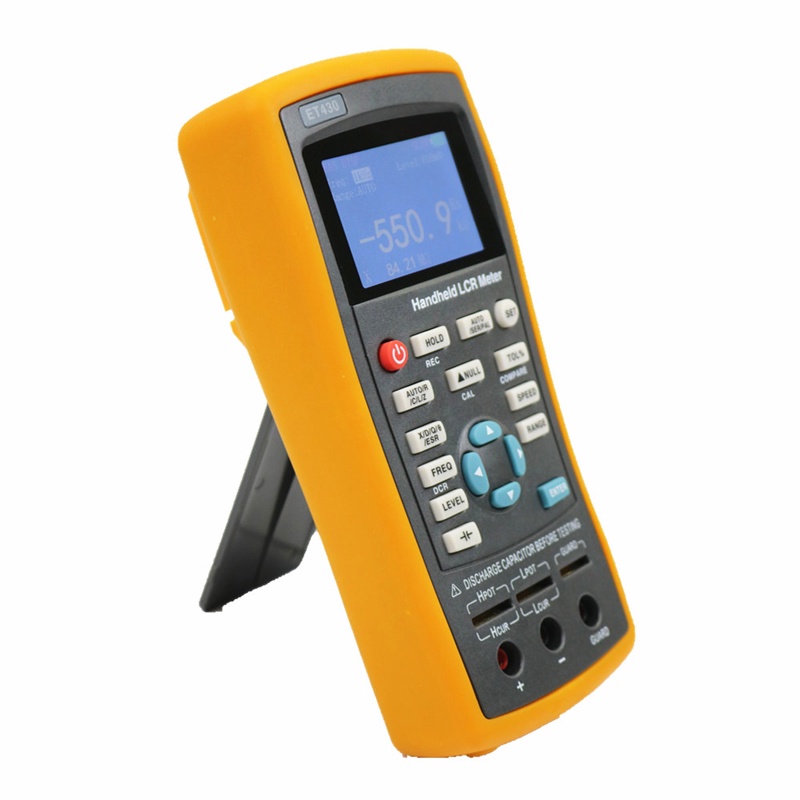

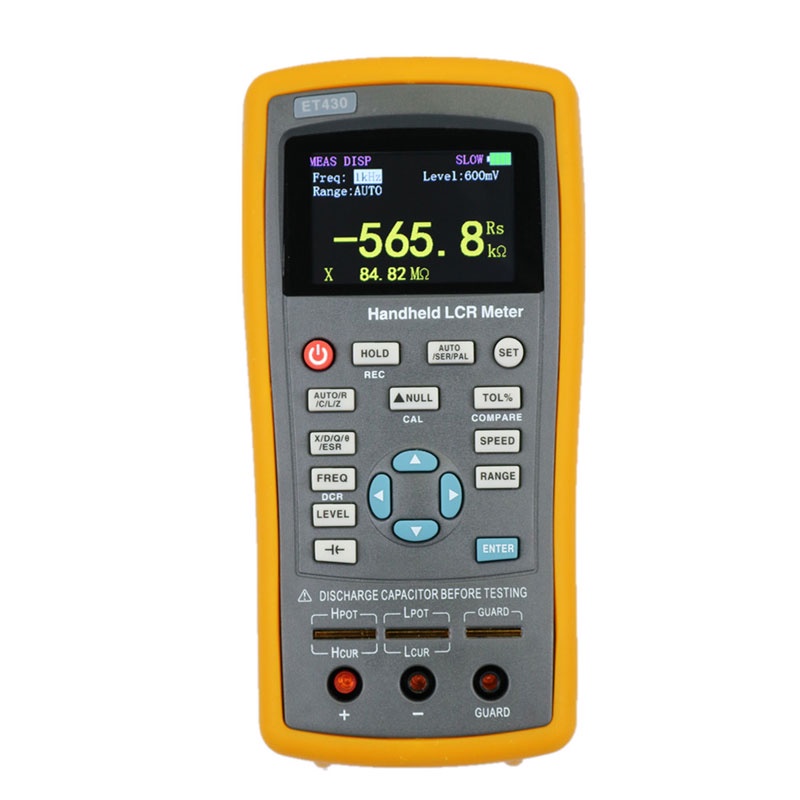

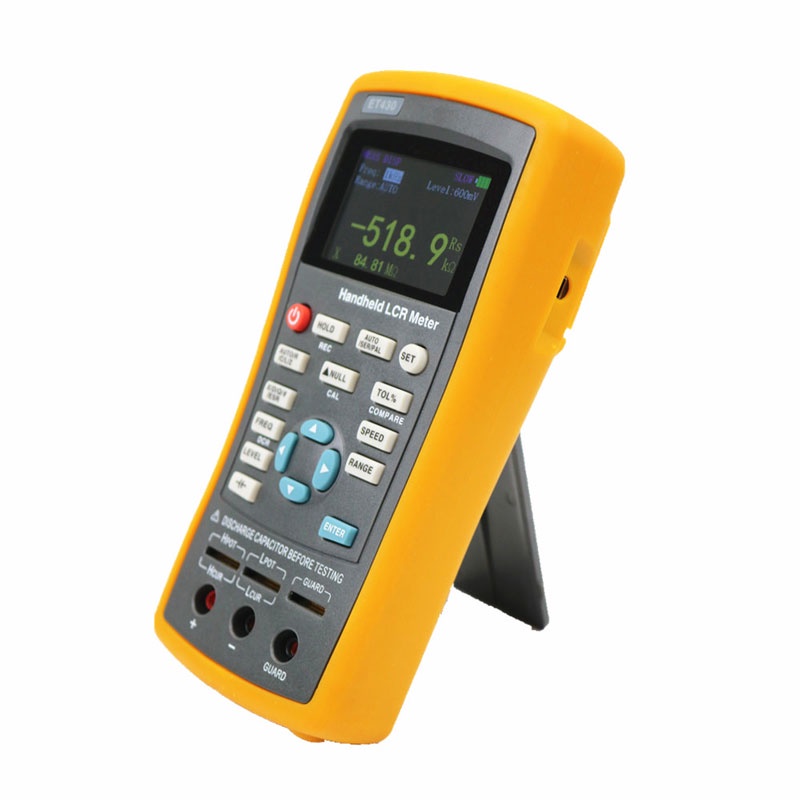

New ET432 Multifunction LCR Handheld Bridge Meter DCR Function High Precision Capacitance Resistance Meter 2.8-Inch Color Screen
ET43 series handheld bridge ET431 features 2.8´ TFT display screen, easy key operation and USB communication. Its high capacity lithium battery ensures long run. It can measure comprehensive parameters, and supports for screening and deviation measurement, with continuously adjustable output frequency. The basic accuracy reaches 0.2%.
Product Characteristics：
◆ Measurable frequency up to 100k Hz, continuously adjustable at a step of 1 Hz.
◆ Measurement of DC resistance and electrolytic capacitor supported
◆ Internal bias voltage output (10 mV-500 mV)
◆ Automatic identification of measured component
◆ Support for screening and deviation measurement
◆ 2.8´ TFT display screen, a 4 1/2 digit display
◆ USB communication interface
◆ Power supply by high capacity lithium battery
◆ Support for SCPI protocol
◆ System configuration available for setting of language, buzzer and display brightness
◆ Basic measuring accuracy 0.2%, adjustable measuring speed
◆ Manual and automatic range
◆ Open circuit and short circuit calibration
◆ Multiple testing ports
Packing List :

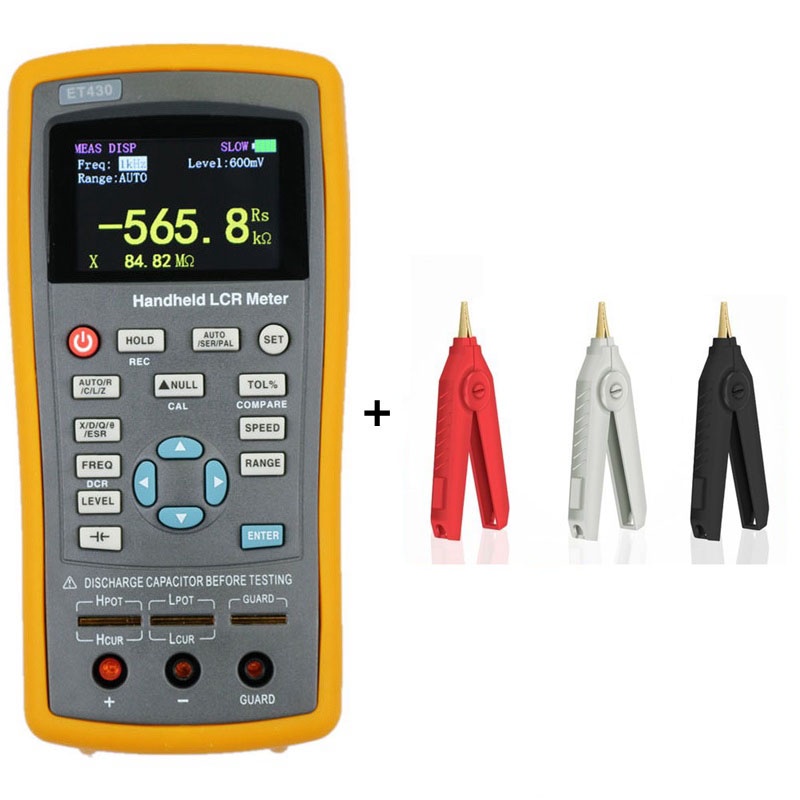

1 x ET432（Optional Kelvin clips, SMD clips） ;
1 x guidance manual
1 x CD
1 x Mini-USB communication cable
1 x AC power adapter
1 x A pair of red / black rubber plugs –alligator clip test line
1 x Short-circuit bar
1 x A pair of test clip ( Standard)
(The clip is used as a machine accessory and is not sold separately.)
Warranty :
We provide 12 months Warranty for our products! If you are not satisfied with our products when you receive them, please return it within 10 days for a replacement or money back. Please contact me before you return it.If item is defective in 1 months for product reason, we will send you a replaced spare part without extra charger, or offer refund after we receive the defective item. If item is defective after 1 months, you can still send it back to us. We will fix it for you free of charge and send it back to you, but you should bear the shipping cost.
