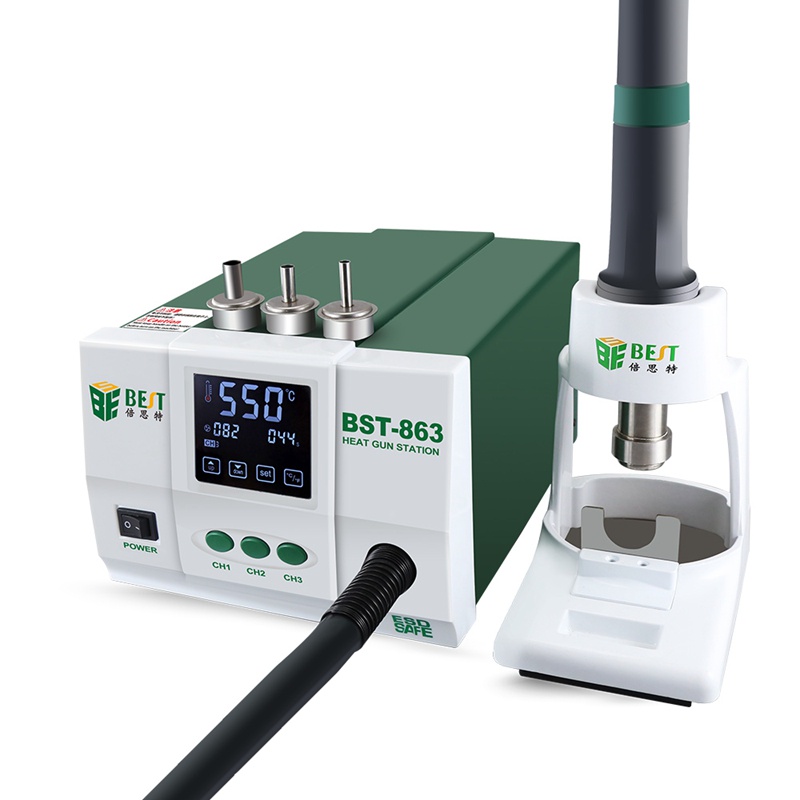

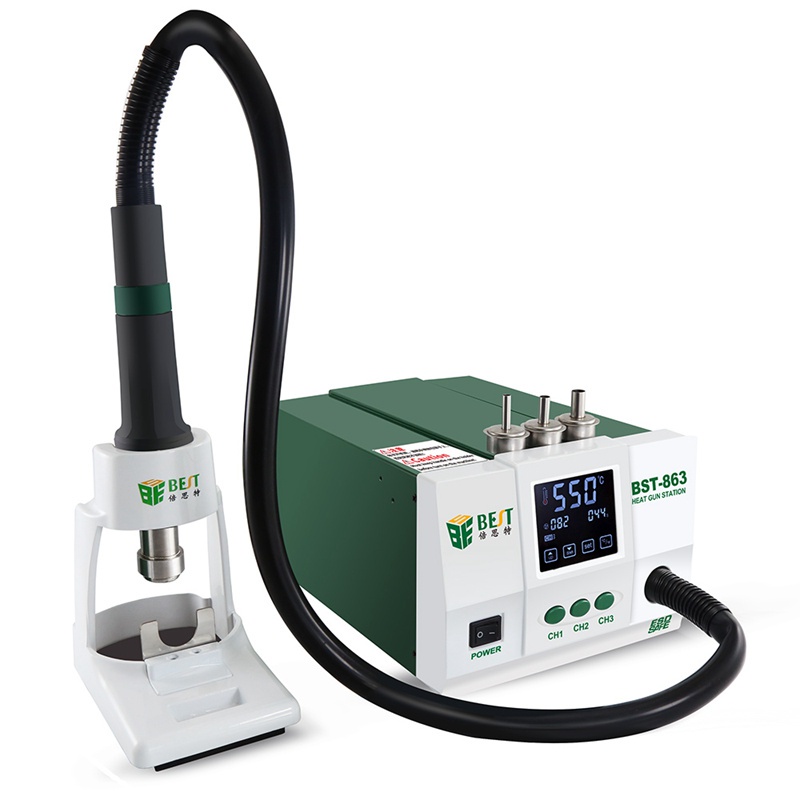

New BST-863 Intelligent Desoldering Station Hot Air Gun Touch Screen Control Constant Temperature LCD Display SMD Rework Station
◆ Suitable for a various kind of soldering or desoldering ( removals ) purposes of the electronic components such as: SOIC, CHIP, QFP, PLCC, BGA, SMD, etc. ( especially mobile phone’s cable board. );
◆ Used for heat shrinking, drying, paint removal, adhesion and glue removal, thawing, preheating, disinfection, plastic welding, etc;
◆ Adjustable air volume, suitable for small volume or large volume heating situations;
◆ Suitable for unleaded hot air soldering situation.

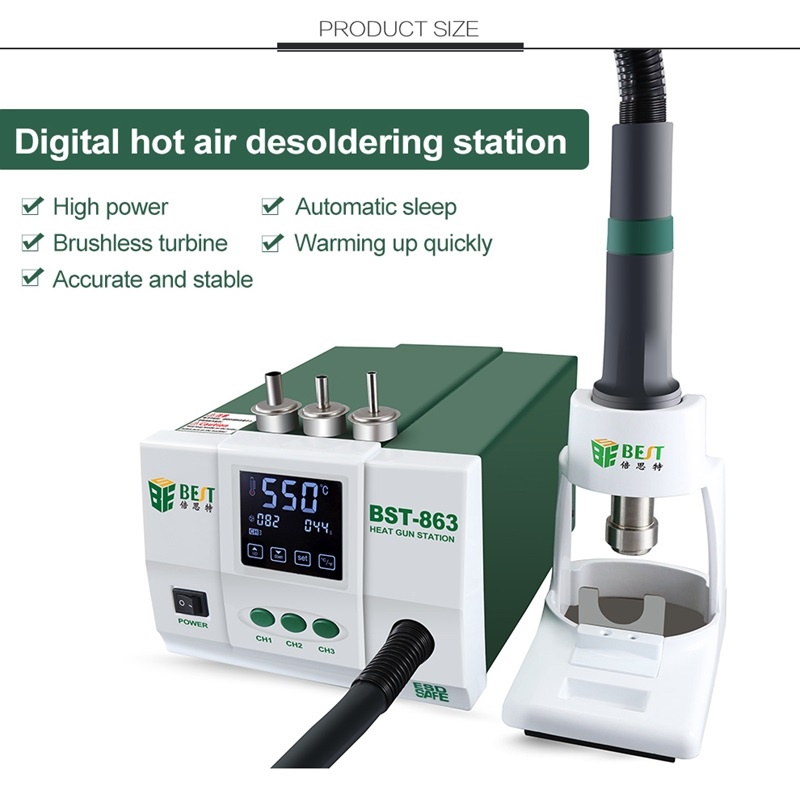

Product Features :
◆ This product belongs to industrial product of heating air to heat and solder components or board.

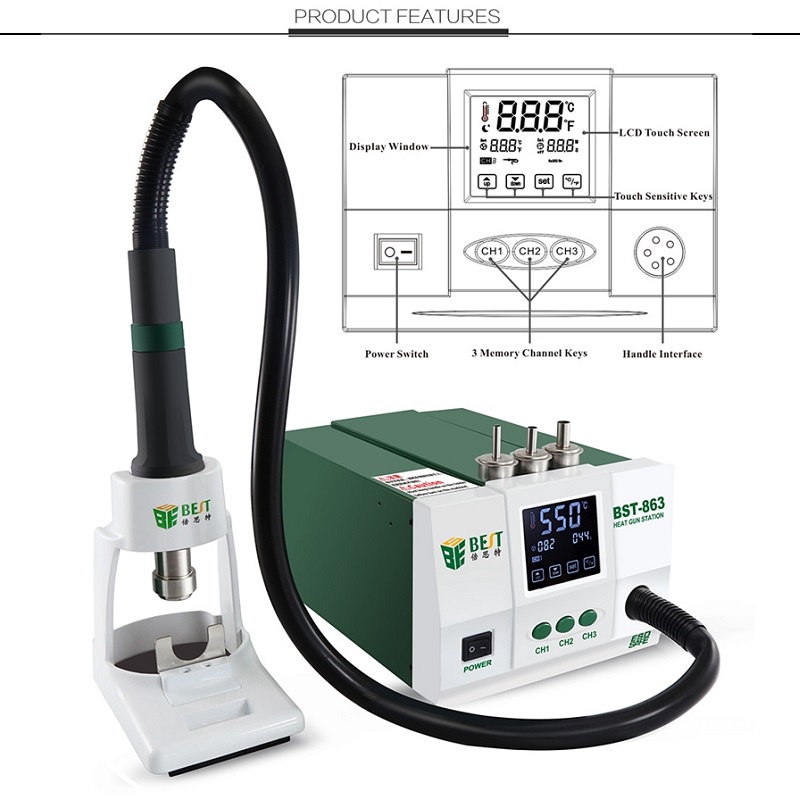

◆ With 3 memory channels: CH1, CH2 and CH3. After custom setting the temperature, air volume and time of each channel, can be conveniently switched to the temperature required for heating and soldering components by one key.
◆ The handle has sensor switch, as long as hold the handle, the system can quickly enter into the working mode. If the handle released into the handle frame, the handle will cool down to below 100℃ and enter standby mode, real-time and easy operation.
◆ The parameters also can be custom set in the sleep state.

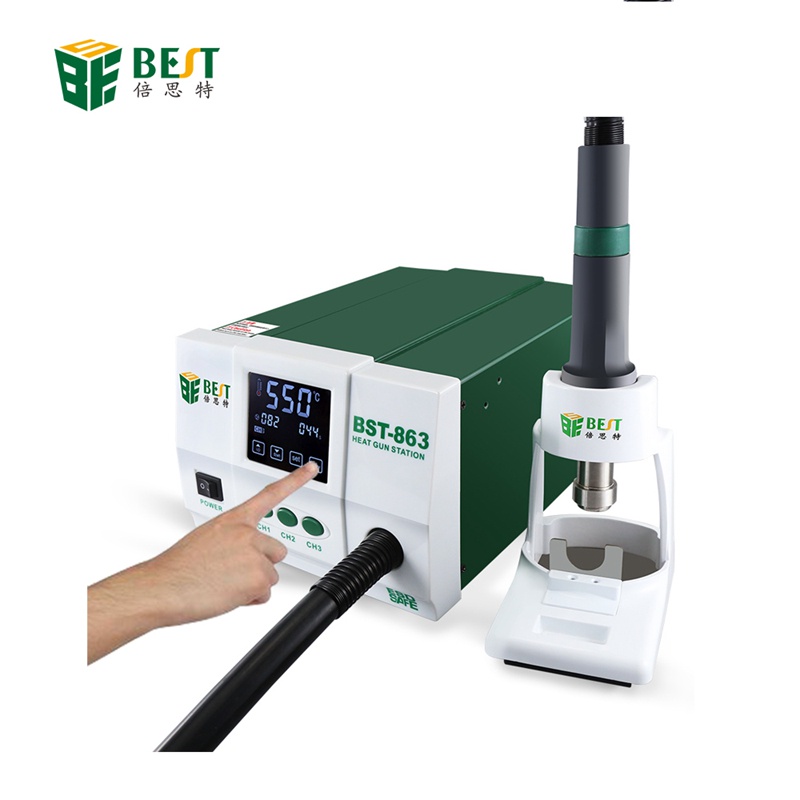

◆ Sensors closed loop, Zero-crossing triggering microcomputer temperature control, LCD touch screen. Heating up rapidly, the temperature accuracy and stability, without effect of the air flow, and truly achieved lead-free solder.
◆ Using variable frequency brushless fan, adjustable air flow, large range, and can adapt to a variety of purposes.
◆ The system has automatic air cooling function, to extend life and protect the hot air gun.

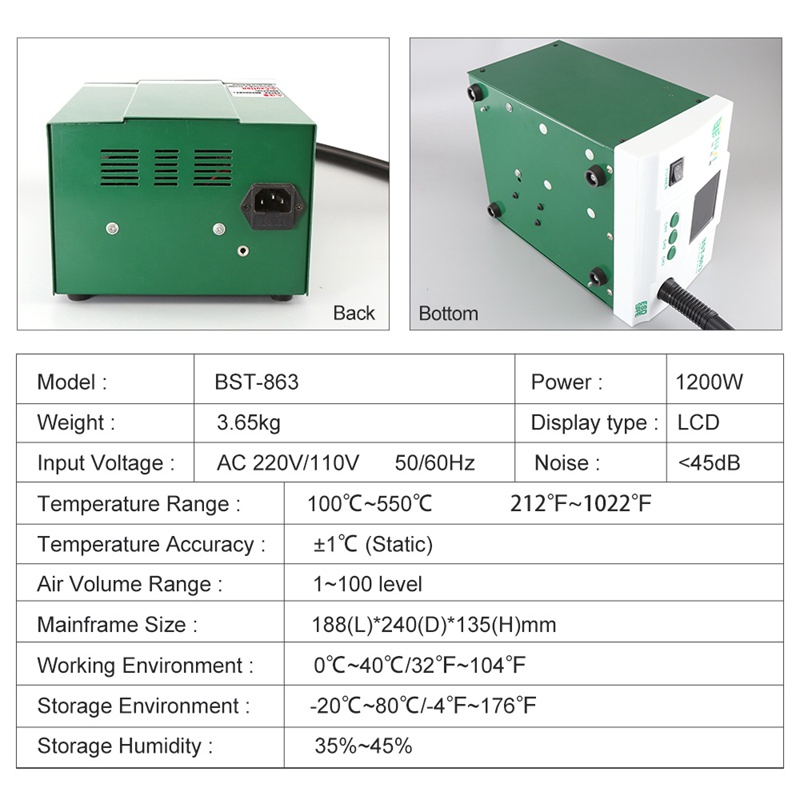

Specification Parameter :
◆ Model ：BST-863,
◆ Power : 1200W；
◆ Input Voltage : AC 220V/110V 50/60Hz；
◆ Temperature Range : 100℃~550℃/212℉~999℉;
◆ Display type ：LCD screen;
◆ Temperature Accuracy ：±1℃ (Static);
◆ Air Volume Range : 1~100 Level;
◆ Noise : <45dB ;

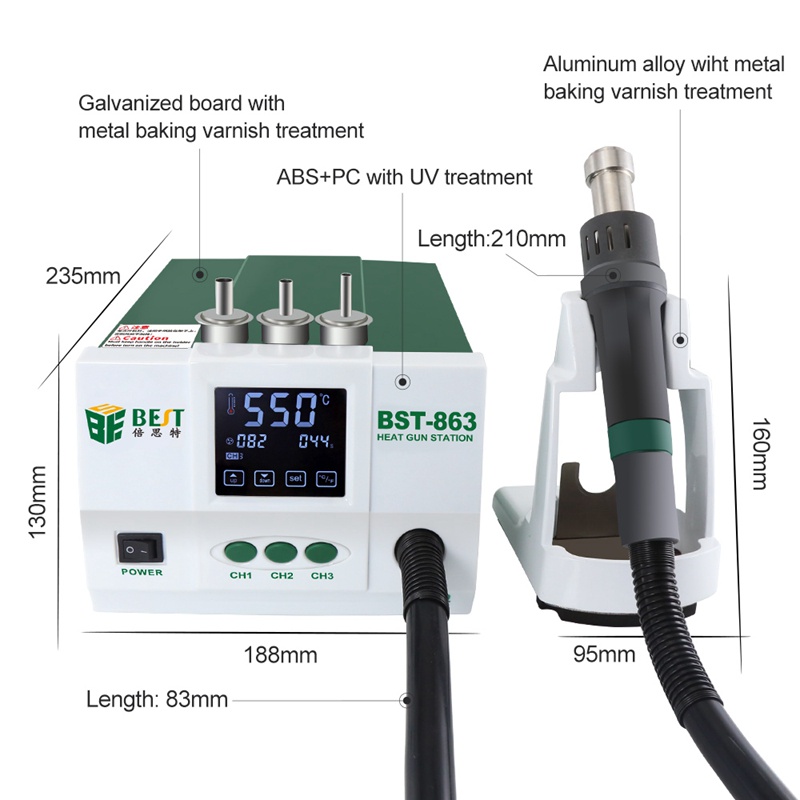

◆ Mainframe Size : 188(L)*240(D)*135(H)mm;
◆ Weight ：3.65kg;
◆ Working Environment ：0℃~40℃/32℉~104℉ ;
◆ Storage Environment ： -20℃~80℃/-4℉~176℉;
◆ Storage Humidity ：35%~45%.

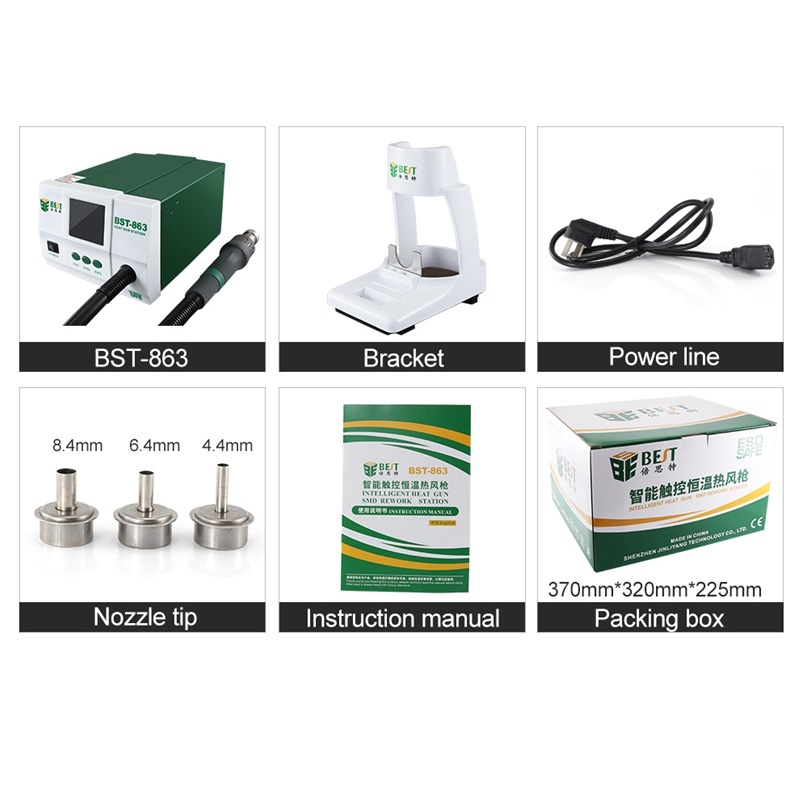

Packing List :
◆ 1 * BST-863 Host;
◆ 3 * Wind gun nozzle tip(4.4mm,6.4mm,8.4mm);
◆ 1 * Bracket;
◆ 1 * Power line;
◆ 1 * Instruction manual.
Warranty :
We provide 12 months Warranty for our products! If you are not satisfied with our products when you receive them, please return it within 10 days for a replacement or money back. Please contact me before you return it.If item is defective in 1 months for product reason, we will send you a replaced spare part without extra charger, or offer refund after we receive the defective item. If item is defective after 1 months, you can still send it back to us. We will fix it for you free of charge and send it back to you, but you should bear the shipping cost.
