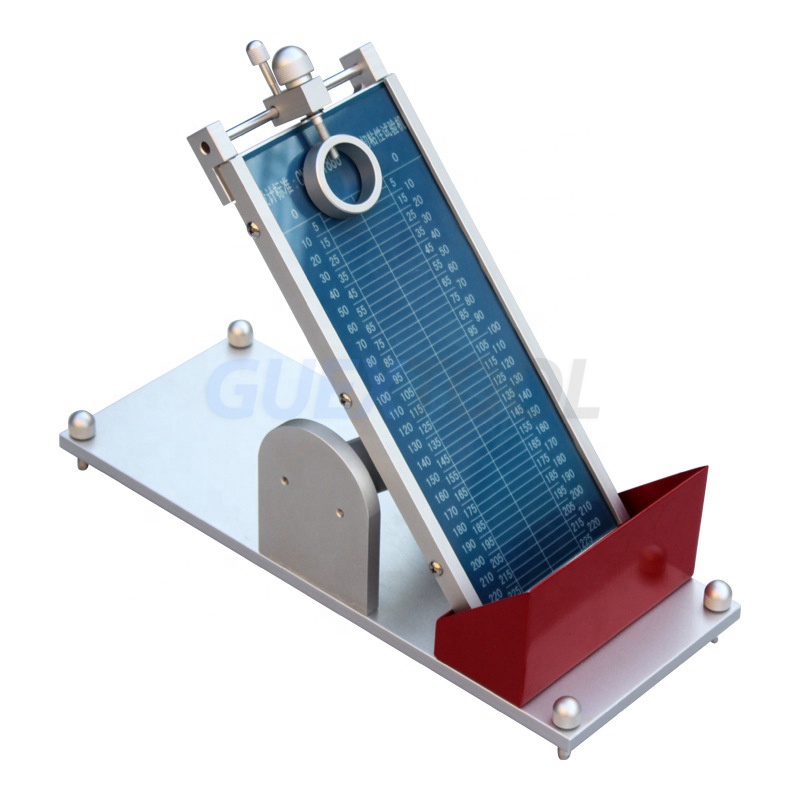

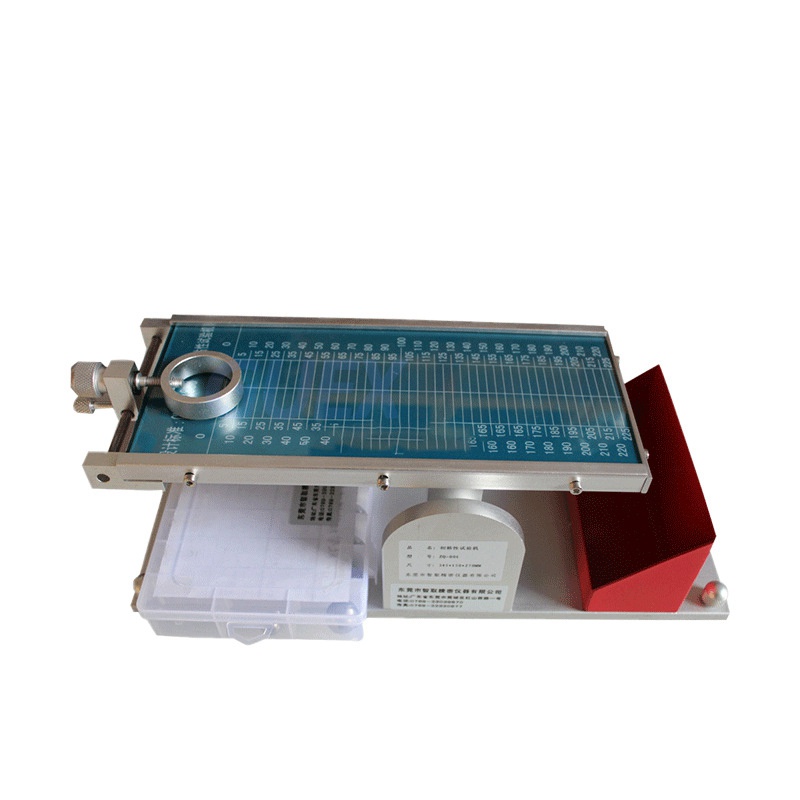

Product name: Tape initial adhesion tester
Model: HG-810
Table width: 110mm

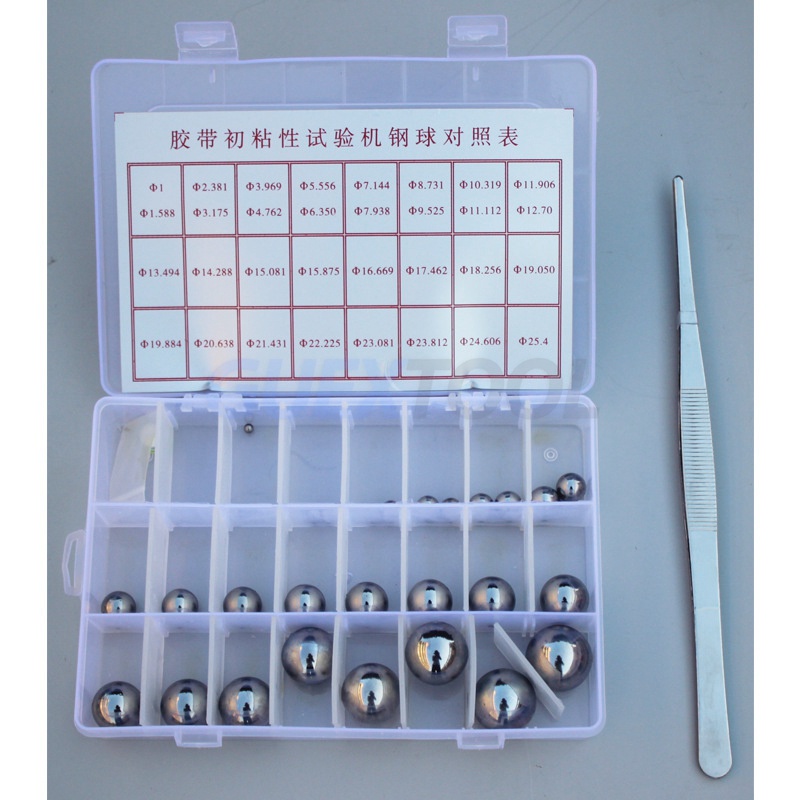

Balls: Bearing Steel
Test area width: 70mm
Tilt angle: 15～45°(adjustable)
Size: 320*140*180mm

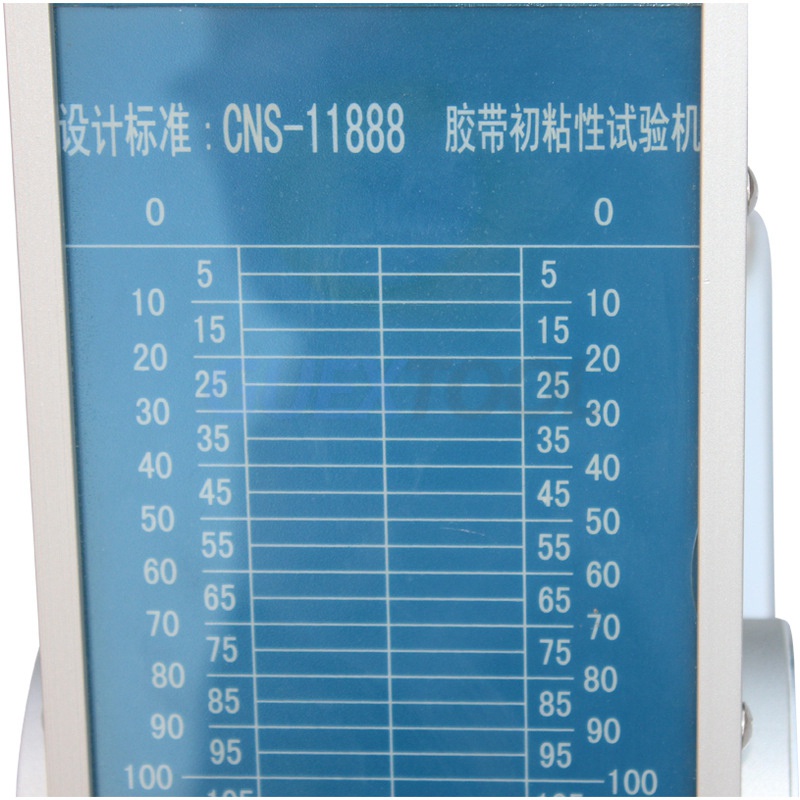

Inclined plate: glass thickness 3mm
Runway: Length 100mm
Weight: about 6kg
Advantage:
1. The fuselage is all aluminum sandblasted, and the appearance is beautiful.
2. Double-sided support design, more durable than single-sided support.
feature:
1. Angled ball test method
2. Test the inclination angle and make corresponding debugging according to the test needs
Test principle:
Angled ball method, through ball and pressure sensitive tape sample surface
The adhesive tape sticks to the ball between micro-pressures that occur when contacting for a short period of time
Operation method:
1. Adjust the vial to the center circle through the base adjusting bolt.
2. Use the angle adjustment knob to fix the tilt plate to 30°.
3. Place the adhesive on the sloped plate with the surface of the sample prepared according to the standard.
4 Cover the lower part of the sample with polyester film and double-sided tape in the specified area and fix it.
5. Put the ball treated as standard into the pay-off device with tweezers, and adjust the position of the pay-off device so that the center of the ball is at the beginning of the roll-off and has rolled over the rail.
6. Gently open the dropper and observe that the experiment reaches the maximum number of balls that can be thrown.
7. Take the ball with the largest number of balls and the convergence of large and small balls, test the two balls on the sample, and confirm the ball with the largest number of balls.
8. According to the official test procedures.
