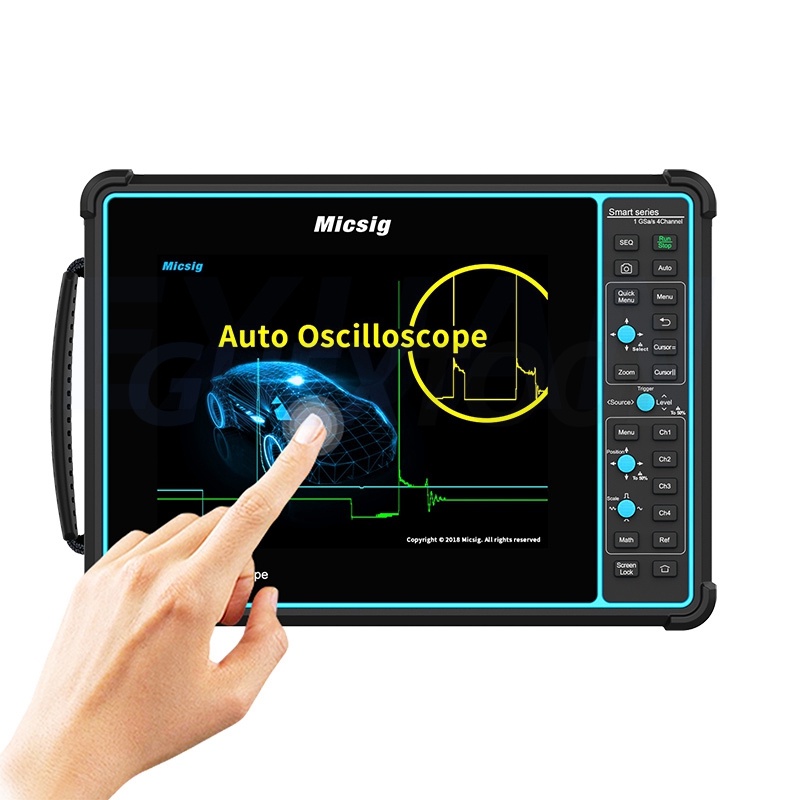

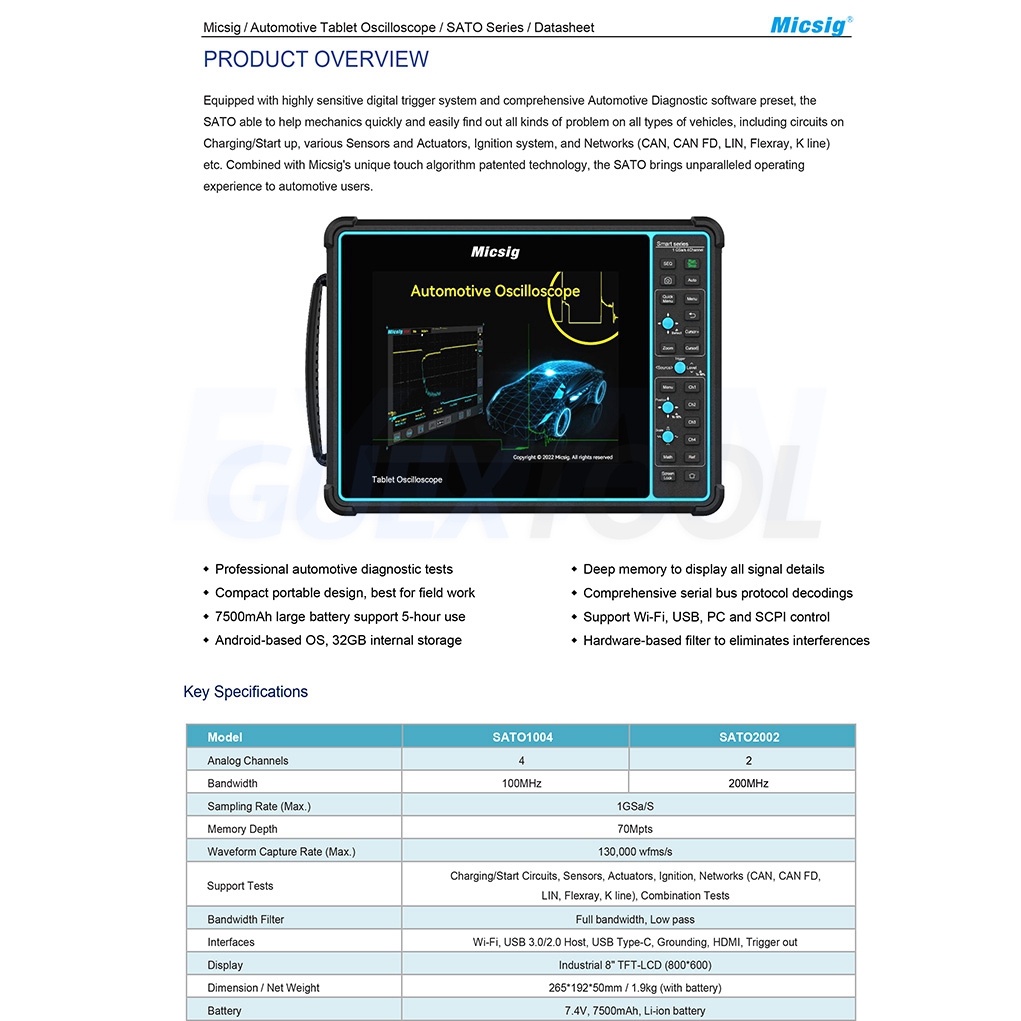

Model:SATO1004
Bandwidth:100MHz
Channels:4
Sampling Rate:1GSa/S (single channel)
Memory Depth:70Mpts (single channel)

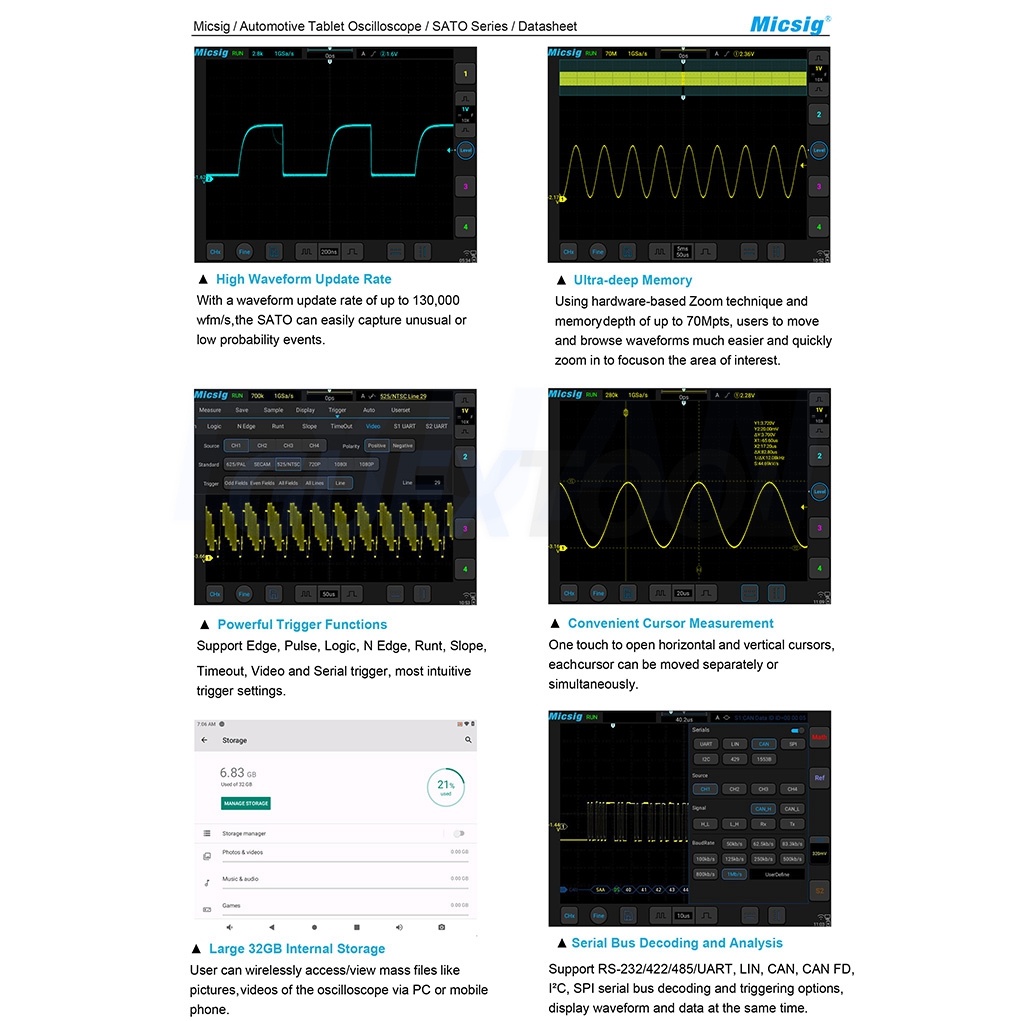

Waveform Capture Rate (Max.):130,000 wfms/s

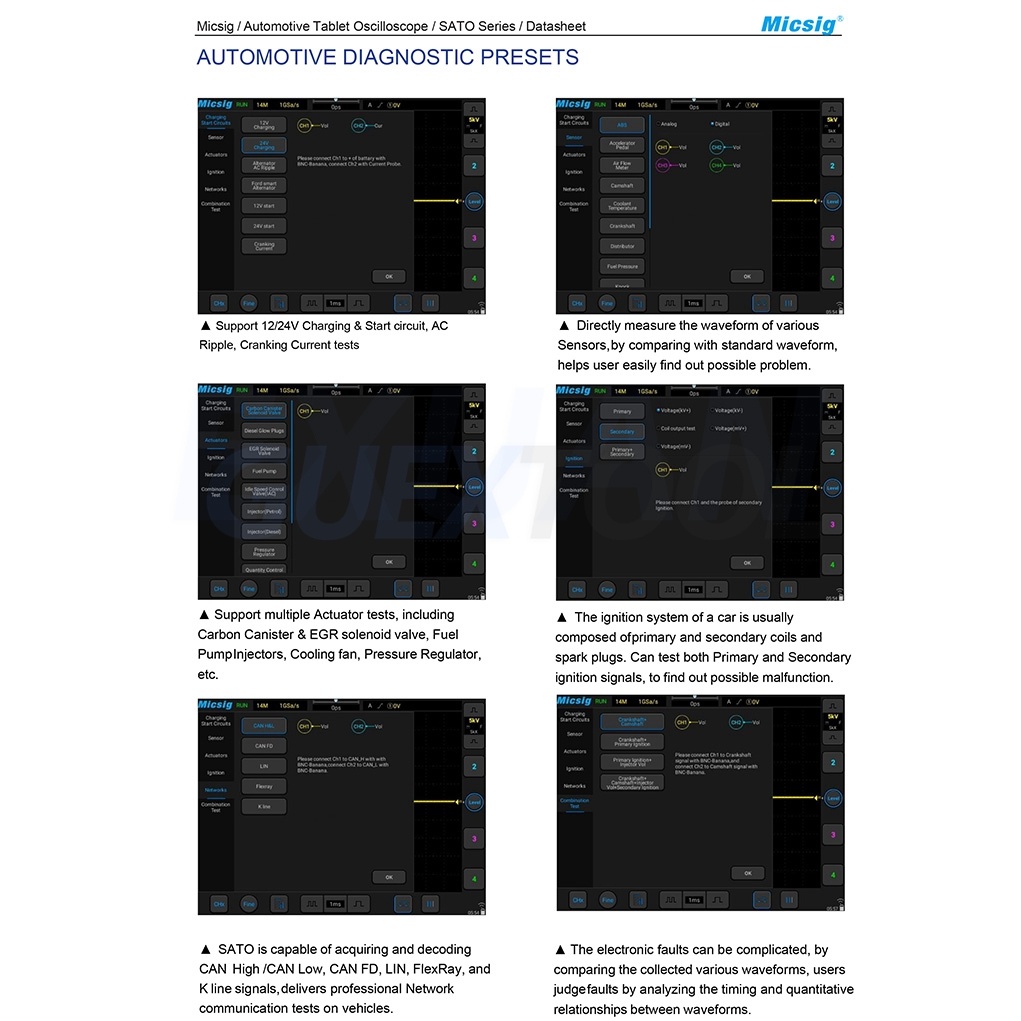

Support Test:Charging & Start circuit, Sensors, Actuators, Ignition, Networks (including CAN, LIN, Flexray, K line, etc.), Combination Tests
Bandwidth Filter:Full bandwidth, Low pass

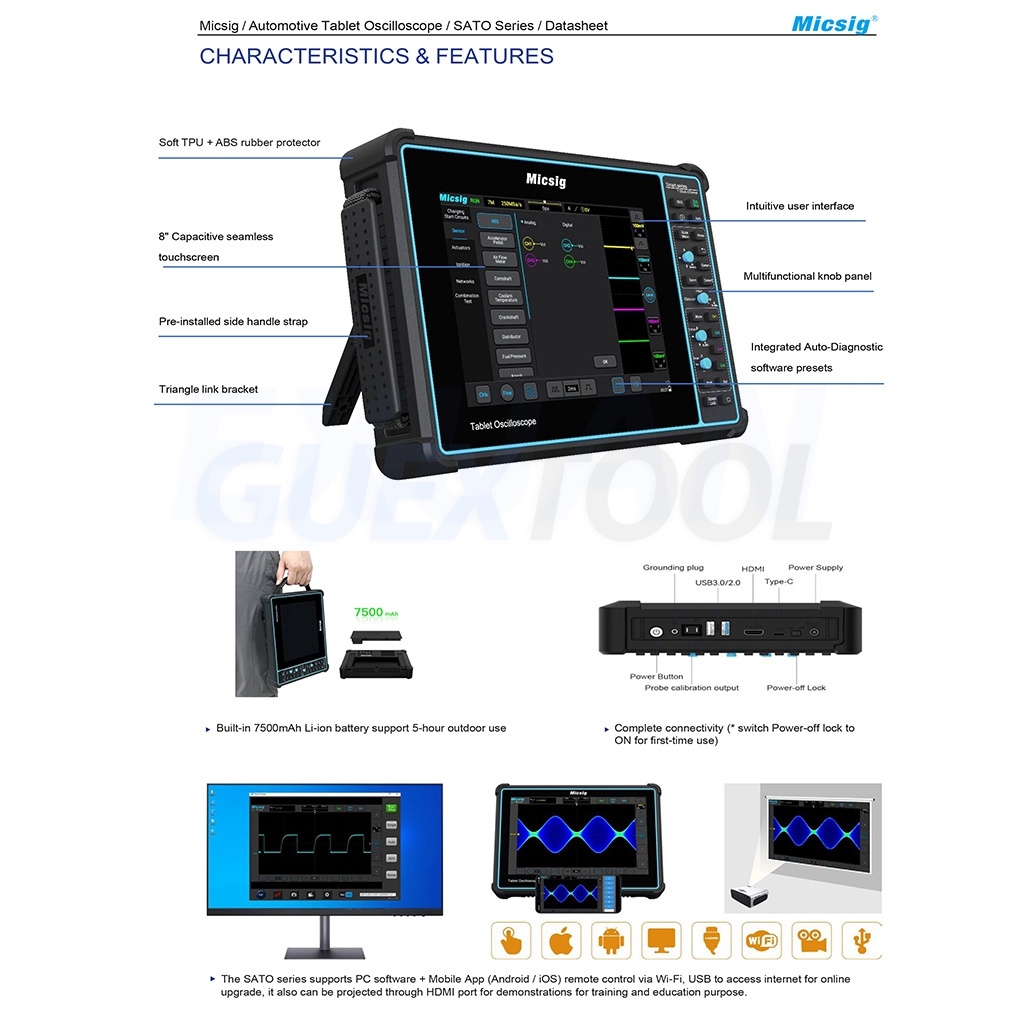

I/O Port:Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out
Display:8" TFT LCD capacitive touch screen, 800*600 pixels, 14*10 grids
Dimension / Net Weight:265*192*50mm /1.9kg (with battery)

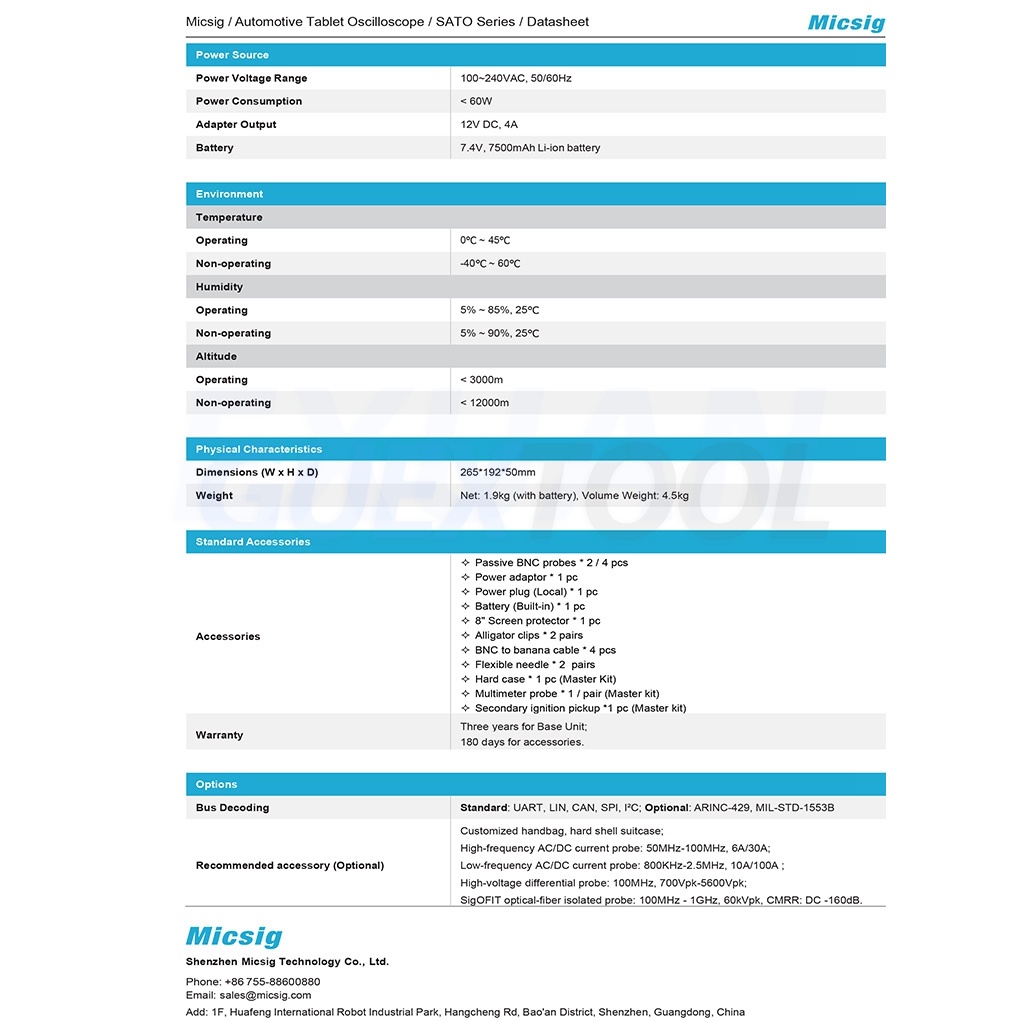

Battery:7.4V, 7500mAh, Li-ion battery
Model:SATO2002
Bandwidth:200MHz
Channels:2
Sampling Rate:1GSa/S (single channel)
Memory Depth:70Mpts (single channel)
Waveform Capture Rate (Max.):130,000 wfms/s
Support Test:Charging & Start circuit, Sensors, Actuators, Ignition, Networks (including CAN, LIN, Flexray, K line, etc.), Combination Tests
Bandwidth Filter:Full bandwidth, Low pass
I/O Port:Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out
Display:8" TFT LCD capacitive touch screen, 800*600 pixels, 14*10 grids
Dimension / Net Weight:265*192*50mm /1.9kg (with battery)
Battery:7.4V, 7500mAh, Li-ion battery
