Main Specifications:
One bend angle <45 °
Flatten the body stroke: ≥ 10mm
Test sample plate (steel, aluminum) Thickness: 0.5 ~ 1.0mm
Pressure plate (steel, aluminum) width: ≤ 100mm
Machine weight: 50kg
Dimensions: 300 * 300 * 190mm
Working principle:
Through the rotation of the left handle, the square bending buckle bending pieces parallel to
the shape of <45 ° angle: turn the right handle, driven by the crank lift mechanism so that the
triangle bending fast rise or fall, the specimen clamping or pressure Flat, form a T-bend.

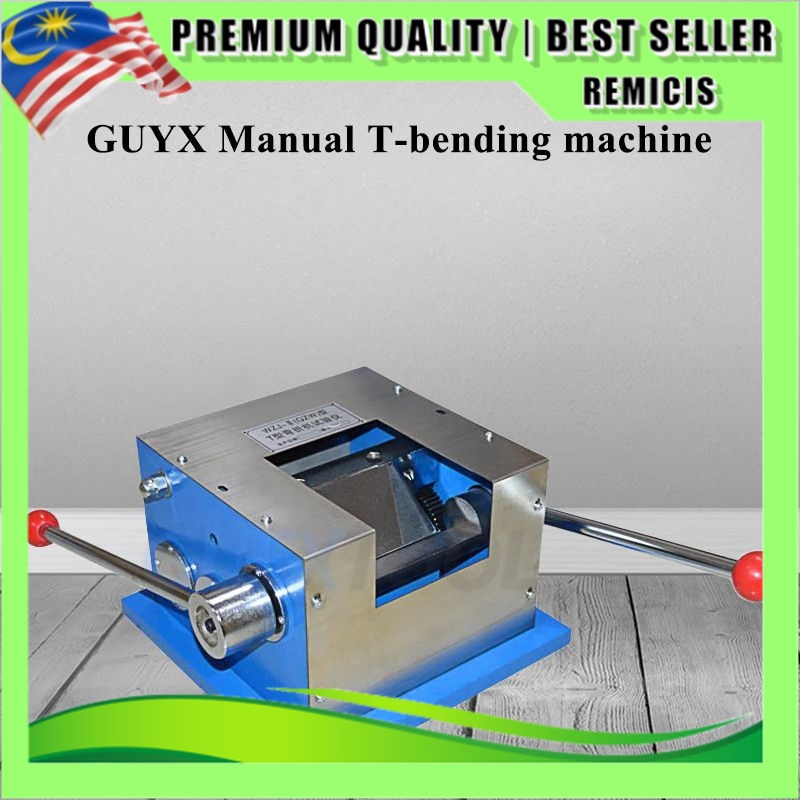

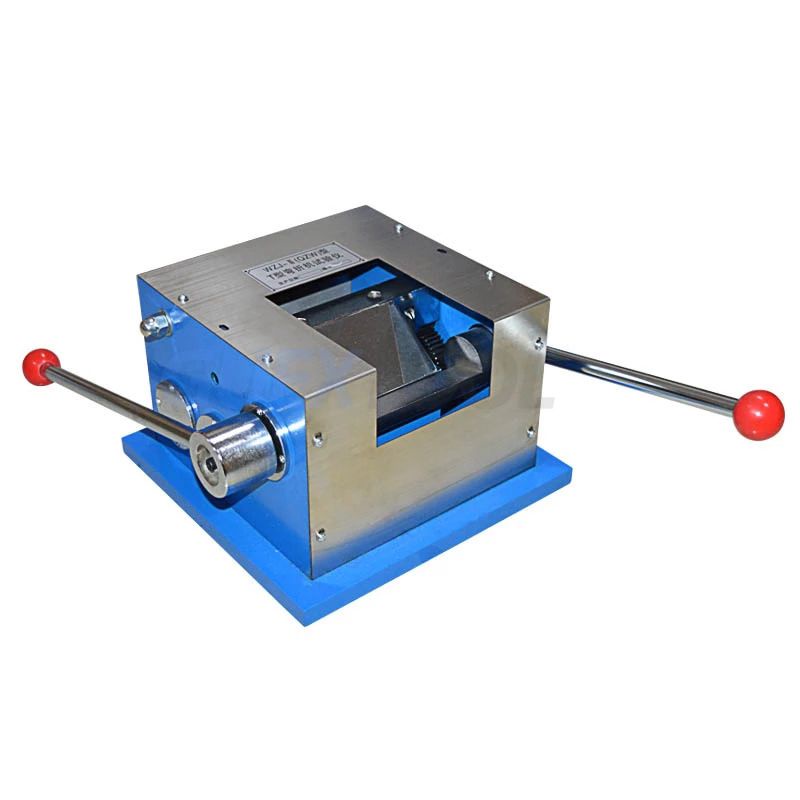

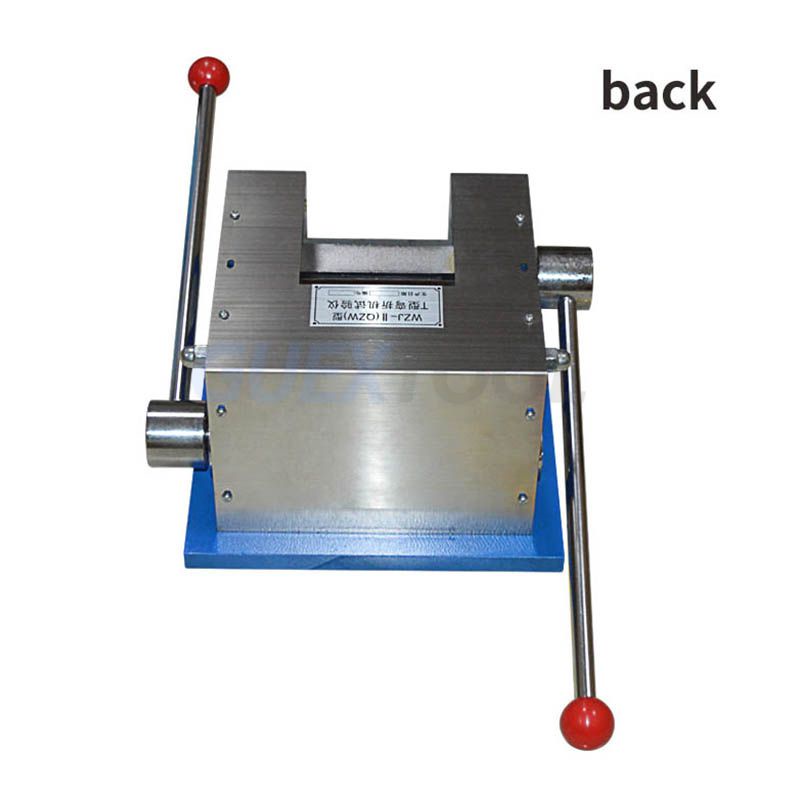

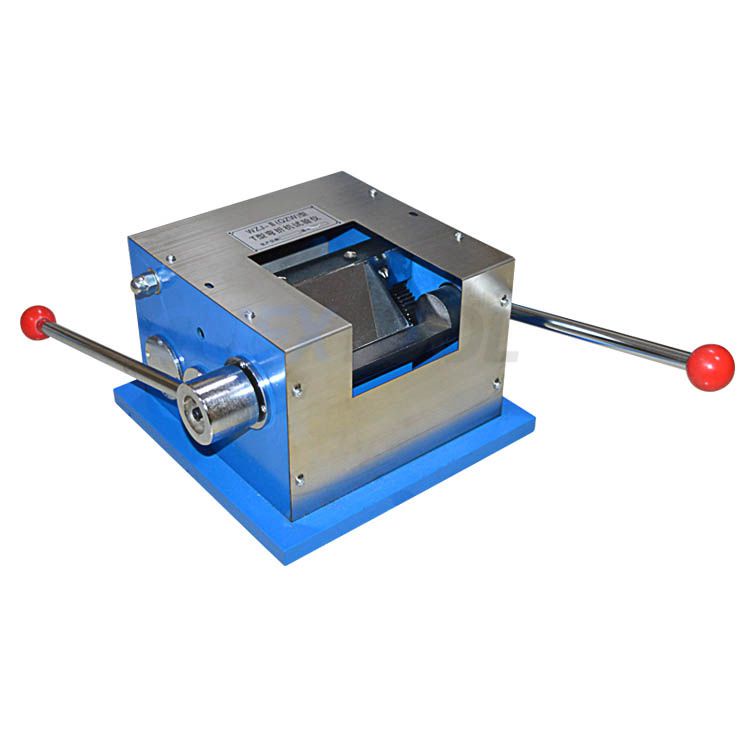

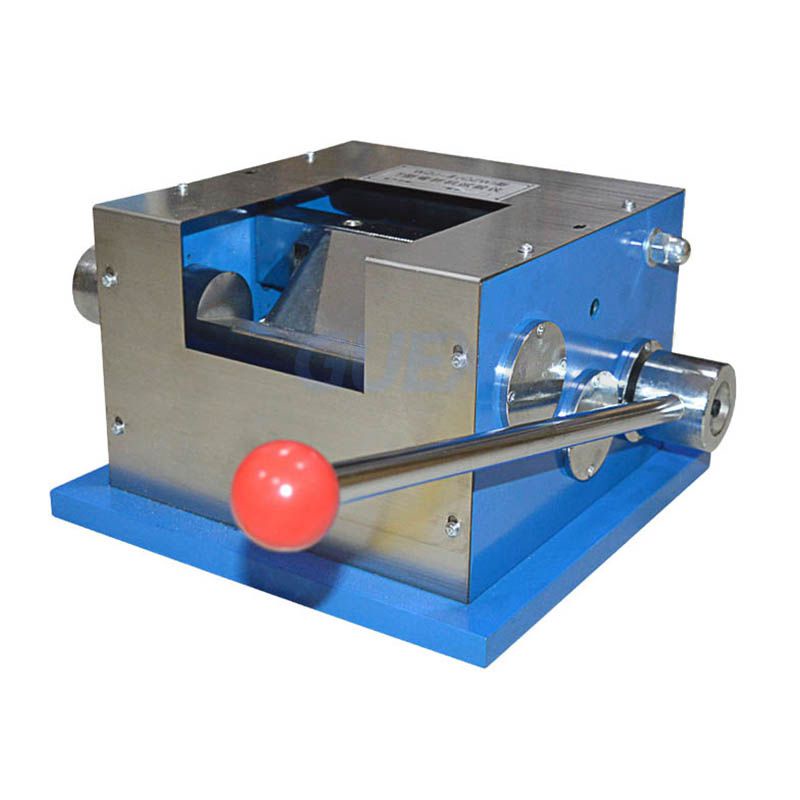

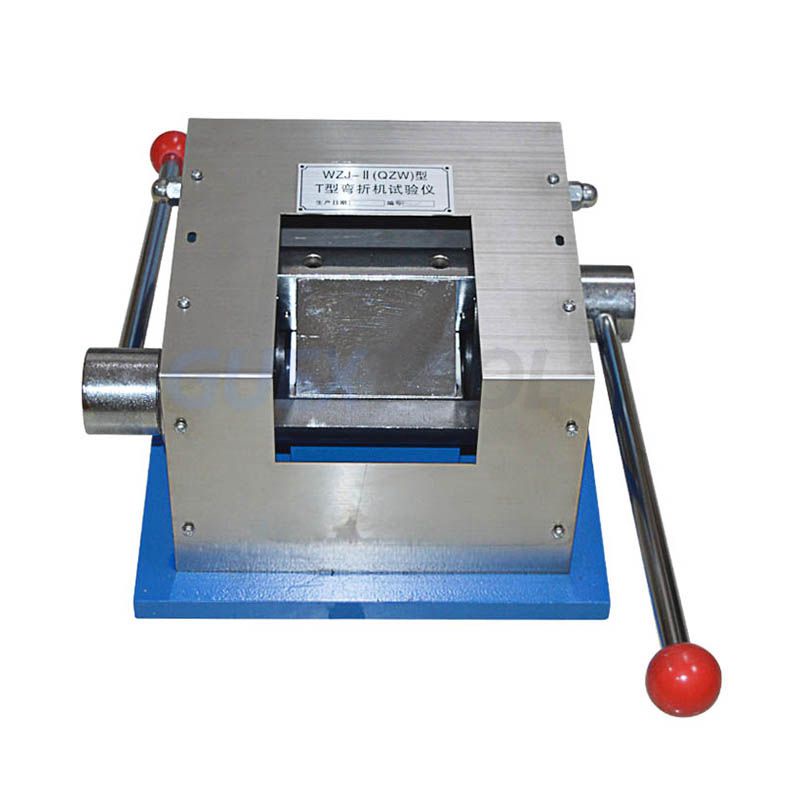

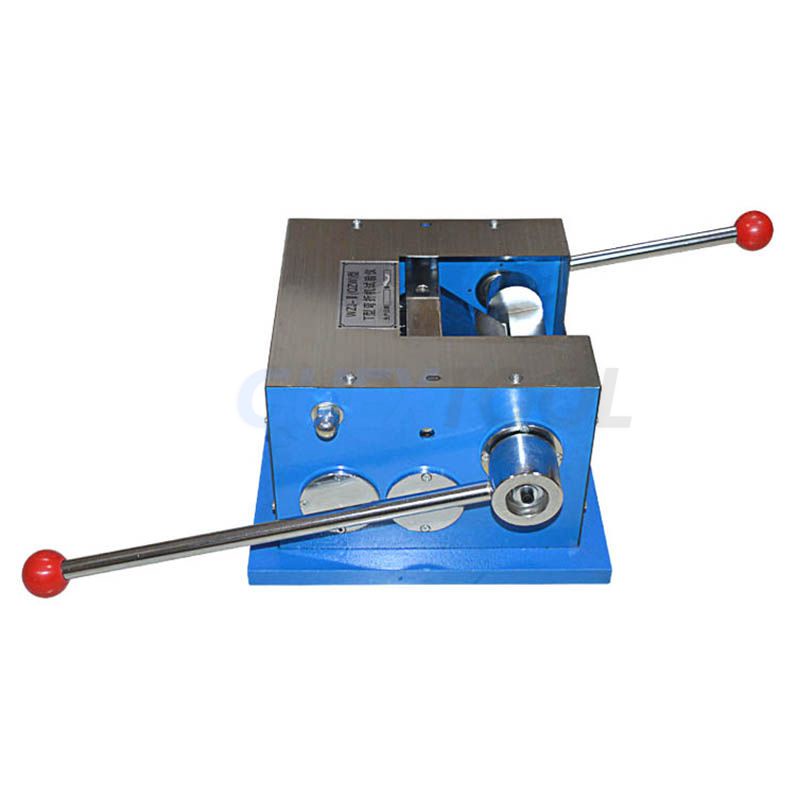

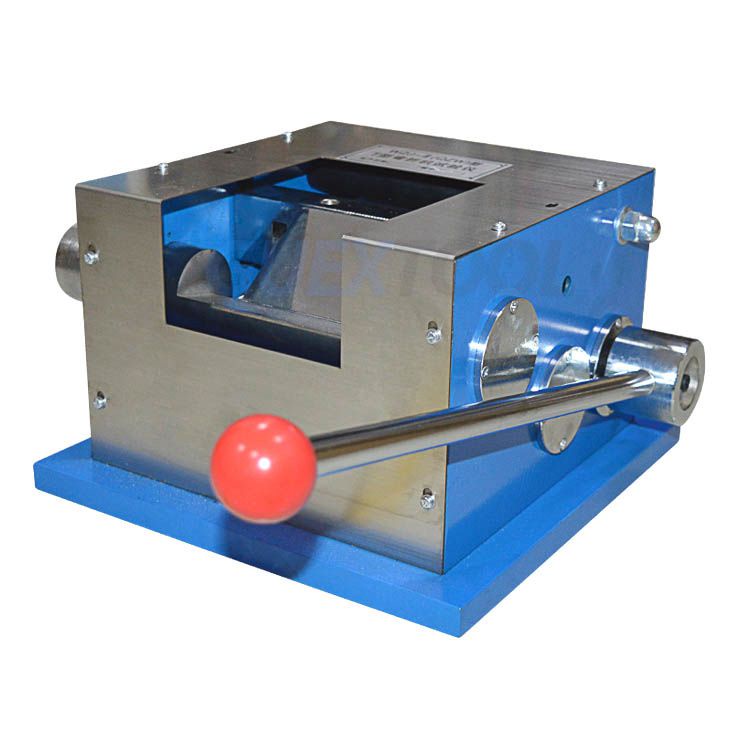

The main structure:
Floor and left and right side panels.
Gear and crank lift mechanism.
Triangle bent Yaping fast.
Square rotation split pieces.
Guard and handle and other components.
Operation steps:
1. Specification: 400 × 100 (mm)
2. Specimens should be placed in a 23 + 2 ° environment for at least 24h before cutting, and
the test should be carried out under the same conditions.
3. Turn the handle on the right side so that the triangular bending crimp block in the middle of
the testing machine picks up (≥10mm): Turn the left handle at the same time, so that the
squareturning split block and the triangular bending flat block become straight with the bottom
surfacestatus. (as the picture shows)
