Product parameters:

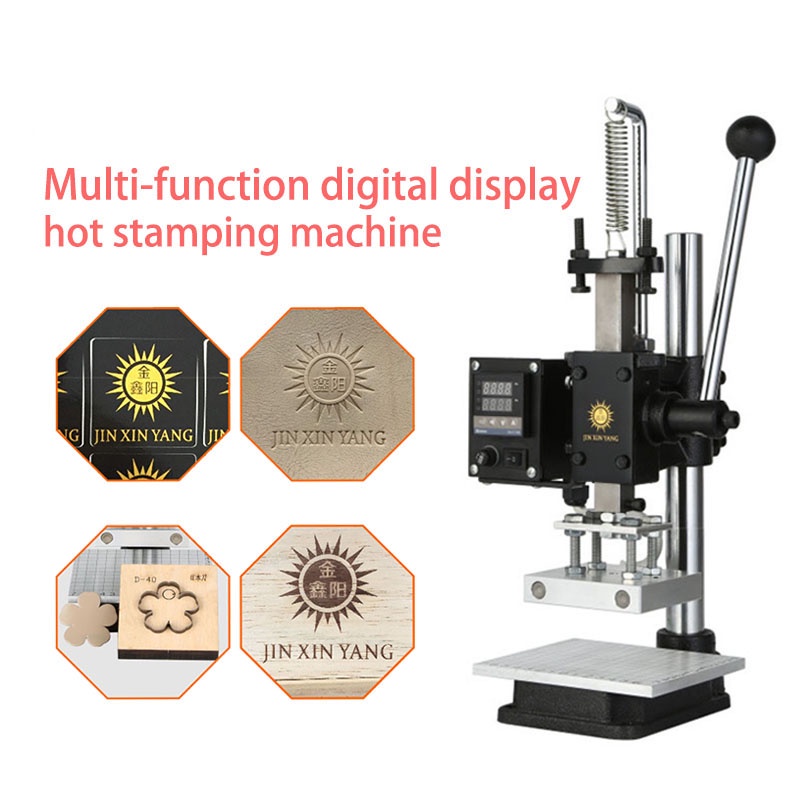

Product Name: Multi-function digital display hot stamping
Model: JXY-SD160B
Temperature control range: 0-400 ° C
Temperature control deviation value: 0-5 ° C
Optional heating area and corresponding power:
5*7cm: 300w
8*10cm: 460w
10*13cm: 500w
Optional voltage: 220v and 110v
Machine volume: about 23*23*46cm
Optional plug: China / American / British / European
Effective size: 130 (mm)
Roller diameter: 180 (mm)
Working length: 180 (mm)
Motor power: 0.5 (kw)
Weight: 10 (kg)

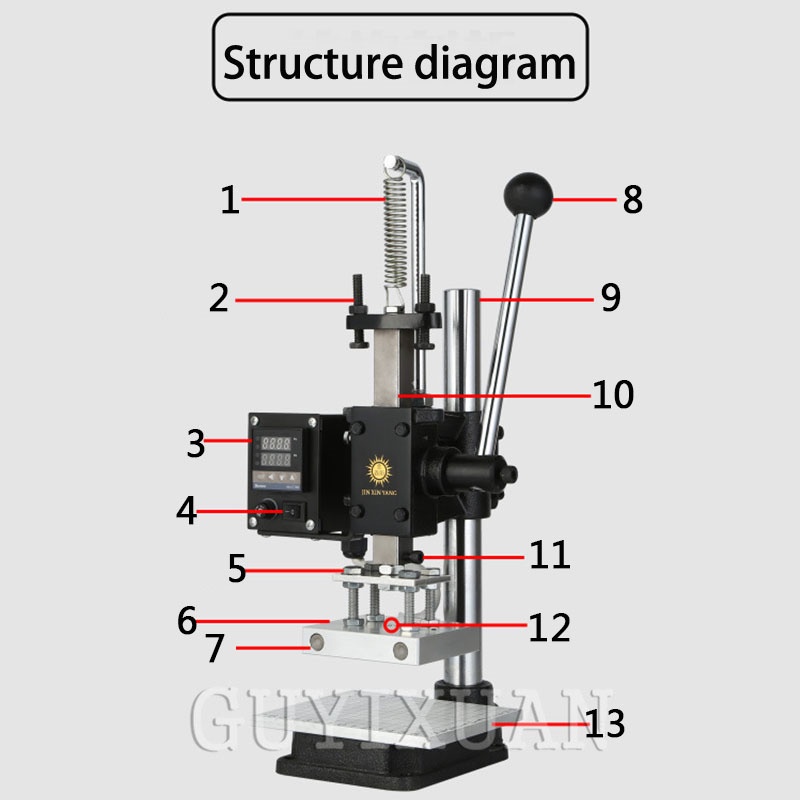

Product structure information:
Labor saving spring 2. Adjust the stroke screw 3. Digital display temperature control table, 0-400 °C temperature adjustable 4. Power switch 5. Balance adjustment screw 6. Heating plate 7. Heat pipe 8. Non-slip handle 9. Machine pillar, lifting height: 0-16cm 10. Pressure shaft 11. Fixed heating plate screws 12. Mold mounting hole, diameter 6mm 13. Scale table 13*15cm
