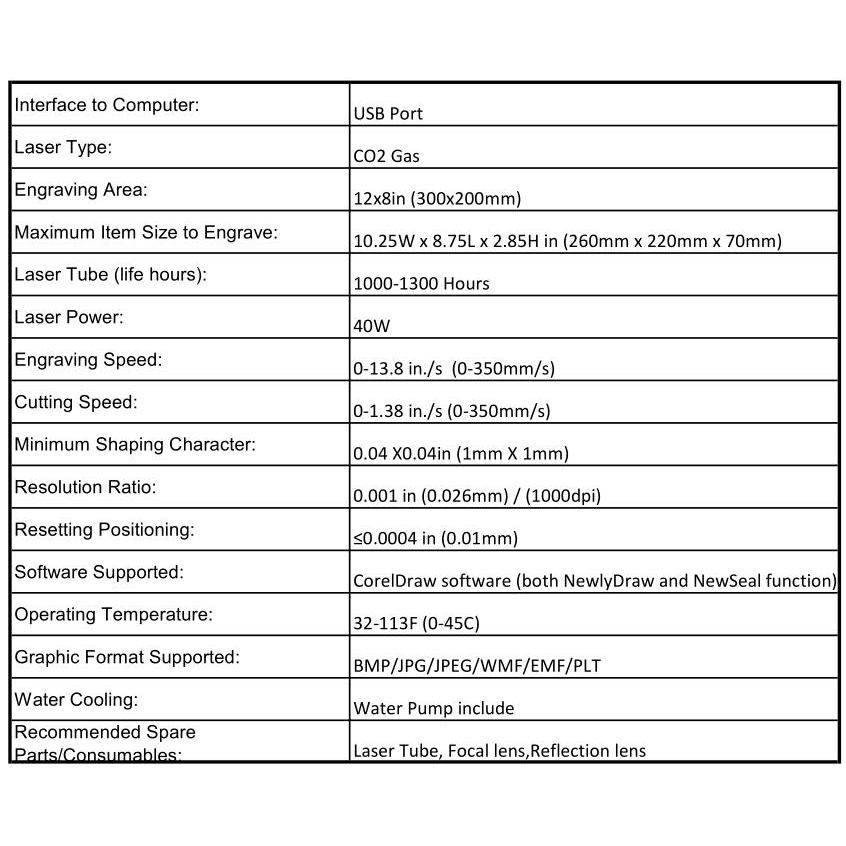

Laser type: CO2 gas
Power supply: 220V/50Hz
Tube trigger voltage: 20KV
Tube working voltage: 15KV
Carving area: 300*200mm
Maximum item size engraving: 260*220*70mm
Laser tube (lifetime): 1000-1300 hours
Engraving speed: 0-13.8in./s (0-350mm/s)
Cutting speed: 0-13.8in./s (0-35mm/s)
Minimum molding quality: 0.04*0.04in (1mm*1mm)
Resolution: 0.001 (0.026mm)/1000 (dpi)
Reset positioning: ≤0004 (0.01mm)
Motor type: cloth-in motor
Support software: Cire1Draw software
Power consumption: ≤250W
Operating temperature: 32-113F (0-45°C)
Supported graphic formats: BMP/JPG/JPEG/WMF/EMF/PLT
Water cooling: water pump included

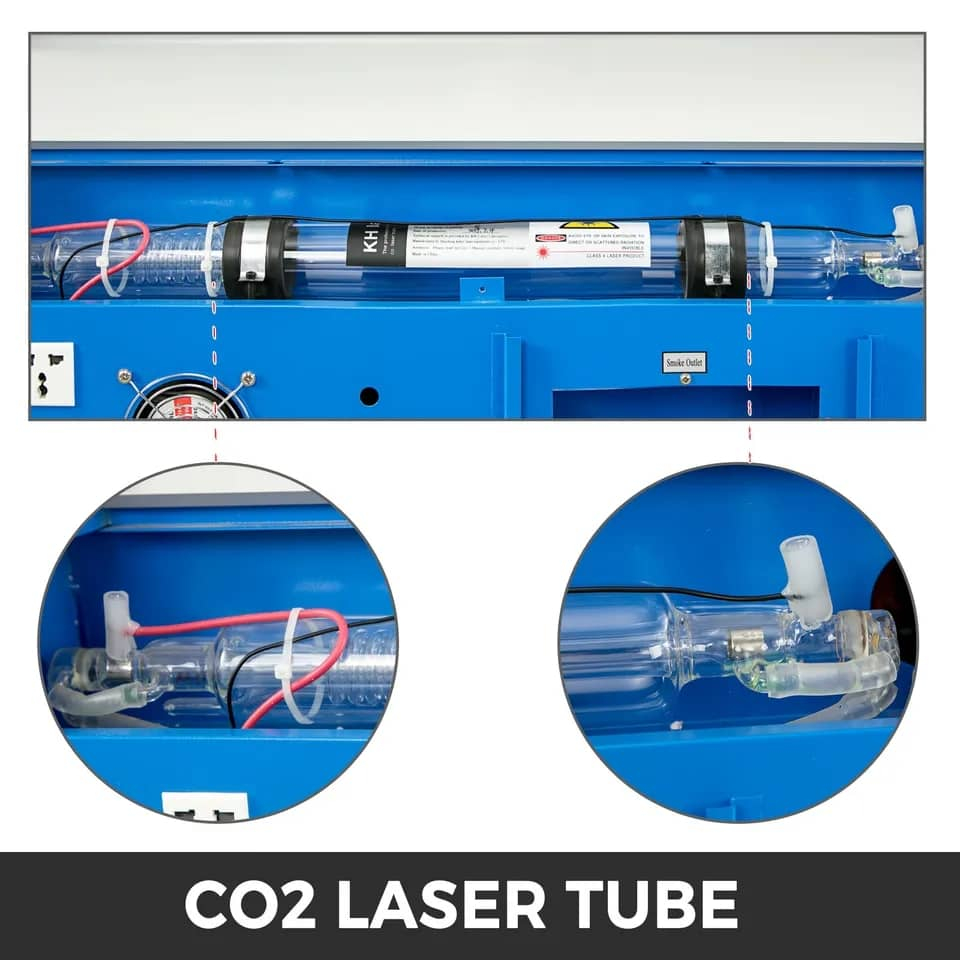

Recommended spare parts/consumables: laser tube, focus lens, reflection lens
Product size: 800*500*250mm
Product weight: 27KG
Packing weight: 29.5KG
Features:
1. Adopt imported motherboard and chip, which can be well engraved;
2. Imported bearings and stepping belts are used;
3. The reinforced and thickened fuselage makes the transportation safe for a long time;
4. Manufacture heat dispersing fans to reduce the temperature of electronic components; thus prolonging the service life of electronic components;
5. Support multiple models of printers and scanners (BMP/JPG/JPEG/WMF/EMF/PLT compatible).
Applicable materials: wood, paper, leather, cloth, plexiglass (lightly cut on ordinary glass), epoxy resin, MDF, two-color board, marble, plastic, rubber, crystal, bamboo and other non-metallic materials. Metal or ceramics cannot be engraved and cut.
(Note: The engraving and cutting depth is 0-10mm, depending on different materials and power)
Suitable industries: The machine is suitable for engraving, advertising, art gifts, clothing, leather, toys, architectural decoration, computer embroidery, packaging and printing, paper products, garment sampling, wide tailoring, shoemaking, furniture, industry, crafts, nameplates Decoration, woodcut and other industries.

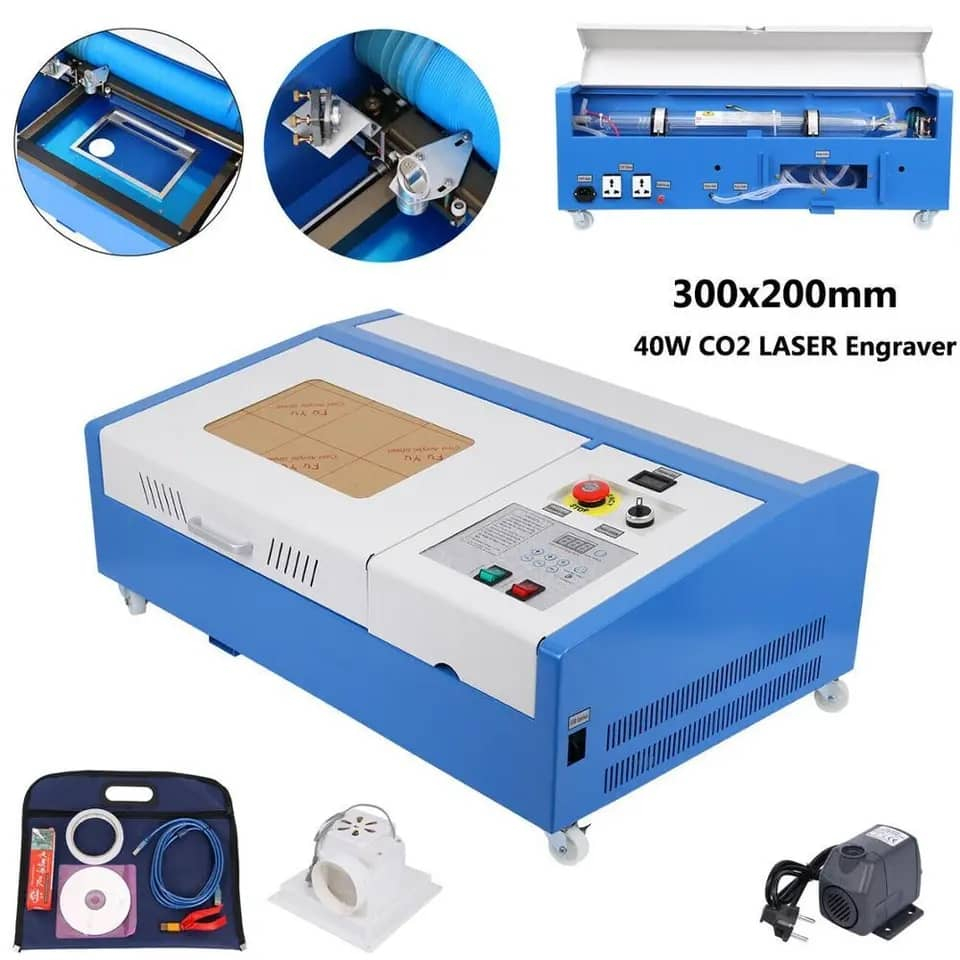

packing list:
1*CO2 laser engraving machine
1*Water pump
1*pipe
1*Smoke exhaust fan
1*Power cord
1*USB cable
1*USB flash drive
1*Accessory bag
1*English manual
