Product Description
HH-G02 Jewelry Pneumatic Engraving Machine
Power supply:220 V 50 Hz / 110 V 60 Hz
Power:60W
Handle working speed:400-8000rpm
Air pressure regulation range:0-45 PSI
Body size:27 * 14 * 22.5 (CM)
Package size:31.5 * 31 * 29cm
Package weight:7kg

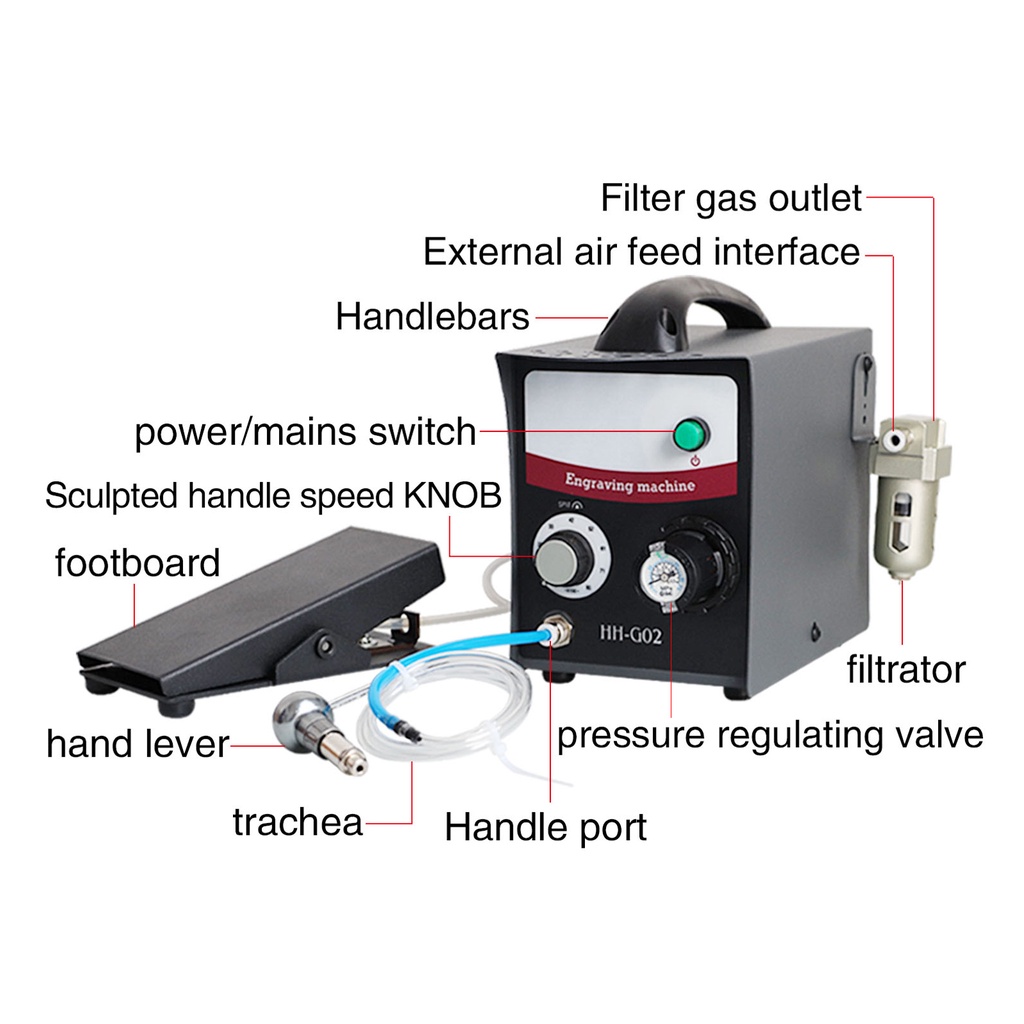

.Precise & Adjustable Gauge --- The pneumatic engraver features 400-8000 strokes per minute, a throttle bias adjustment valve for tailoring throttle response; a dual-stage precision air regulator.
.Ergonomic Design --- Advanced ergonomic designs are adopted as the front air pressure adjustment, quick connection air connector, and advanced valve pulse device, without noise or vibration.

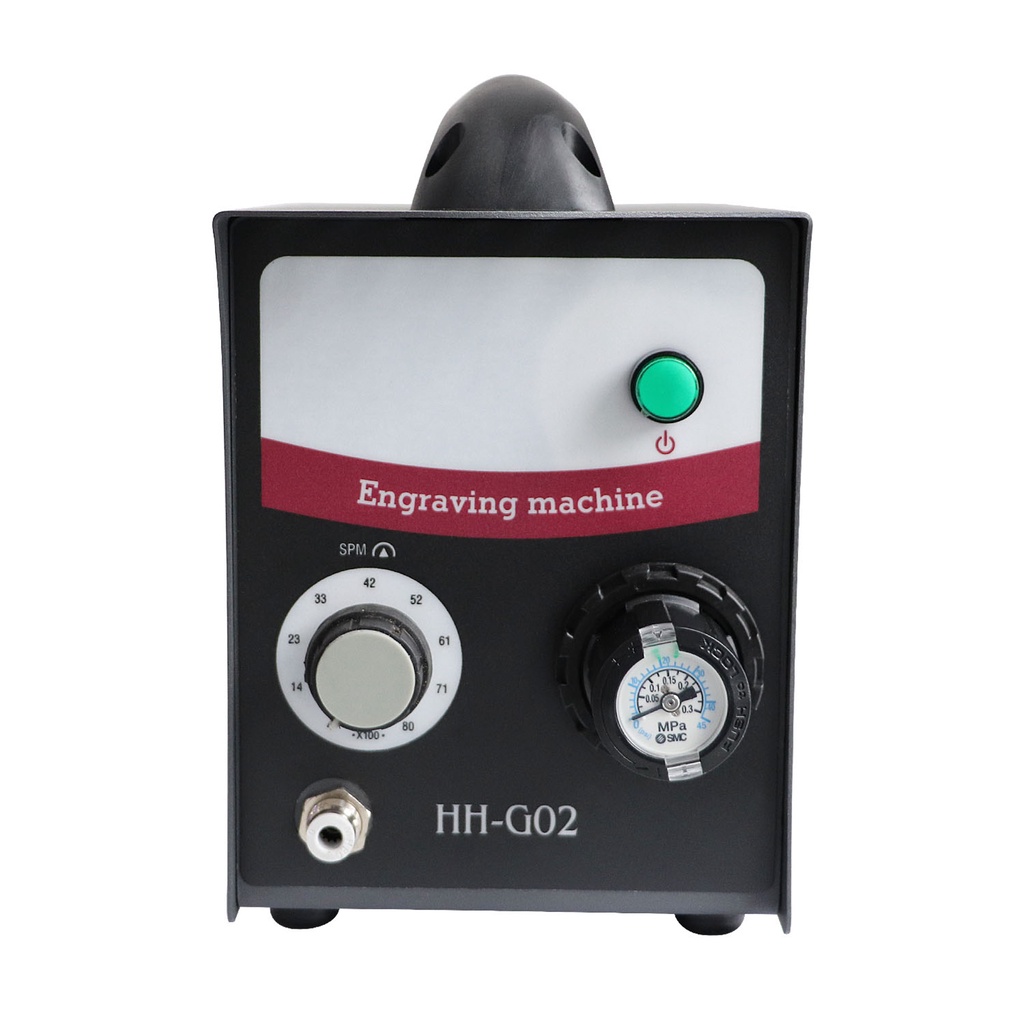

.Easy-to-operate Panel ---Adopting user-friendly keyboard design & reasonable layout, easy to operate, intuitive & clear. The foot pedal is convenient for precise control.
. Application --- The single head pneumatic engraving machine This machine has the advantages of flexible operation, convenient, high efficiency, adjustable impact speed and silent type. Suitable for jewelry processing, carving, carving, roller bead edge, micro inlay, etc. Gold, silver, copper, aluminum, and other metal crafts. It's a good helper for sculptors.
Installation:
. Engraving handle. Pedal switch is connected with the interface on the panel.
. Insert the air outlet pipe of the air compressor into the air inlet at the back of the engraving machine.
. It is recommended to install a pressure reducing valve and water distribution filter between the air compressor and the engraving machine to improve the performance of the machine.
