Detector Type: Uncooled Vanadium Oxide Microbolometer
Detector Resolution: 160x120
Response Band: 8~14μm
Pixel Size: 17μm
NETD (Noise Equivalent Temperature Difference): <50mk (@25°C, F#=1.0)
Thermal Imaging Lens Focal Length: f3.1 Fixed Focus, No Thermalization
Minimum Measurement Distance: 15cm
Field of View: 38.3° × 50°
Aperture: F1.1

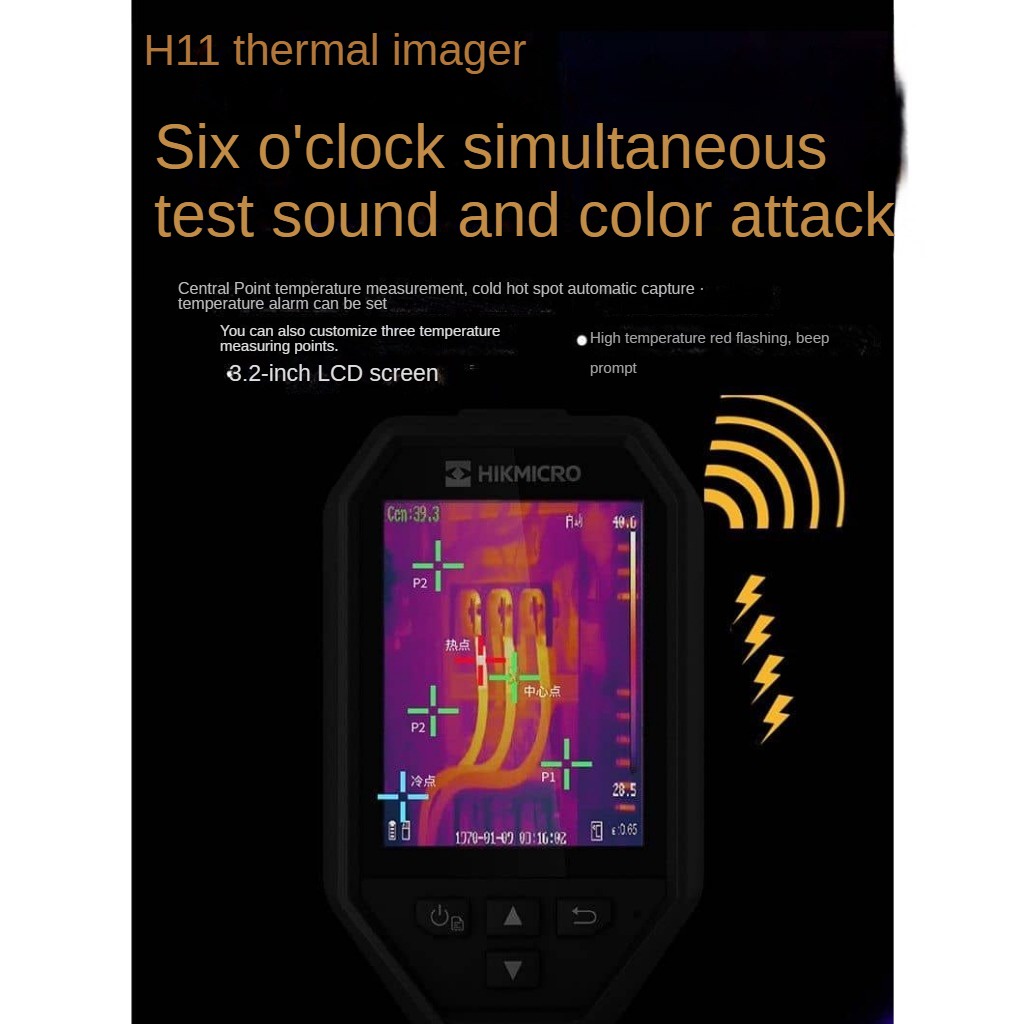

Thermal Features: Temperature Measurement Rules - 3 Temperature Points (Center, Max, Min)
Accuracy: ±2°C (or ±2% of reading, whichever is greater)
Temperature Measurement Range: -20°C to 350°C
D:S (Distance-to-Spot Ratio): 75:1
Temperature Units: Celsius, Fahrenheit, Kelvin
Image Display: Max Image Size: 160x120
Frame Rate: 25Hz
Display: 2.4-inch LCD Screen (320x240)
Image Modes: White Hot, Black Hot, Iron Red, Rainbow
Image Format: JPEG image with temperature information
Power and Accessories:
Laser Indicator: Displays temperature measurement area, activated by trigger button.
Storage:
8 GB Micro SD Card
Storage Expansion: Supports up to 128 GB.
Power:
Micro USB Direct Charging
Battery Type: Rechargeable lithium-ion
Charging Time: <3 hours at 25°C
Battery Life: >8 hours at 25°C
Power Management: Adjustable settings - Off, 5 mins, 10 mins, 20 mins
Other Specifications:
Operating Temperature: -10°C to 50°C
Humidity: <95%
Storage Temperature: -40°C to 70°C
Drop Resistance: 2m
Protection: IP54
Dimensions: 196mm x 117mm x 59mm
Weight: <350g (including battery)
Accessories:
5V Power Adapter
USB Cable
Wrist Strap Lanyard
8GB Micro SD Card
User Manual
