Product name: Manual hydraulic steel bar shears
Product Model: SC-12, SC-16, SC-22, SC-25, SC-27, SC-32
Product color: All models are yellow except SC-32 which is black

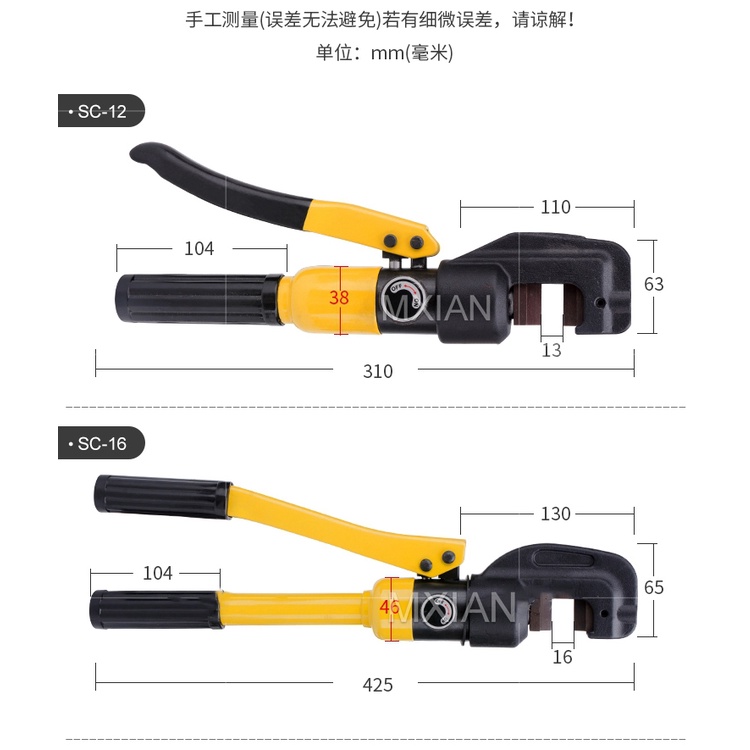

Model: SC-12
Work output: 6T
Shearing range: 4-12mm
Cutting tool configuration: 1 pair
Weight: 2.8kg
Length: 310mm
Model: SC-16
Work output: 8T
Shearing range: 4-16mm
Cutting tool configuration: 1 pair
Weight: 4.8kg
Length: 452mm

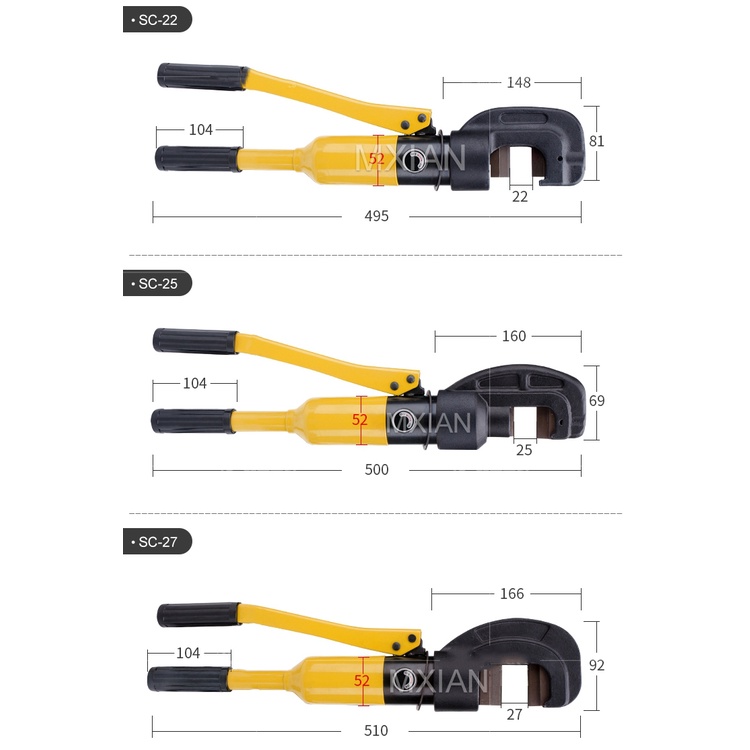

Model: SC-22
Work output: 12T
Shearing range: 4-22mm
Cutting tool configuration: 1 pair
Weight: 6.4kg
Length: 495mm
Model: SC-25
Work output: 12T
Shearing range: 4-25mm
Cutting tool configuration: 1 pair
Weight: 6.6kg
Length: 500mm
Model: SC-27
Work output: 12T
Shearing range: 4-27mm
Cutting tool configuration: 1 pair
Weight: 6.8kg
Length: 510mm
Model: SC-32
Work output: 12T
Shearing range: 4-32mm
Cutting tool configuration: 1 pair
Weight: 9kg
Tip: This steel bar shear is only used to cut steel bars. If the shearing of other things (such as U-shaped locks, iron chains, etc.) causes damage, the store is not responsible for it, please bear it by yourself! ! !

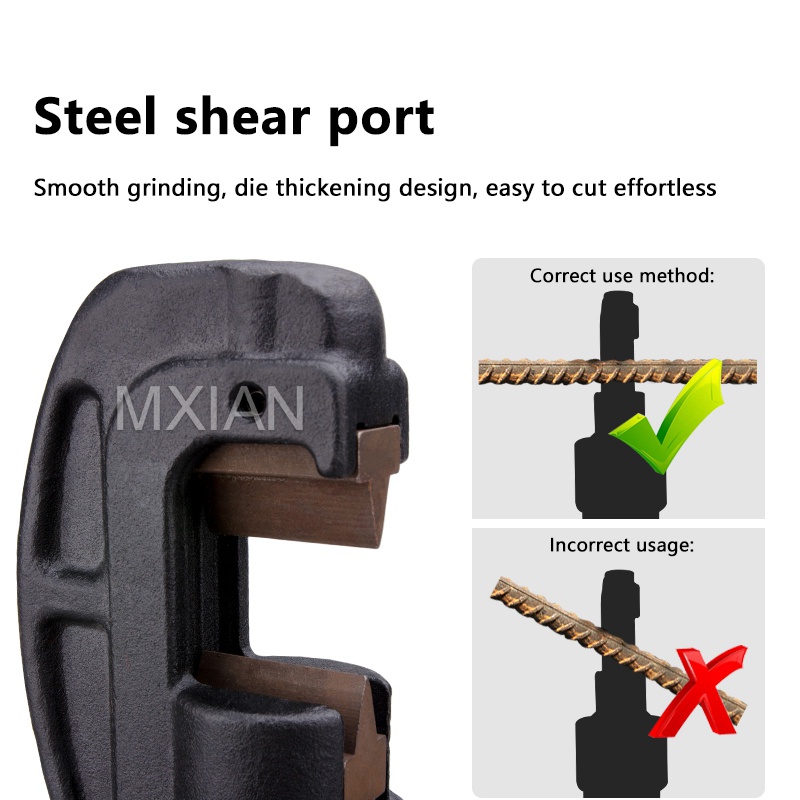

When shearing, the steel bar is perpendicular to the middle of the cutting edge, and the inclination or deviation of the placement position will easily cause the knife edge to crack. The correct use method can increase the service life of the steel bar shears! !
