Features:

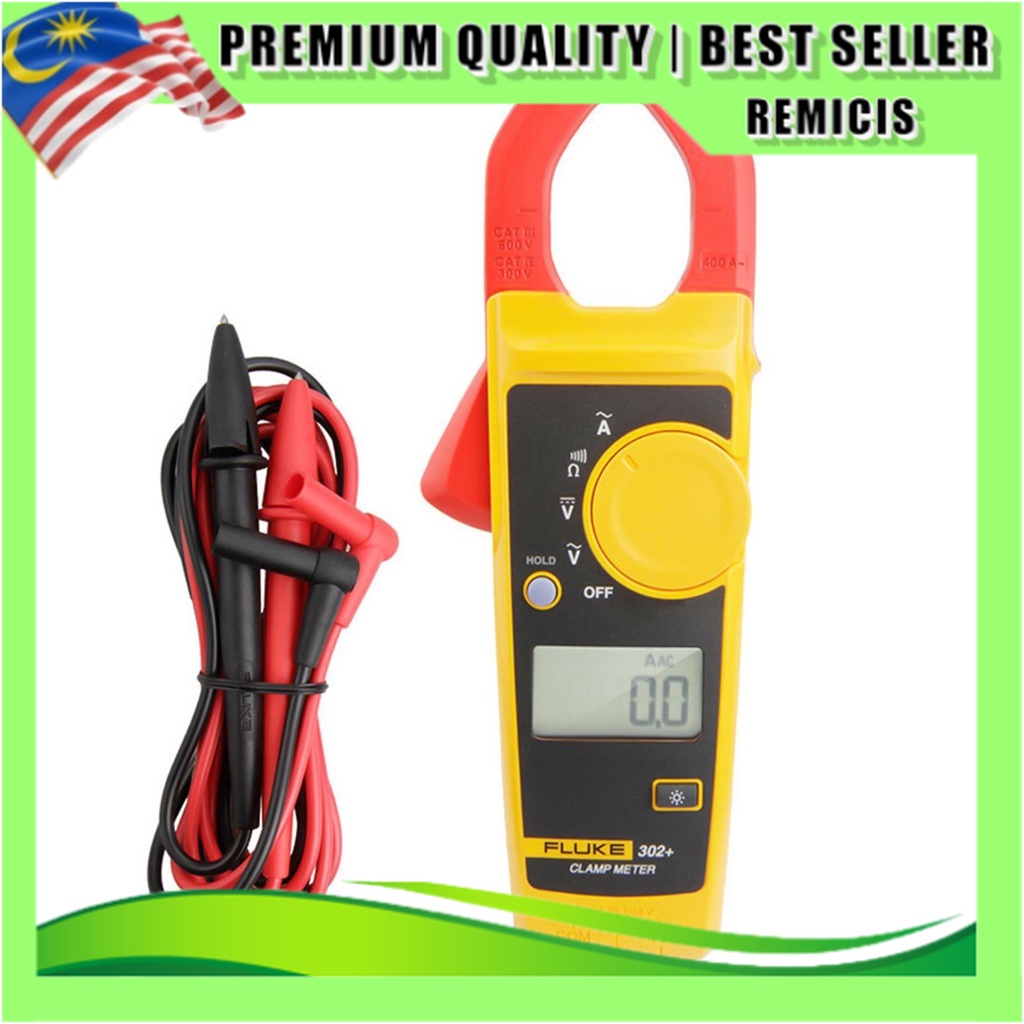

Multi-purpose Clamp Meter: for measuring AC Current, AC/DC Voltage, and Resistance.
Wide Measuring Range: 600V DC/AC voltage, 400A AC current, and 400.0Ω/4000Ω resistance.
Digital LCD Display: with backlight ON/OFF switchable for display data clearly in the low lit conditions.
User-friendly Design: jaw opening of 30mm to measure current without touching or interrupting the circuit.
Low Power Consumption: powered by 2*1.5V AAA battery (NOT included), convenient to operate.
Detachable Test Lead: comes with a pair of test probes for convenient measurement.

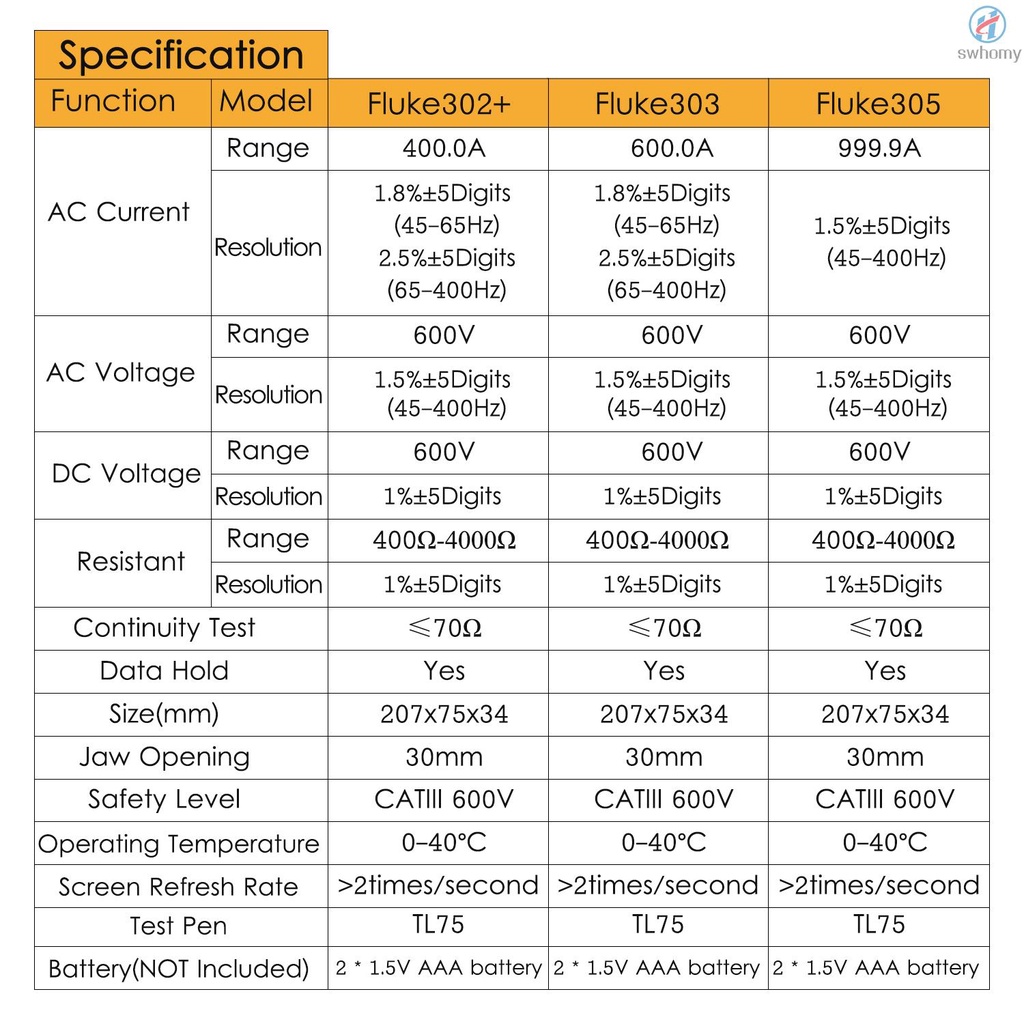

Specifications:
Material: ABS
Color: Orange+red
AC CURRENT(JAW):
Range: 400.0A
Resolution: 0.1A
Accuracy:
1.8%±5 digits (45~65Hz)
2.5%±5 digits (65~400Hz)
AC VOLTAGE:
Range: 600.0V
Resolution: 0.1V
Accuracy: 1.5%±5 digits (45~400Hz)
DC VOLTAGE:
Range: 600.0V
Resolution: 0.1V
Accuracy: 1%±5 digits
RESISTANCE:
Range: 400.0Ω/4000Ω
Resolution: 0.1Ω/1Ω
Accuracy: 1%±5 digits
Continuity Beeper: ≤70Ω
Operating Temperature: 0~40℃
Storage Temperature: -30~60℃
Operating Humidity:
Non condensing: <10℃
≤90%RH (at 10~30℃)
≤75%RH (at 30~40℃)
Operating Altitude: 2,000 meters
Storage Altitude: 12,000 meters
Safety Rating: 600V CAT III
Jaw Opening: 30mm
Power Supply: 2 * 1.5V AAA battery (NOT included)
Item Size: 207 * 75 * 34mm / 8.15 * 2.95 * 1.34in
Item Weight: 327g / 11.54oz
Package Weight: 449g / 15.86oz
Package Size: 25 * 10 * 4.8cm / 9.84 * 3.94 * 1.89in

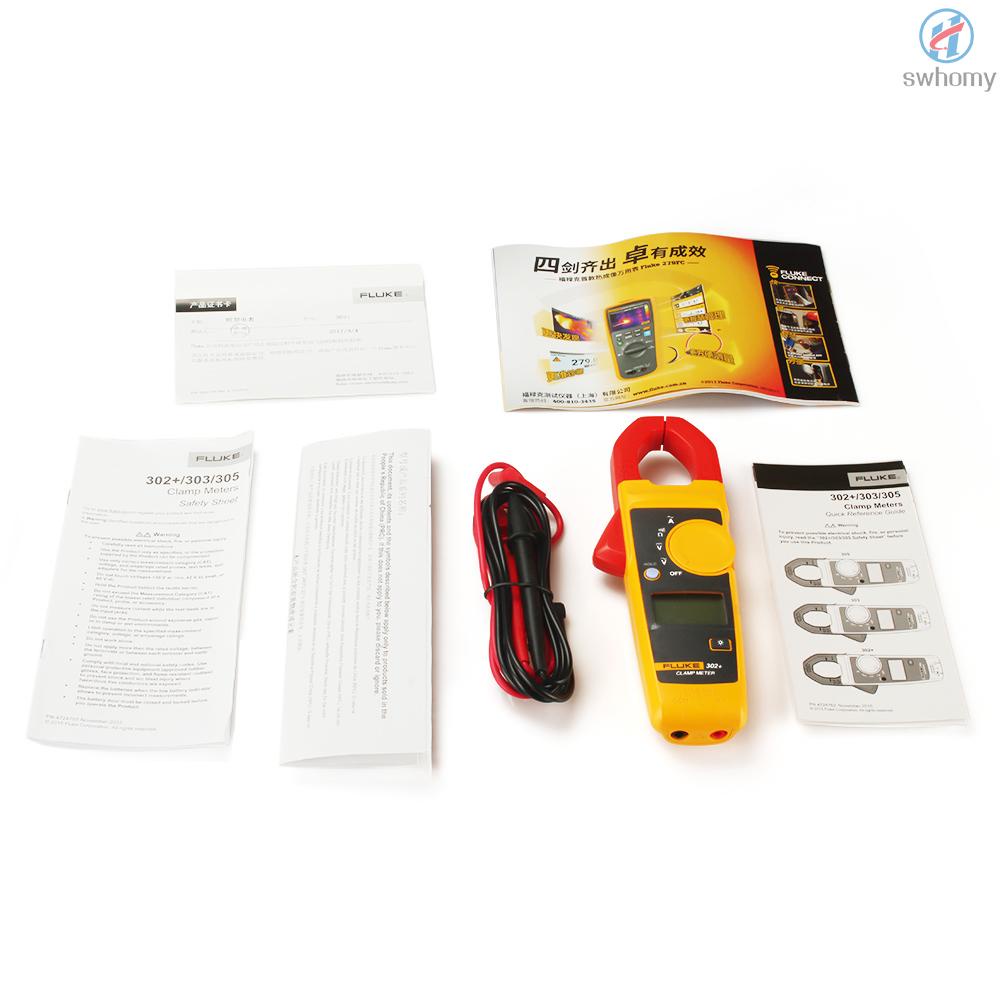

Package List:
1 * Clamp Meter
1 * Pair of Test Leads
1 * Manual (English)
