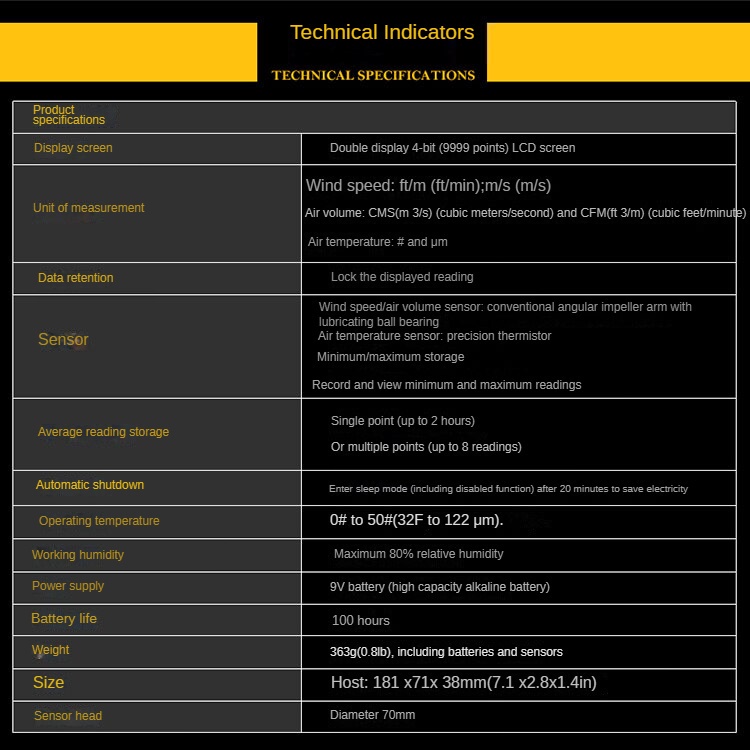

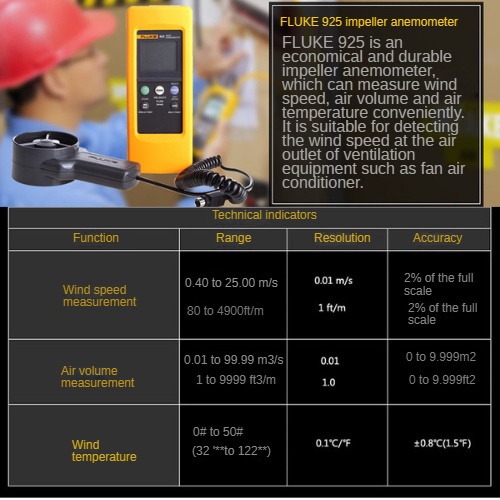

Technical Specifications
Product Specifications

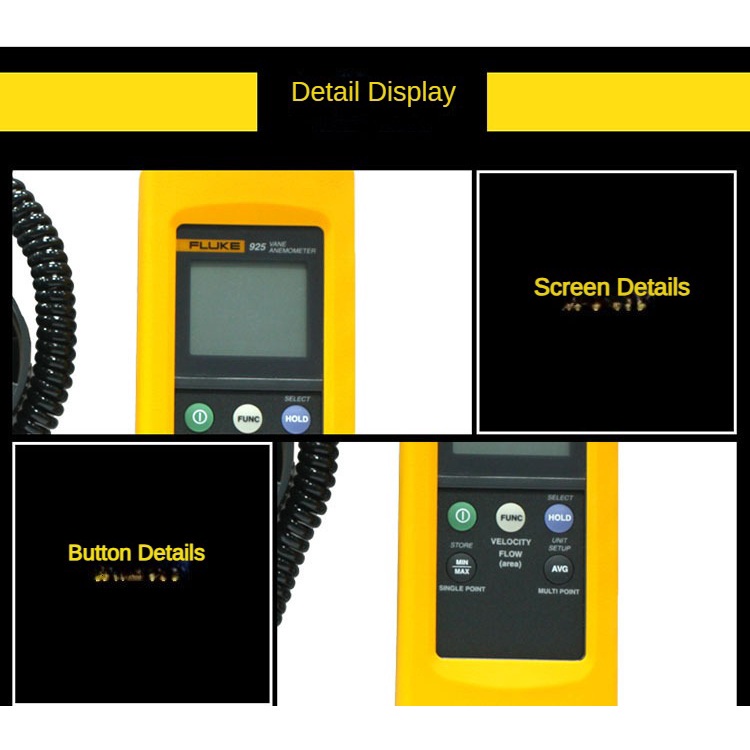

Display:
Dual 4-digit LCD displays (9999 counts)
Measurement Units: Wind Speed - ft/m (feet/minute), m/s (meters/second); Airflow - CMS (cubic meters/second), CFM (cubic feet/minute)
Air Temperature Units: ℃ (Celsius), ℉ (Fahrenheit)
Data Handling:
Locking of displayed readings
Minimum/Maximum Value Storage
Average Reading Storage: Single point (up to 2 hours) or multi-point (up to 8 readings)
Sensors:

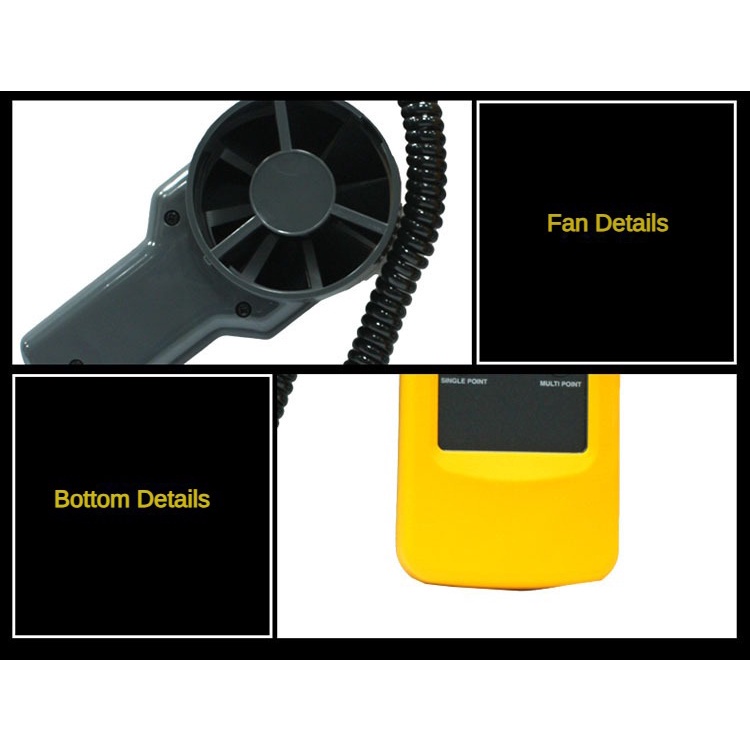

Wind Speed/Airflow Sensor: Conventional axial vane with lubricated ball bearings
Air Temperature Sensor: Precision thermistor
Auto Power Off:
Sleep mode activation after 20 minutes (with disable function) for energy conservation
Operating Conditions:
Temperature: 0°C to 50°C (32°F to 122°F)
Humidity: Up to 80% relative humidity
Power Source:
9V battery (high-capacity alkaline)
Battery Life: 100 hours

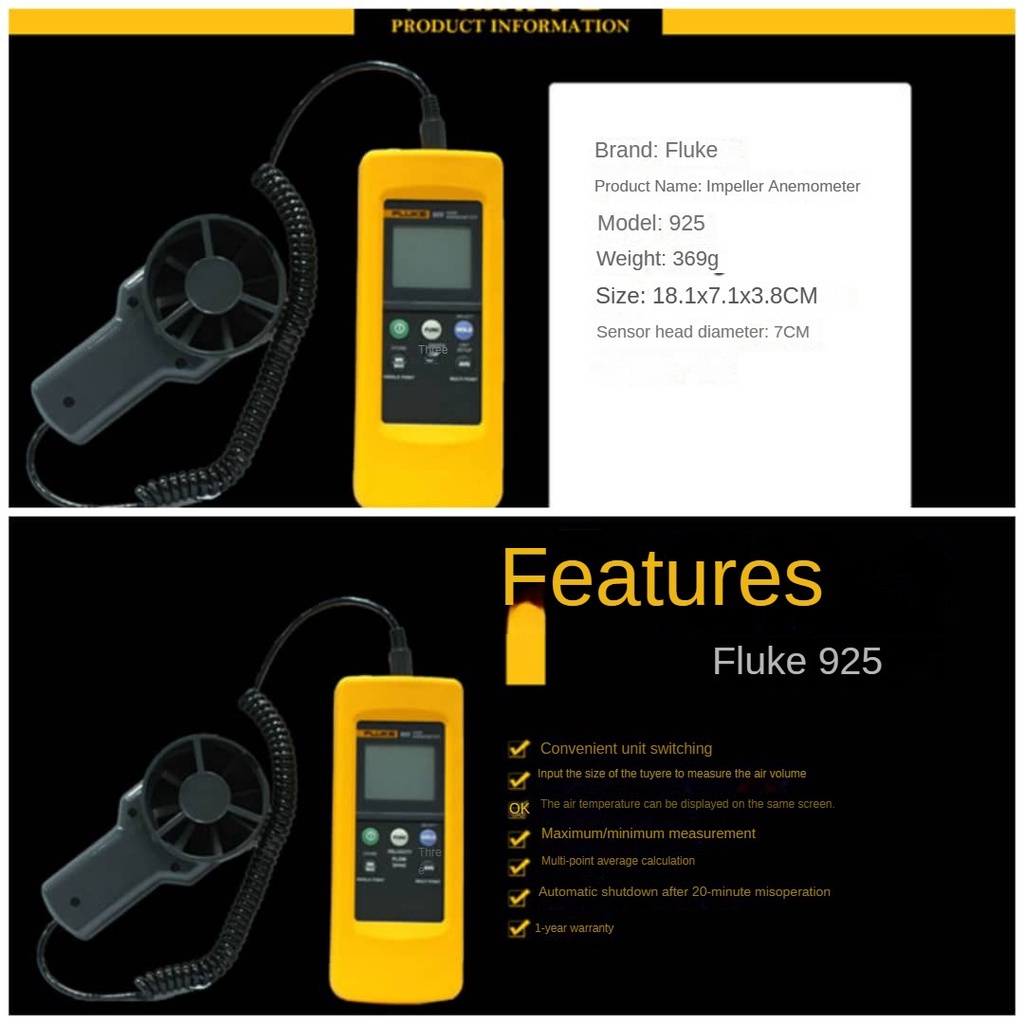

Weight: 363 g (0.8 lb) including battery and sensor
Dimensions:
Main Unit: 181 x 71 x 38mm (7.1 x 2.8 x 1.4 in)
Sensor Head Diameter: 70 mm
Functionality: Wind speed measurement
Range: 0.40 to 25.00 m/s
Resolution: 0.01 m/s
Accuracy: ±2% of full scale
Range: 80 to 4900 ft/min
Resolution: 1 ft/min
Accuracy: ±2% of full scale
Range: 0.01 to 99.99 m3/s
Resolution: 0.01 m3/s
Range: 0 to 9.999 m2
Wind volume measurement
Range: 1 to 9999 ft3/min
Resolution: 1.0 ft3/min
Range: 0 to 9.999 ft2
Wind temperature measurement
Range: 0°C to 50°C (32°F to 122°F)
Resolution: 0.1°C/°F
Accuracy: ±0.8°C (1.5°F).
