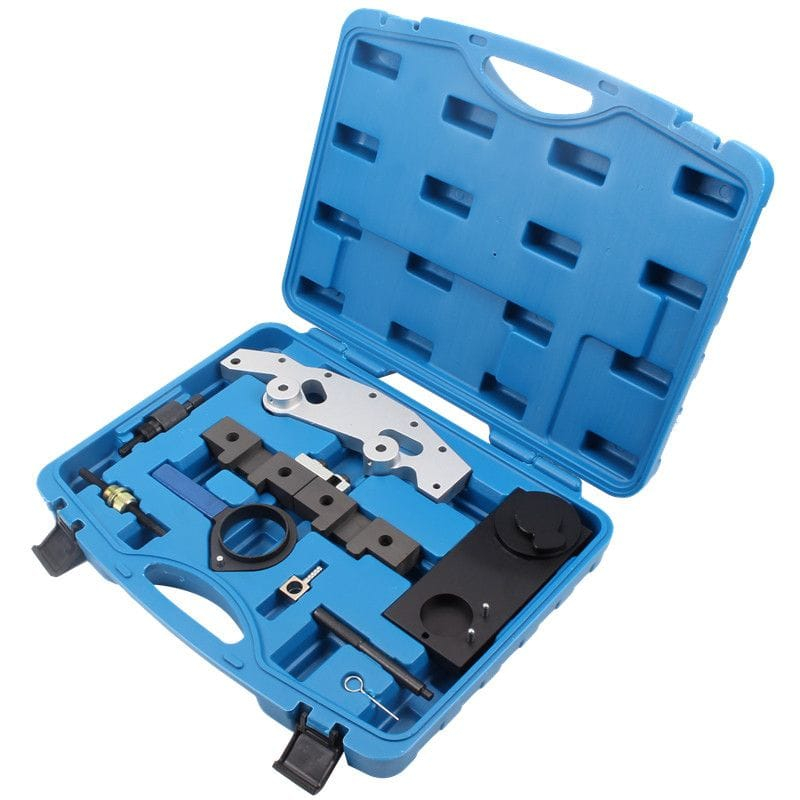

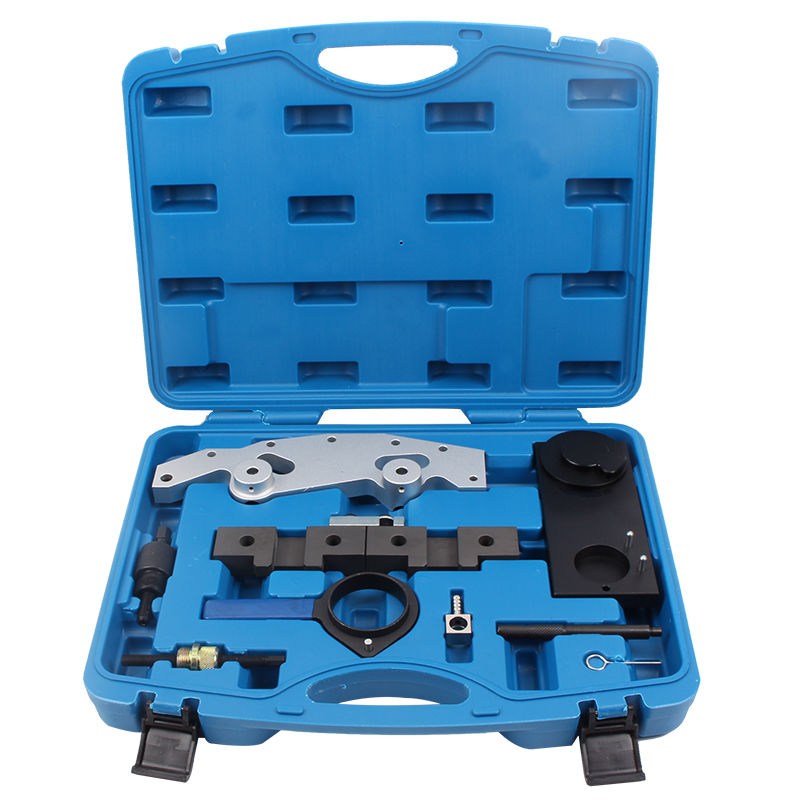

Camshaft Alignment Engine Timing Locking Tool Master Set Double Vanos For BMW M52TU/M54/M56

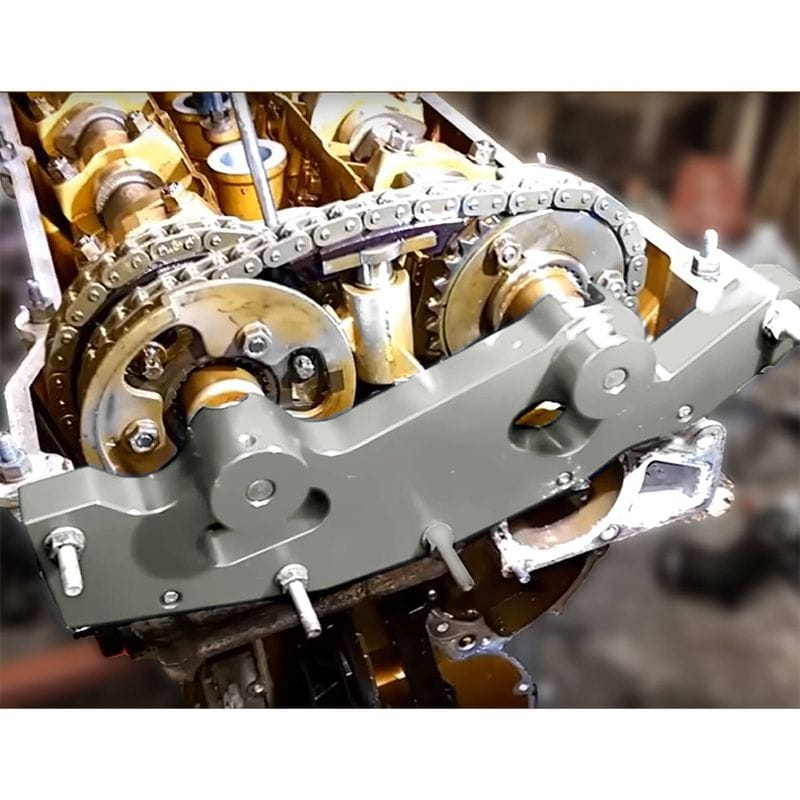

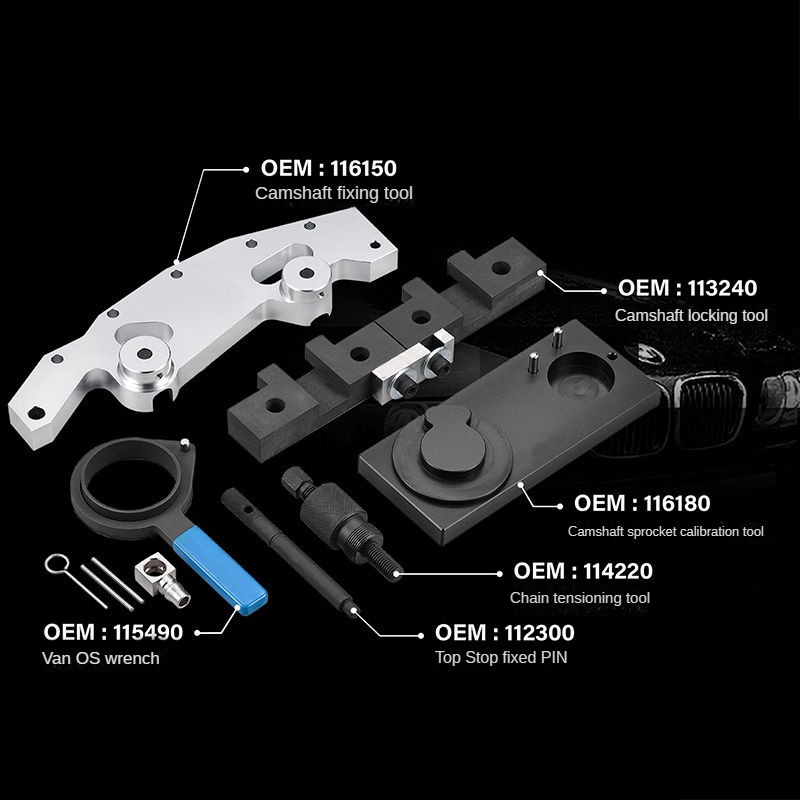

116150 Alignment Jig: Adjusting plate for setting valve
timing on engine with double Vanos.
116180 Sprocket Assembly Jig: Use for preassembling
secondary chain sprockets with chain on camshafts
114220 Rigid Chain Tensioner: Use to tension primary chain
113292 Chain Tensioner Lock Pin: Locks chain tensioner during timing
113450 VANOS COMPRESSED AIR CONNECTION: Use to pressurize the single and double Vanos unit when checking or removing and replacing.
Applicable: BMW 6 cylinder engine: M52TU (1998-2000), M54 (2001-2004), & M56 (2003 to present)
M52TUB25
1997-2001 E46 323i/323Ci/323ti (M52T)
1998-2001 E39 523i (M52TU)
1998-2001 E36/7 Z3 (M52TU)
M52TUB28
1997-2001 E46 328i/328Ci (M52TU)
1997-2001 E36/7 Z3 2.8 (M52B28/Z3)
1998-2001 E39 528i (M52TU)
1998-2001 E38 728i (M52TU)
M54B22
2001-2003 E46 320i/320Ci
2001-2003 E39 520i
2001-2002 E36 Z3 2.2i
2003-2005 E85 Z4 2.2i
2003-2005 E60/E61 520i
M54B25
2001-2002 E36/7 Z3 2.5i
2001-2005 E46 325i/325xi
2001-2006 E46 325Ci
2001-2004 E46 325ti
2001-2004 E39 525i
2003-2004 E60/E61 525i/525xi
2004-2006 E83 X3 2.5i
2004-2006 E85 Z4 2.5i
M54B30
2001-2005 E46 330i/330xi
2001-2006 E46 330Ci
2001-2003 E39 530i
2001-2002 E36 Z3 3.0i
2003-2005 BMW E60 530i
2003-2006 E85 Z4 3.0i
2004-2006 E83 X3 3.0i
2001-2006 E53 X5 3.0i
