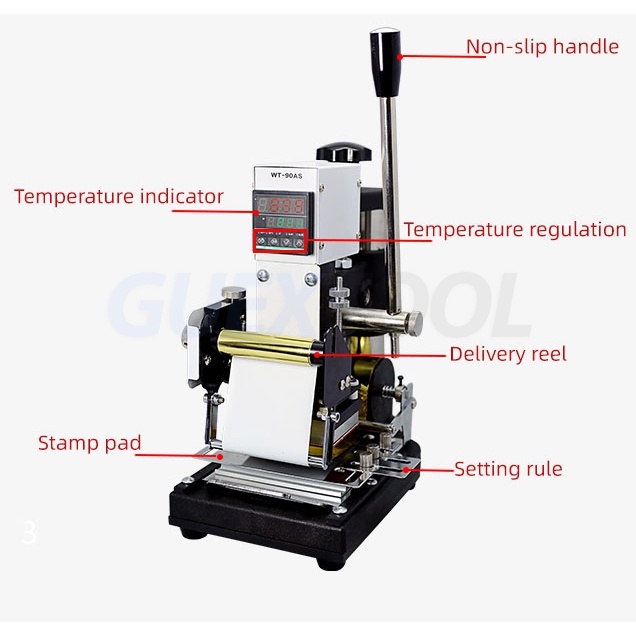

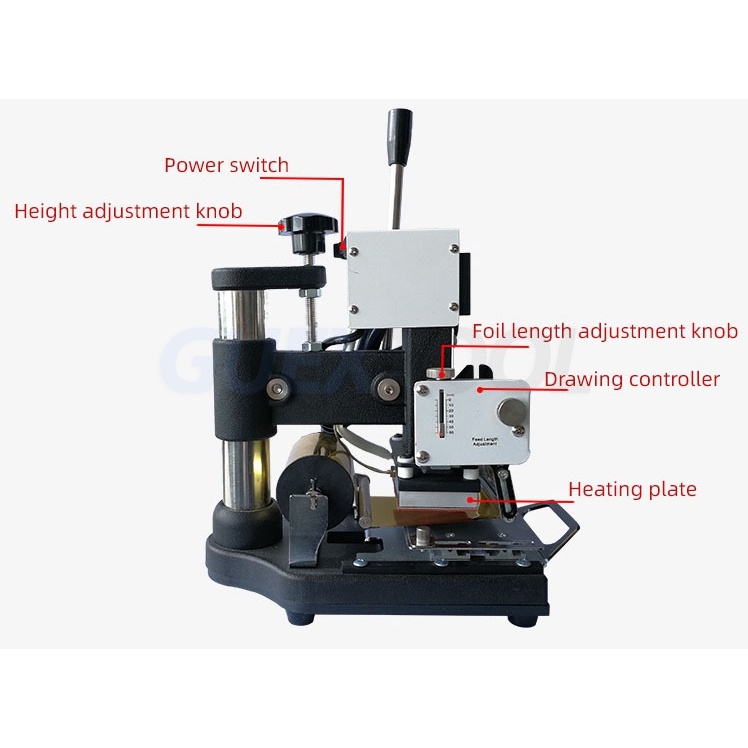

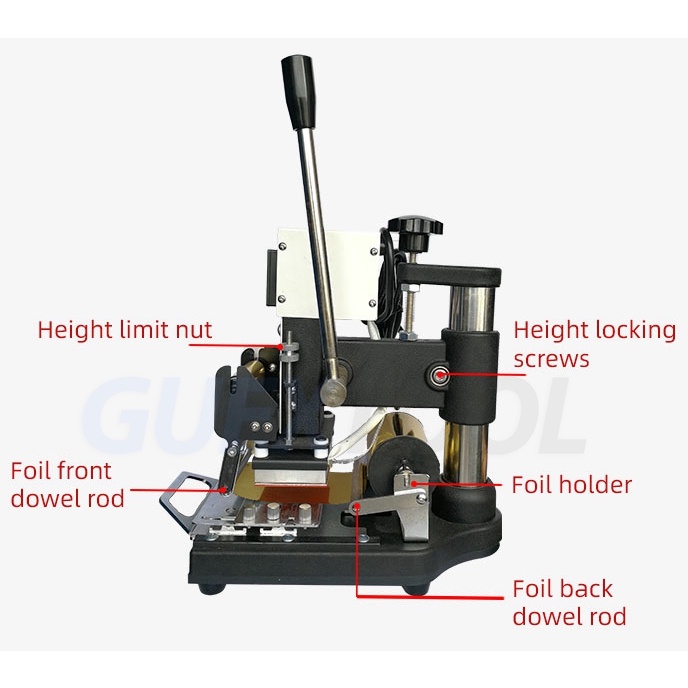

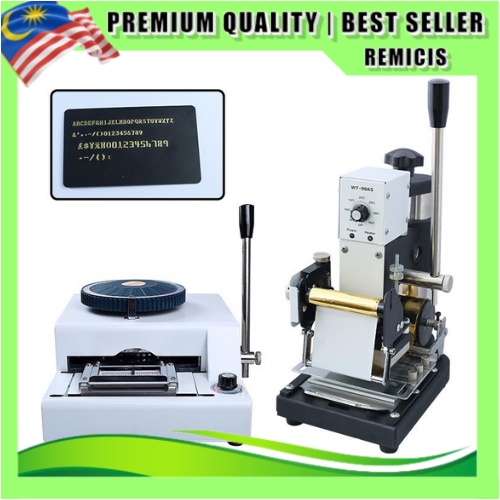

Product model: WT-90AS
Product name: PVC card embossed hot stamping machine
Heating plate area: 60*90MM
Printing table: Drawer type printing table + adjustable positioning piece
Operation mode: Handle down
Receiving method: mechanical automatic receiving (adjustable)
Packing weight: Gross weight 9KG
Packing size: 360mm*235mm*400mml

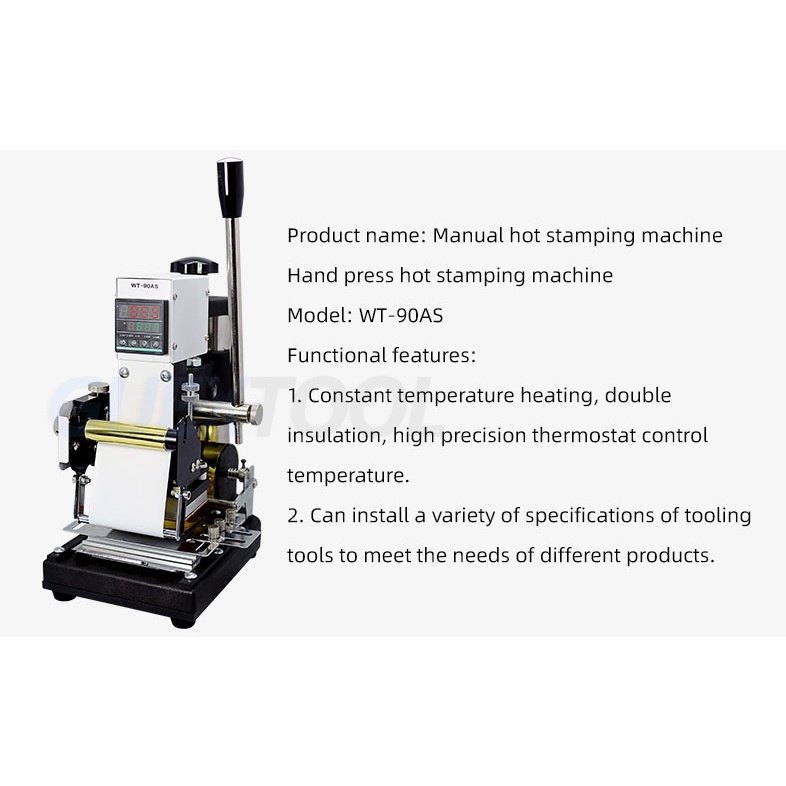

Features:

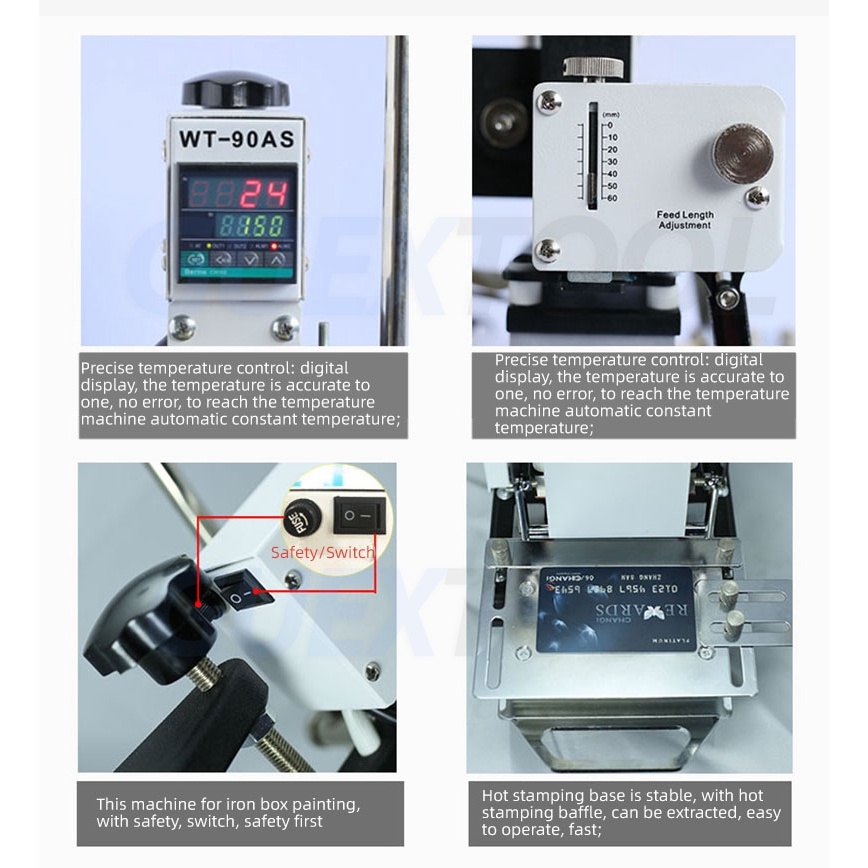

1. Constant temperature heating, double insulation, high-precision temperature controller to control temperature.
2. Multiple specifications of tooling can be installed to meet the needs of different products.

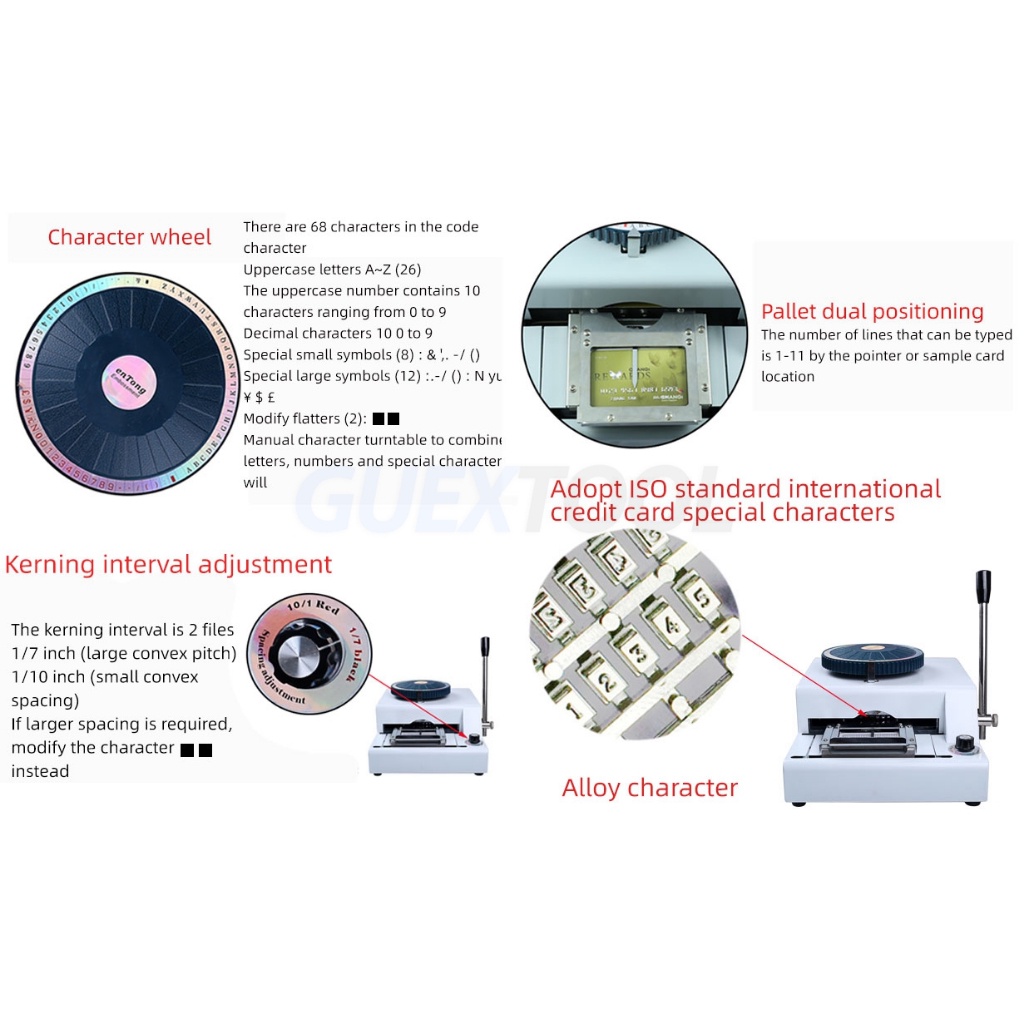

Product name: 68D embossing machine
Applicable size :85.5mm*54mm
Number of convex lines :1-11 lines
Convex position indicator: indicator pin or sample card
Adjust kerning interval :1/7 inch (large characters only) 1/10 inch (small characters only)
Volume :340*300*180 (mm)
Packing weight :10.5kg
Operation precautions
1. Please use standard cards (85mm×55mm). Metal or non-standard cards are strictly prohibited.
2. When rotating the code plate, do not press down the handle to avoid damage to the machine;
3. When changing the gear, please pay attention to the positioning position. If it needs to be replaced halfway, please gently block the card frame with your left hand to avoid the automatic shift of the card frame during the transposition;
4. Do not insert hands or other foreign bodies into the machine.
