Principle
The 808nm semiconductor diode laser hair removal system uses its unique long pulse width laser to penetrate the epidermis to the hair
follicle. According to the selective light absorption principle, the energy of the laser is preferentially absorbed by the melanin
in the hair, and the hair loses its ability to regenerate. During the treatment, the unique sapphire dynamic cooling technology of
the system makes the epidermis anesthetized in a short time, so as to ensure that the epidermis will not be burned, and achieve
painless, fast and permanent hair removal.
Picosecond uses the most cutting-edge technology to treat pigmented diseases. Through fast and powerful energy, the pigment in the
skin is more finely crushed, and then the principle of removing tattoos and stains through the principle of lymphatic drainage.
Therefore, the treatment process is shortened from the original 10 times to 2 to 3 times, and the dermis is not damaged, reducing
the possibility of side effects and increasing the success rate of the operation.
Application
1. Diode 808 laser :
Hair removal: Effectively remove unwanted hair from various parts of the human body, such as armpit hair, beard, lip hair,
bun, bikini line, and limb hair. Skin rejuvenation: shrink pores and whiten skin.
2. picosecond Laser:
1. 1064 laser head, effectively remove dark tattoos, eyebrow tattoos, lip tattoos, eyeliner, traumatic pigmentation and
freckles, etc..
2. 532 laser head, suitable for red or tan tattoos, eyebrow tattoos, lip liner, and eyeliner. It can
effectively dilute red or tan birthmarks and various shallow spots. 4. 1320 Rejuvenates skin and whitens, shrinks pores

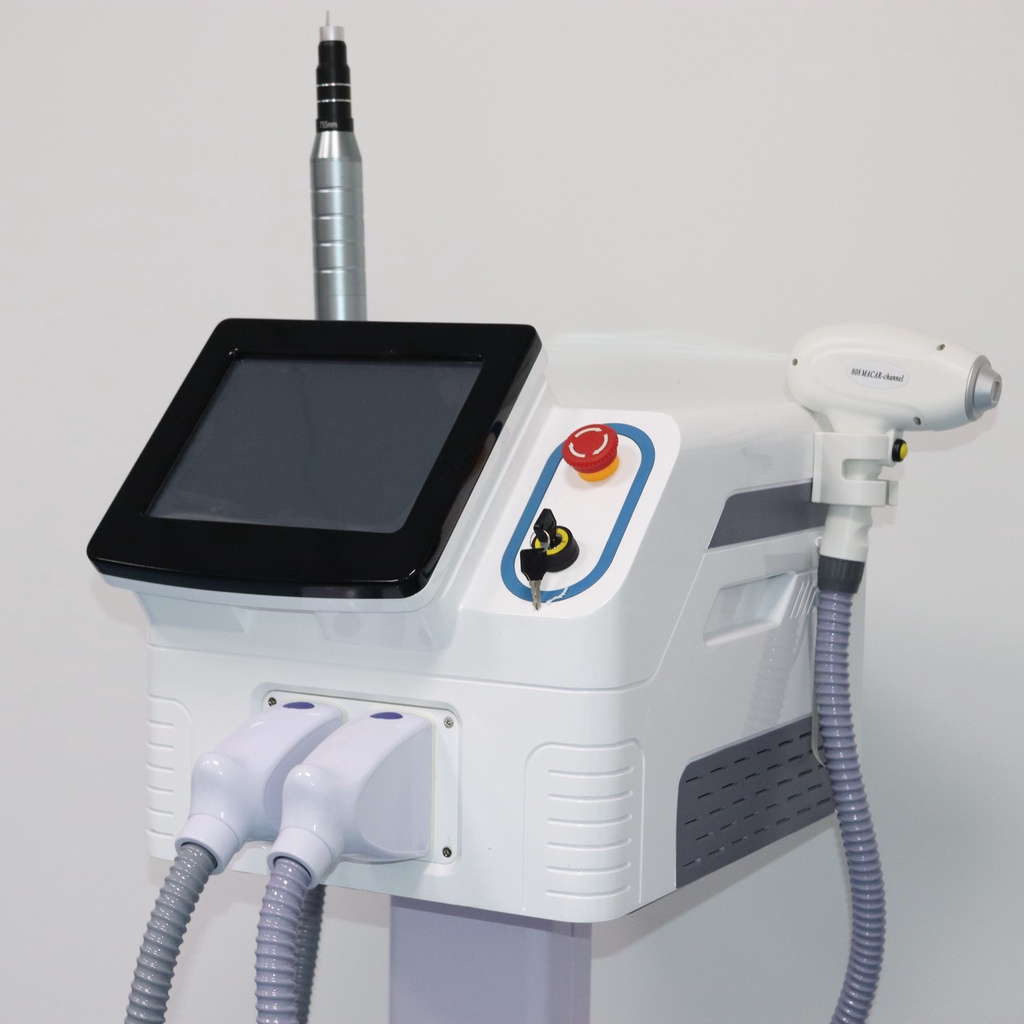

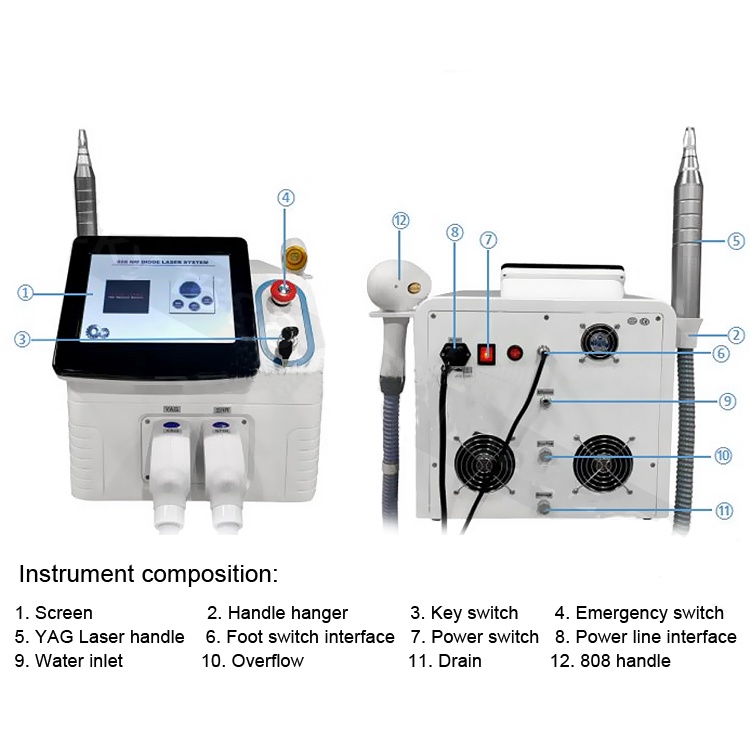

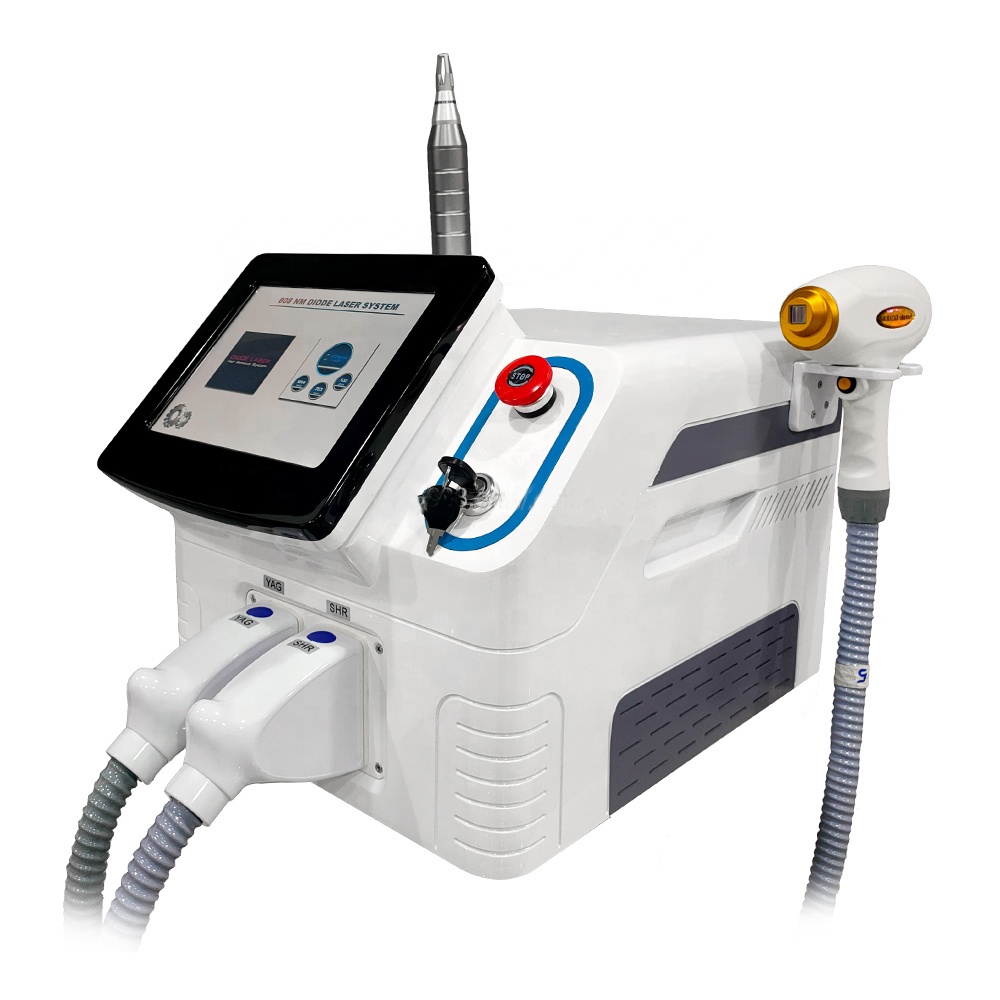

Item：808 laser hair removal machine

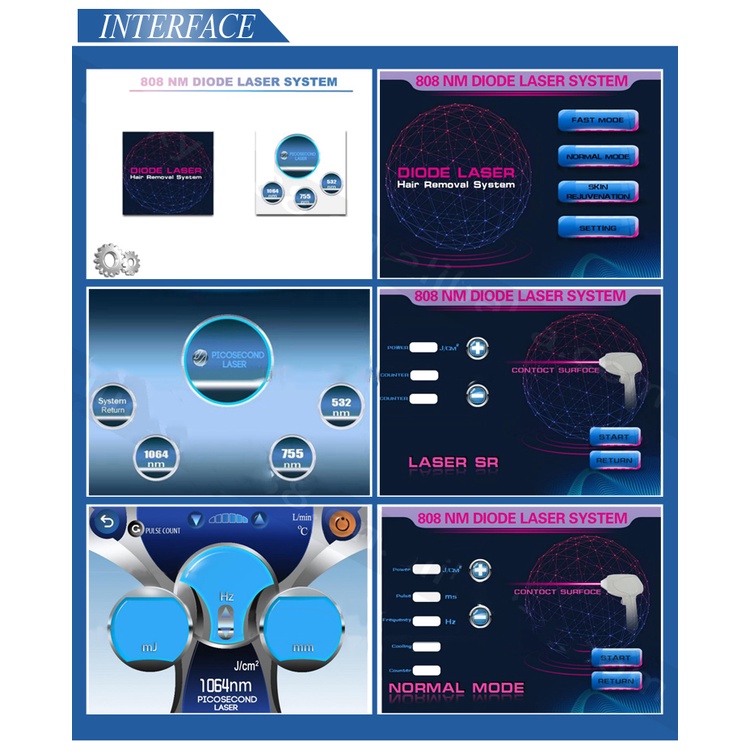

Control method：Color touch screen
Voltage：AC 110-220V/50-60Hz
Handle 1: laser
Power:300W
Wavelength:808nm
Facula size:12*16mm
Energy density:1-100J/CM2
Frequency:1-10Hz
Probe TEMP:-10-5 degrees celsius

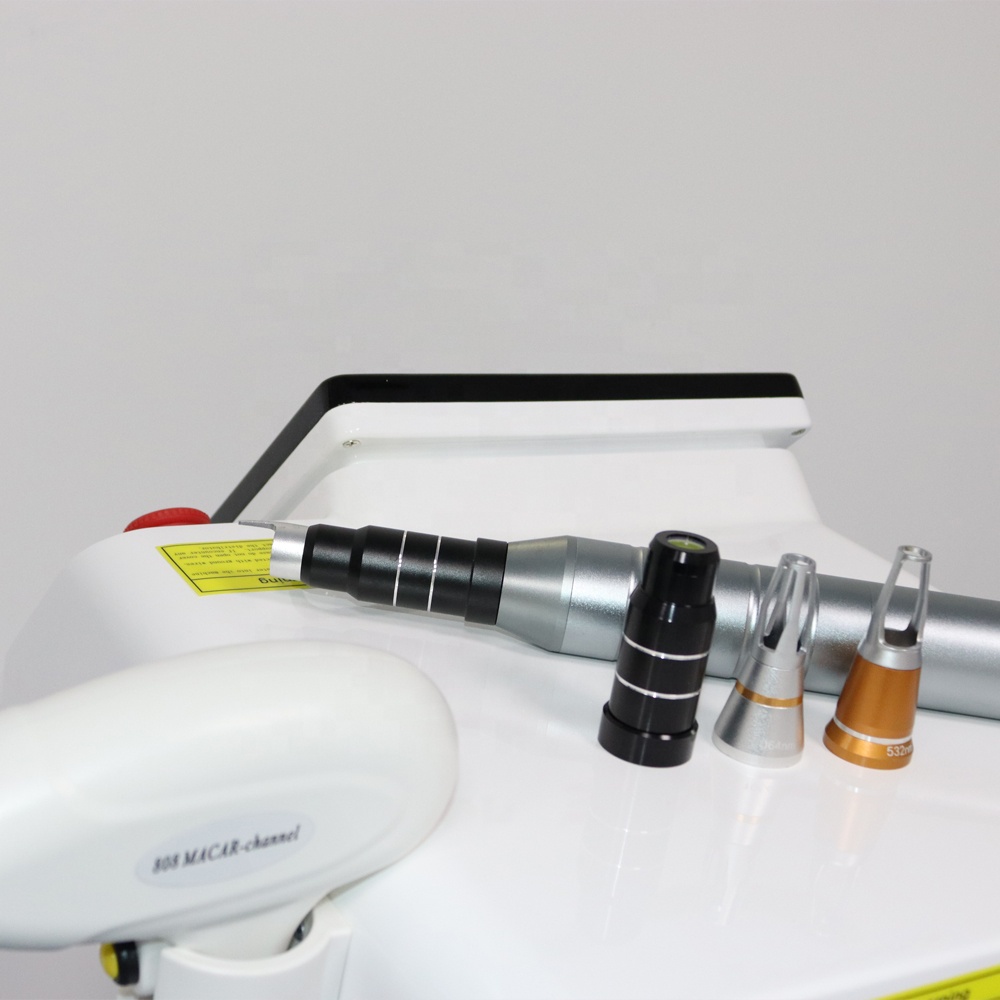

Handle 2: Yag laser
Power:500W
Wavelength:1064nm,532nm,1320nm
Energy density:1-2000mj
Frequency:1-10Hz
Pulse Width:10-20ns

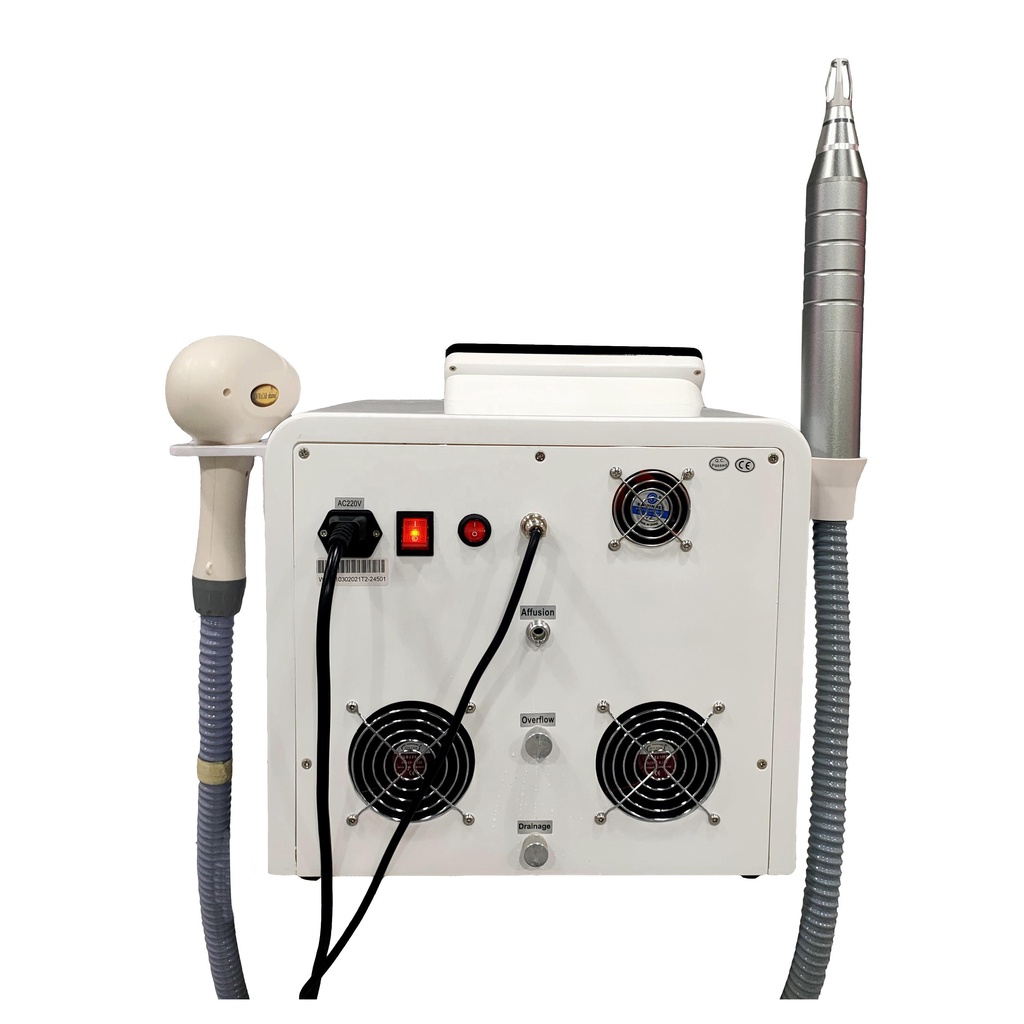

System：Water + Air + Semiconductor cooling system
Packing：62*46*52cm, 32KG
Laser Frequency：1-10Hz
Pulse Width：0.1-7.0ms (SHR)
Cooling System：Water cooled + semiconductor refrigeration + air cooled
