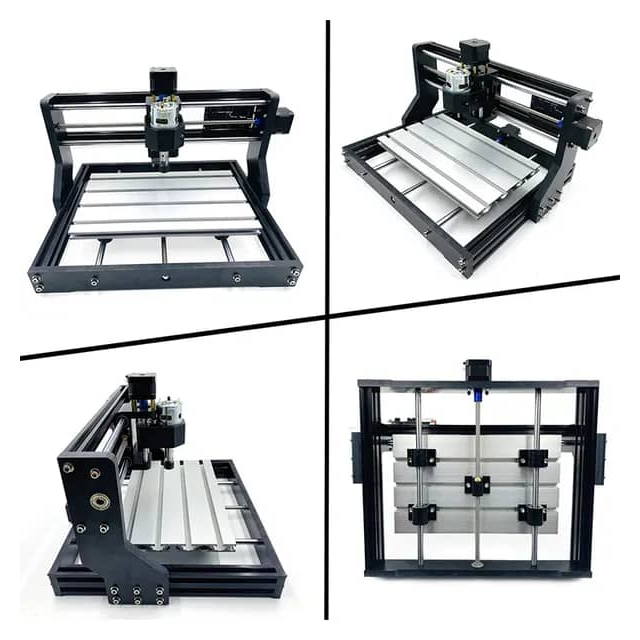

Introducing the CNC3018Pro - a small but mighty DIY mini desktop engraving machine that will take your woodworking and picture engraving skills to the next level! With a compact frame size of 420 * 330 * 240mm, this machine can fit right on your desktop, making it perfect for small workshops and home use.
Equipped with GRBL control software, T8 screw, and a double copper nut to eliminate differences, the CNC3018Pro ensures high precision and accuracy for your projects. It also features a powerful spindle motor of 24V 150W and 12000 RPM, making it efficient and speedy.
But that's not all! The CNC3018Pro also comes with a 42 stepping motor 1.68A 0.55N.M and a 3.175MM chuck specification, allowing you to equip it with various laser heads ranging from 1W to 10W (available separately).
Assembly is a breeze with our included English instructions and assembly videos, and the machine is compatible with various processing instructions such as CNC: G-CODE, TAB, NC, NCC files/laser G-CODE, JPG, DXF files. The CNC3018Pro is also USB compatible and works with Windows XP.win7.win8.win10.
Don't miss out on the chance to take your woodworking and picture engraving skills to the next level. Order the CNC3018Pro today and start creating masterpieces in the comfort of your own home! Please note that additional laser heads are available and can be purchased by contacting our customer service team.
介绍一款让你的木工和图片雕刻技能更上一层楼的产品——CNC3018Pro小型DIY迷你桌面雕刻机！它紧凑的框架尺寸为420 * 330 * 240毫米，可以轻松放置在您的桌面上，非常适合小型车间和家庭使用。
CNC3018Pro配备GRBL控制软件、T8丝杆和双铜螺母，确保您的项目具有高精度和准确性。它还拥有强大的主轴电机24V 150W和12000 RPM，使它高效而迅速。
但这还不是全部！CNC3018Pro还配备了42步进电机1.68A 0.55N.M和3.175MM夹头规格，使您可以配备各种激光头，范围从1W到10W（需另外购买）。
我们提供英文说明书和装配视频，让您轻松组装。CNC3018Pro还支持各种加工指令，如CNC: G-CODE、TAB、NC、NCC文件/激光G-CODE、JPG、DXF文件。CNC3018Pro也兼容USB，可在Windows XP.win7.win8.win10系统上使用。
不要错过这个让你的木工和图片雕刻技能更上一层楼的机会。立即订购CNC3018Pro，从家中开始创作杰作！请注意，我们还提供多种功率的激光头可供选择，如果需要，请联系我们的客户服务团队。

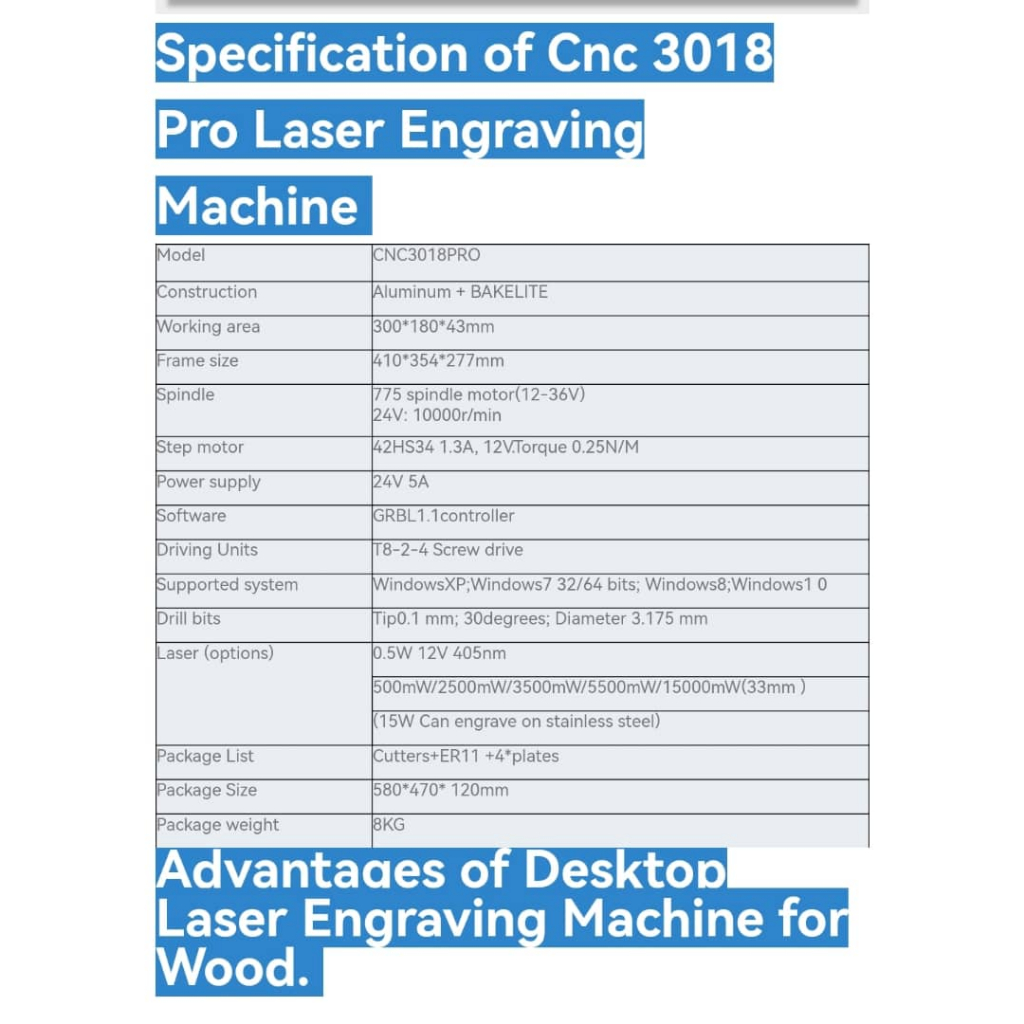

Model: CNC3018pro

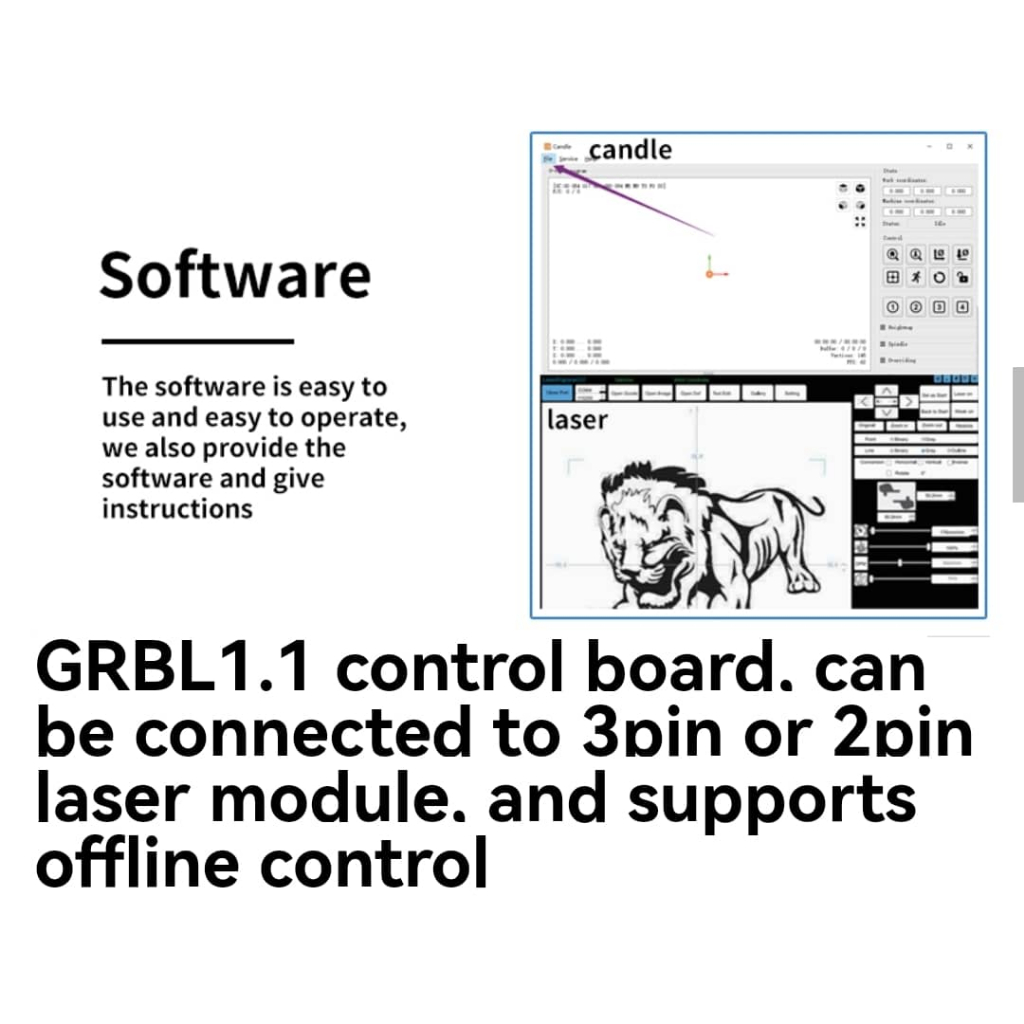

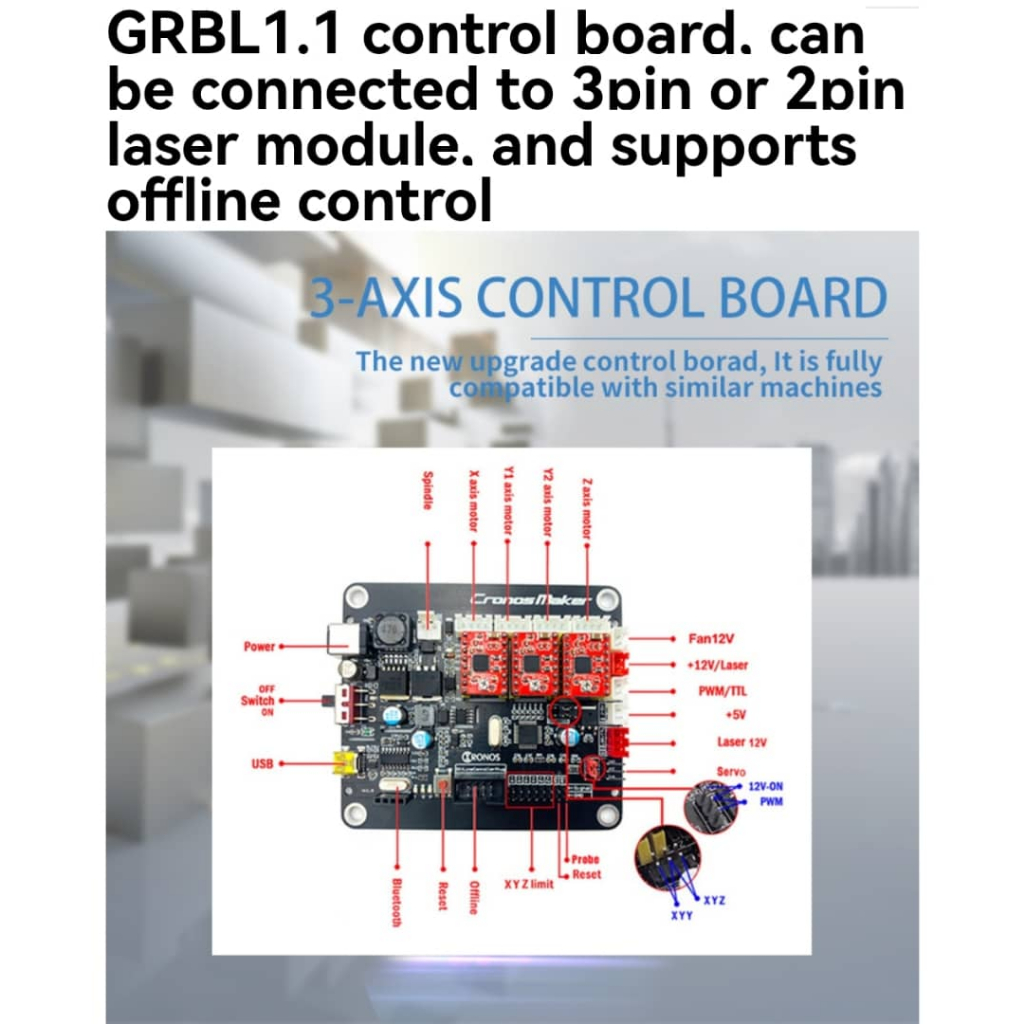

Control software: GRBL control
Frame size: 420 * 330 * 240mm (excluding the protruding part of the motor)
Working range: 300 * 180 * 40mm
Screw: T8 screw, lead 4mm, double copper nut to eliminate the difference
Stepping motor: 42 stepping motor 1.68A 0.55N.M
Spindle: Spindle motor 24V 150W 12000 rpm
Chuck specification: ER11 3.175MM (0-7mm can be equipped)
Body material: all aluminum + bakelite
Laser: 1W 2.5W 3W 5.5W 7W 10W optional Laser heand
Notice Laser head is not including into the price of the mahcine ,Please kindly contac customer service to make sure the price of it and which specification you need
Power supply: 24V 10A, (220V)
System requirements: Windows XP.win7.win8.win10
Interface: USB
Processing instructions: CNC: G-CODE, TAB, NC, NCC files/laser G-CODE, JPG, DXF files

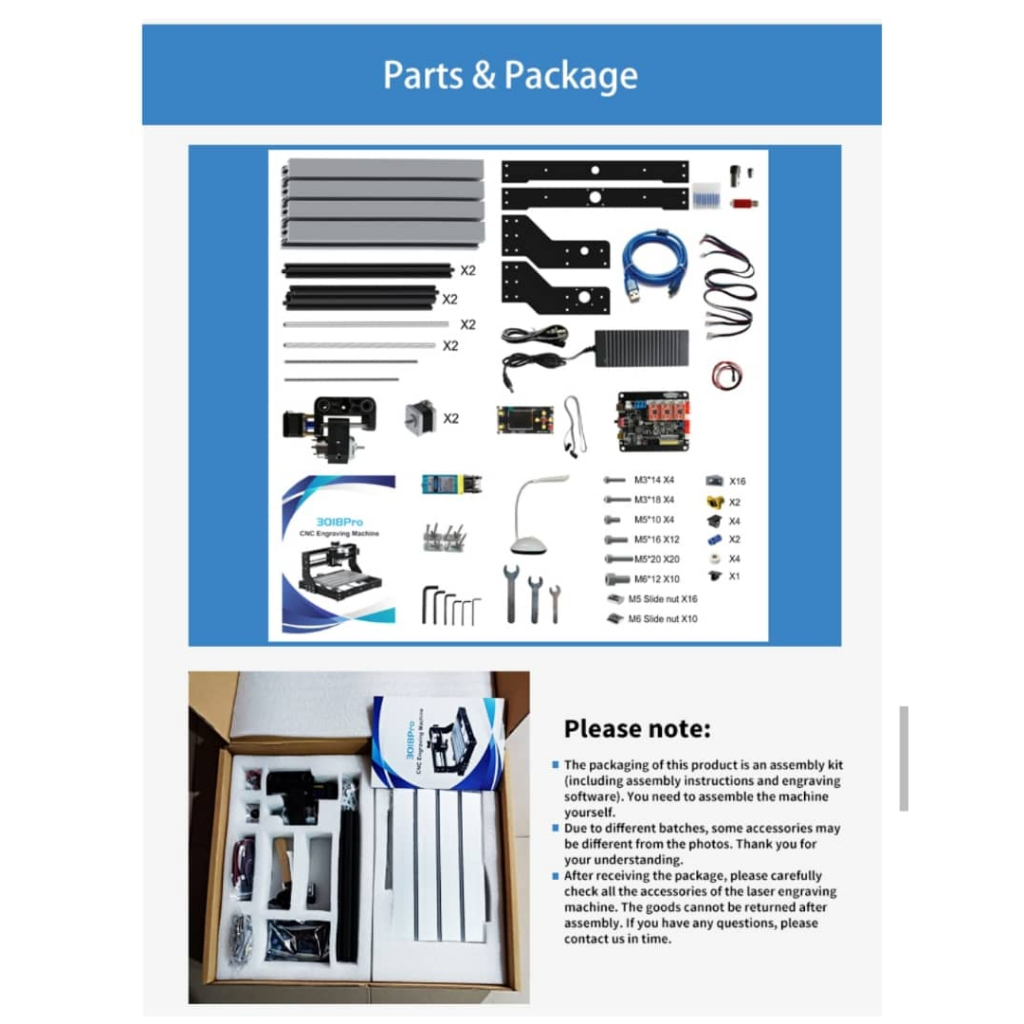

Note: The machine needs to be assembled, we will provide English instructions and assembly videos. The machine is standard configuration, if you need additional laser, please contact customer service, thank you!
