Features & Details

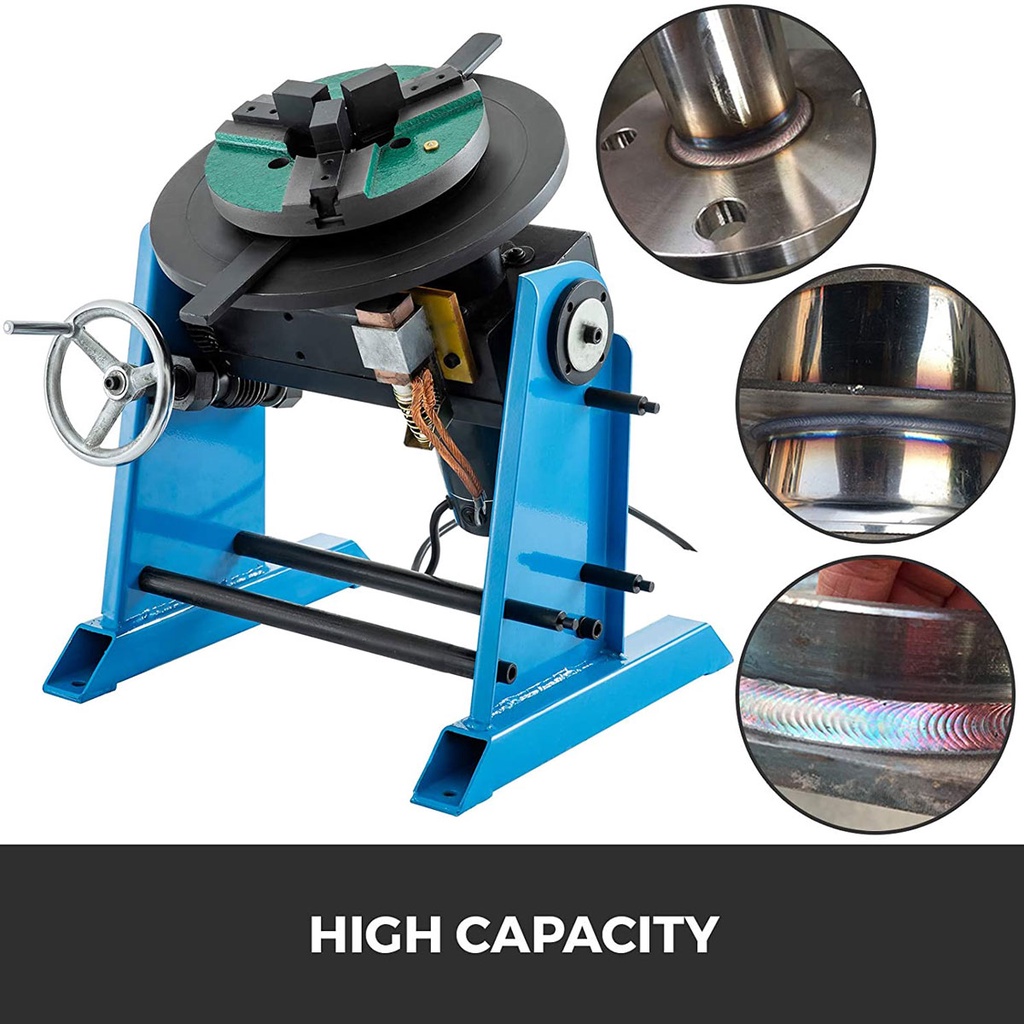

【WORKING CAPACITY: 50KG/25KG】- Horizontal/Vertical loading capacity:50kg/25kg; Working table diameter/heigh: 310mm/380mm.Made of stainless steel, features high quality and durablility.

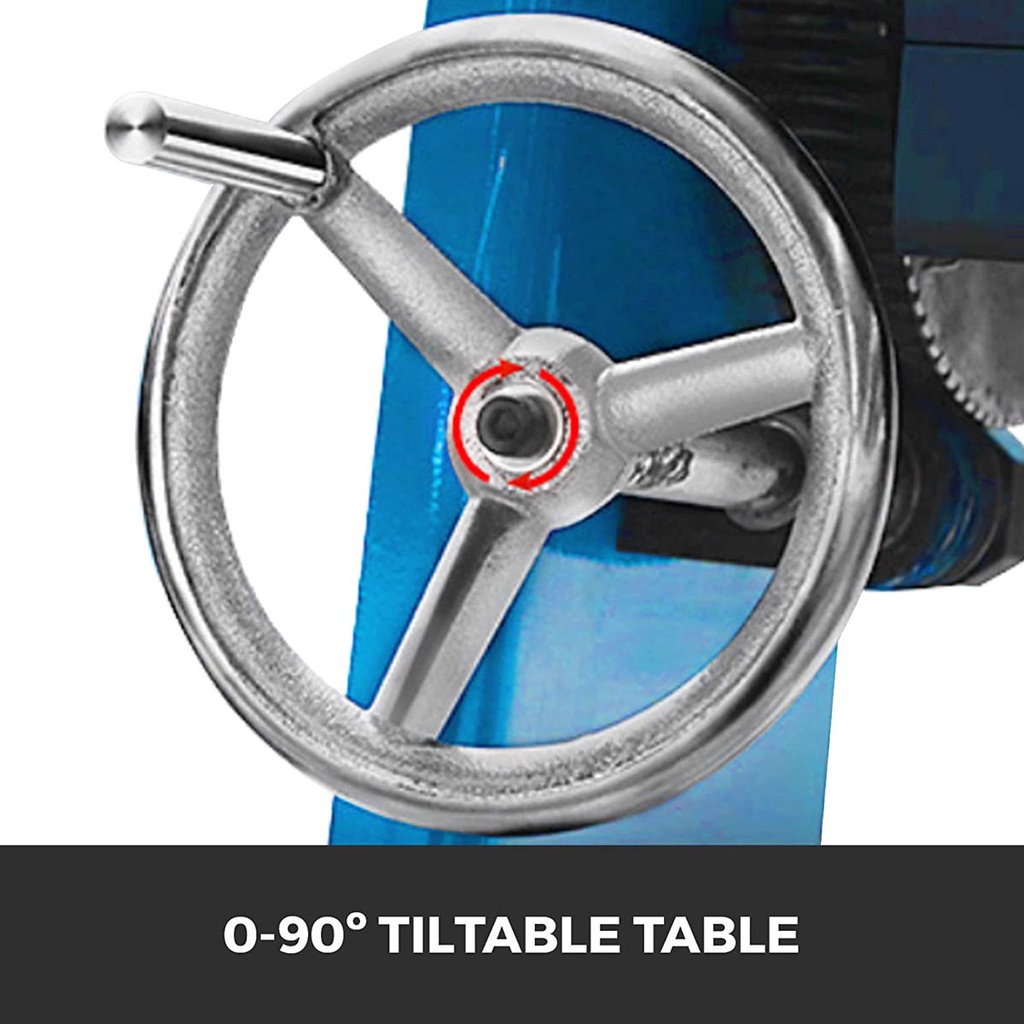

【0-90º TILTABLE TABLE】- The turning structure of worm and gear has the function of self-lock, and the worktable can be turned steplessly between 0-90°. It also can be fixed at any angle you want.

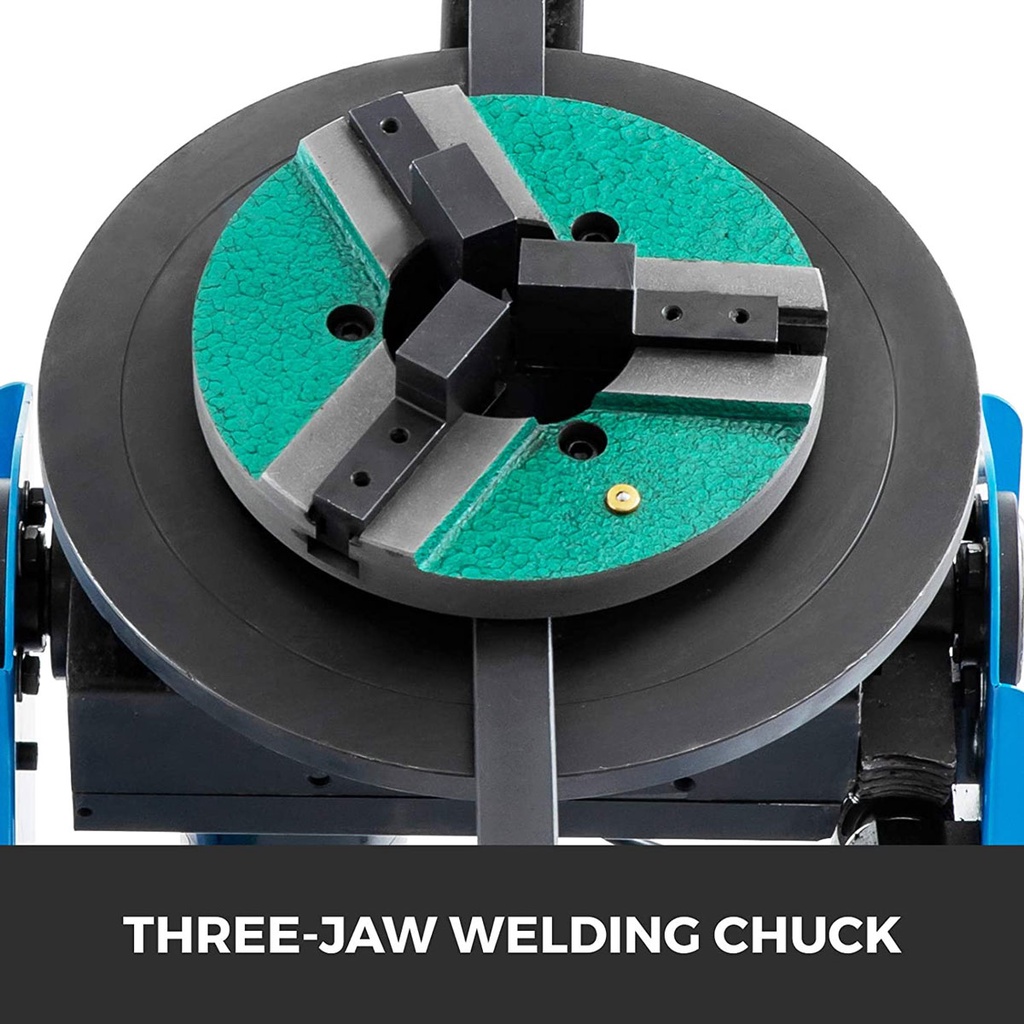

【THREE-JAW WELDING CHUCK】- Three jaws are reinforced to prevent the weldment pieces from moving and falling.It is upgraded to be more accurate and more practical.
【STEPLESS SPEED CONTROL】- Using foot switch to control table rotation, the speed is regulated by the knob on the machine(0.5-5r/min stepless speed regulation).
【TIME-CONTROLLER】- Time-controller can be furnished to control the working condition and working time, which can achieve the linkage of the positioner and welder.
Specifications

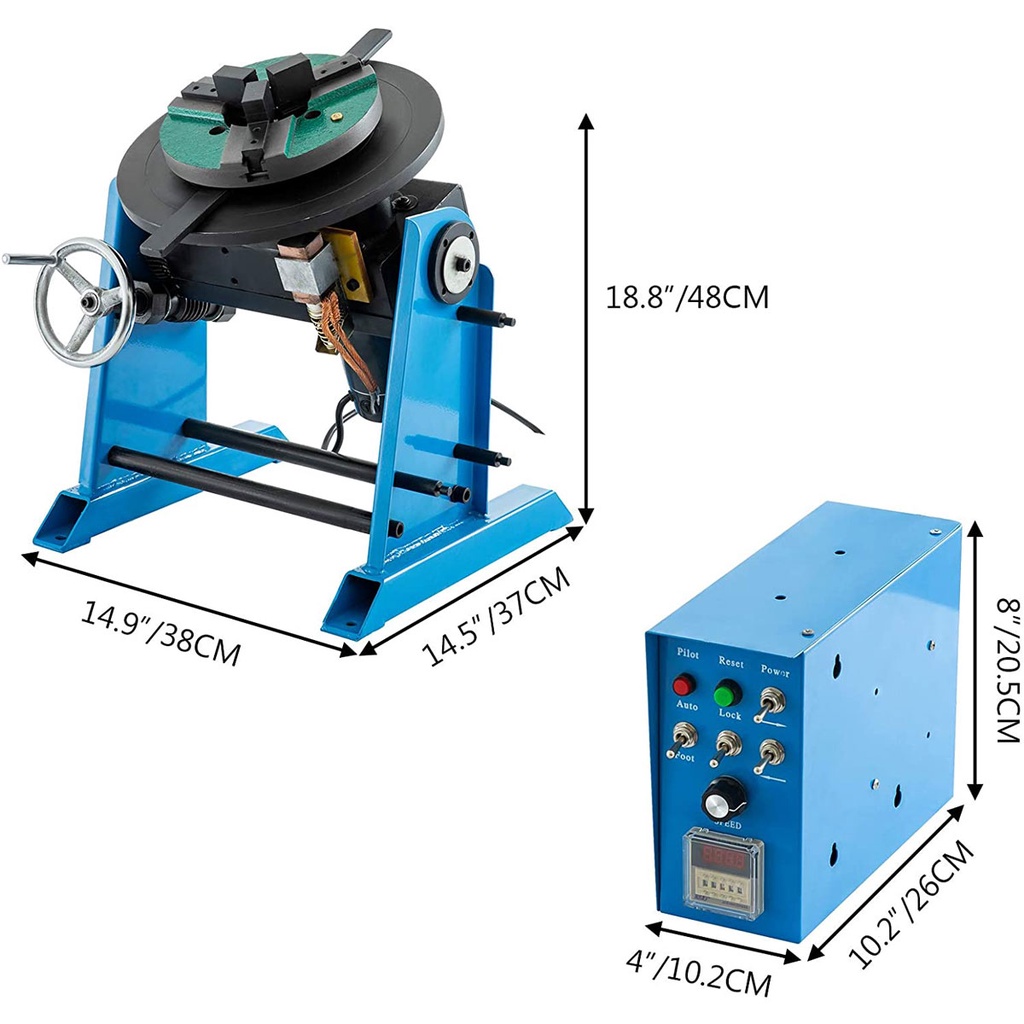

Horizontal Loading Capacity: 50kg
Vertical Loading Capacity: 25kg
Working Table Diameter: 310mm
Working Table Height: 380mm
Working Table Tilting Angle: 0-90°
Working Table Rotation Speed: 0.5-5r/min
Package Content

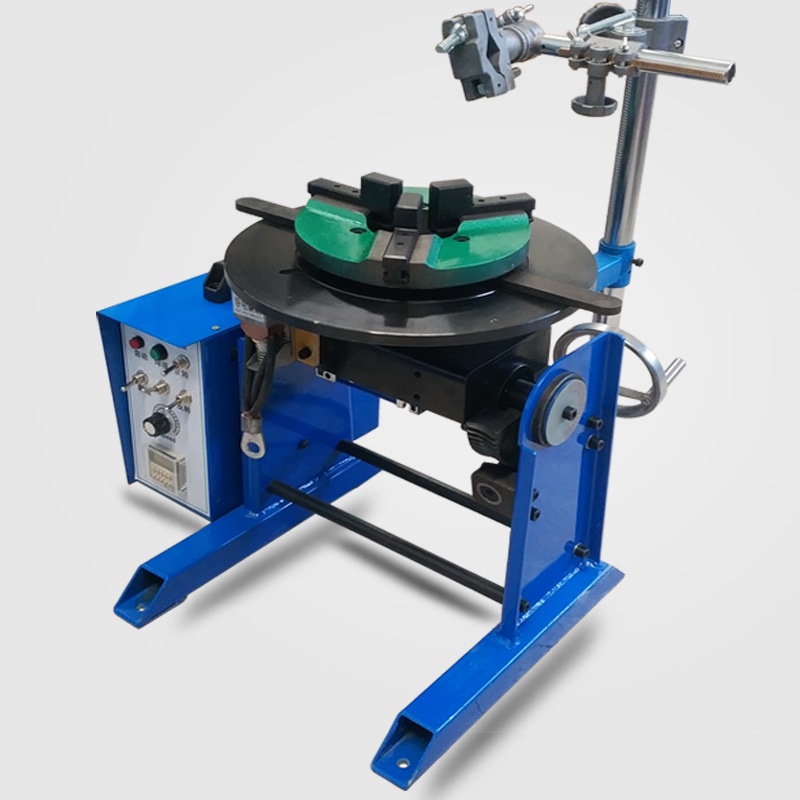

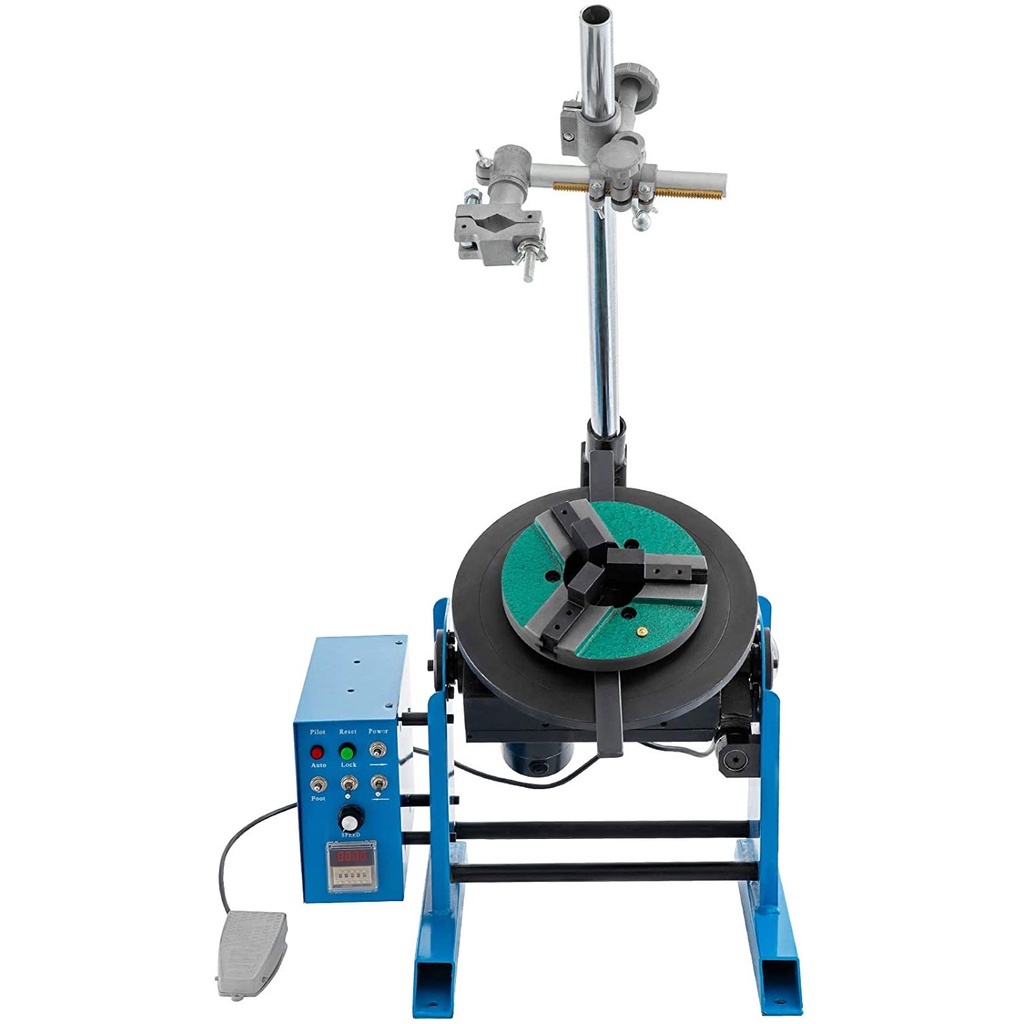

1 X 50 KG Welder Positioner
1 X Rotary Chuck
1 X Welding Gun Supporter
