Certification : None
Origin : CN(Origin)
Input Voltage : 380(V)
Rated Current : 9(KVA)
Usage : Cutting sheet metal

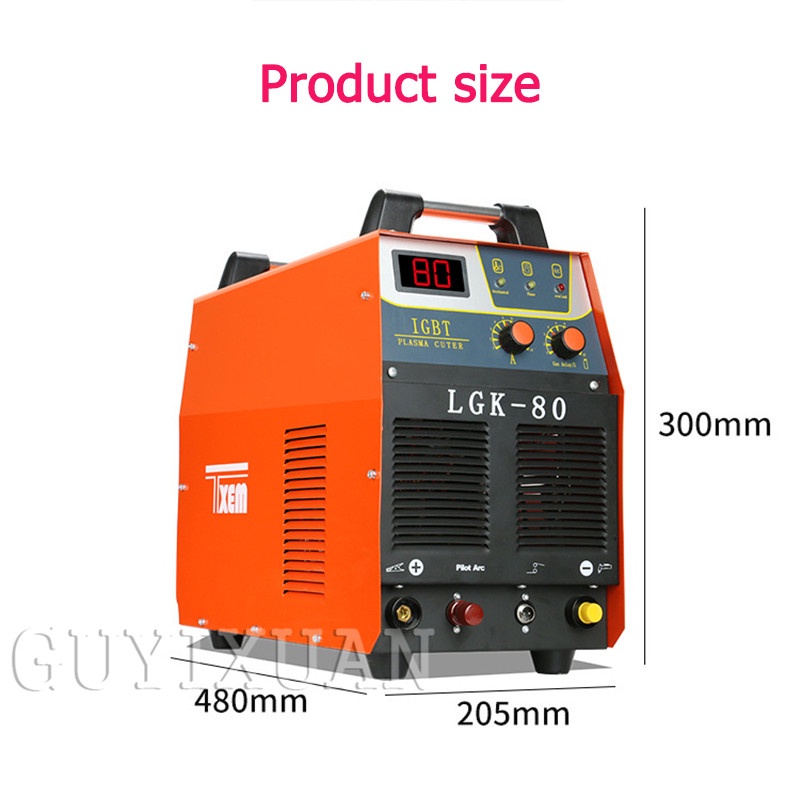

Dimensions : 480*300*205MM
Model Number : GUYX-1-148
Product parametersProduct Name: Inverter air plasma cutting machine 380V
welding machine Model: GUYX-1-148 plasma cutting machine
Working form: inverter welding
Welding method: arc type
Current: DC
Style: portable
Drive form: automatic
Protective gas type: air Target object: metal
Input voltage: 380 (V)
Frequency: 50/60 (Hz)
Rated input power capacity: 9 (KVA)
No-load voltage: 75 (V)
Output current adjustment range: 20-80 (A)
Rated load duration: 60 (%)
Power: 11.3
Power factor: 0.93
Efficiency: 85%
Insulation class: F
Shell protection rating: IP21S
Dimensions: 480*300*205
Weight: 20 (kg)
Uses: cutting metal sheet Tool net weight: 20 (Kg)
Set: LGK-80 plasma cutting machine - standard
