Product parameters
Input voltage: AC 220V
Heating peak: ZW-300 420 ° C, other 250 ° C
Heating width: 30-240cm
Bending material thickness: 1mm-6mm

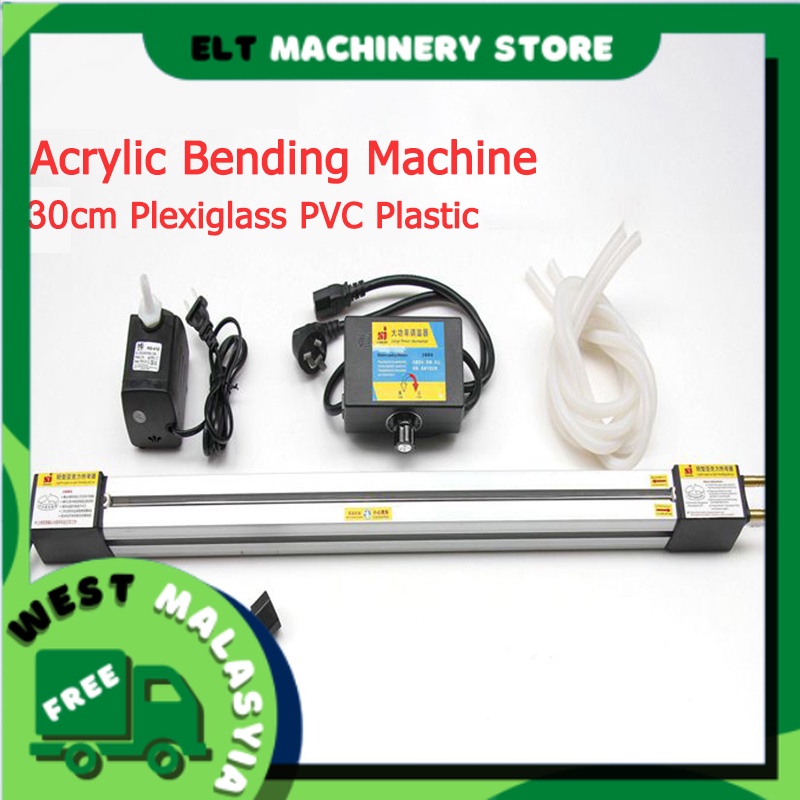

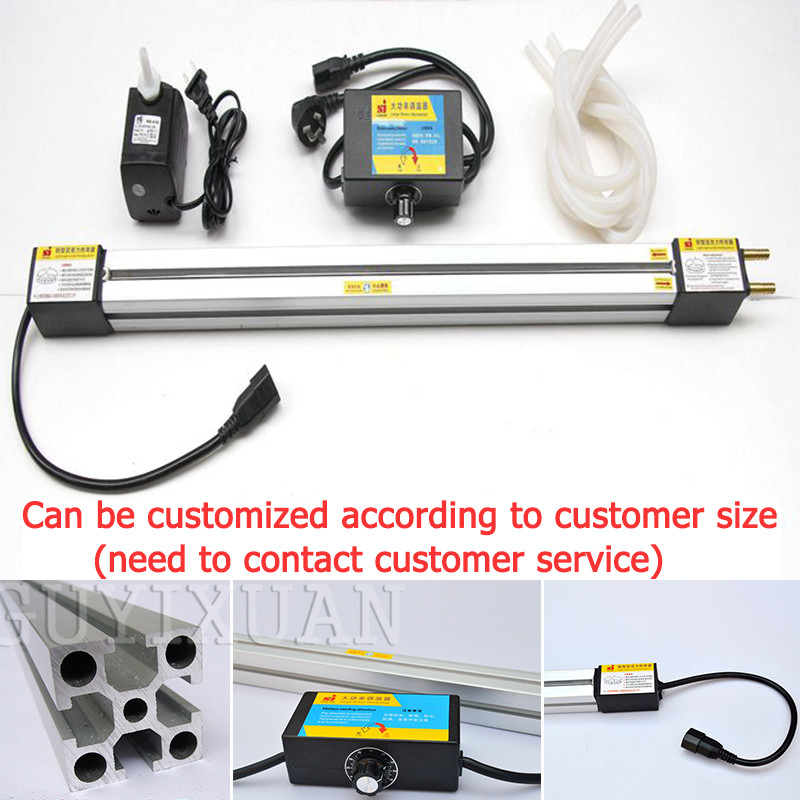

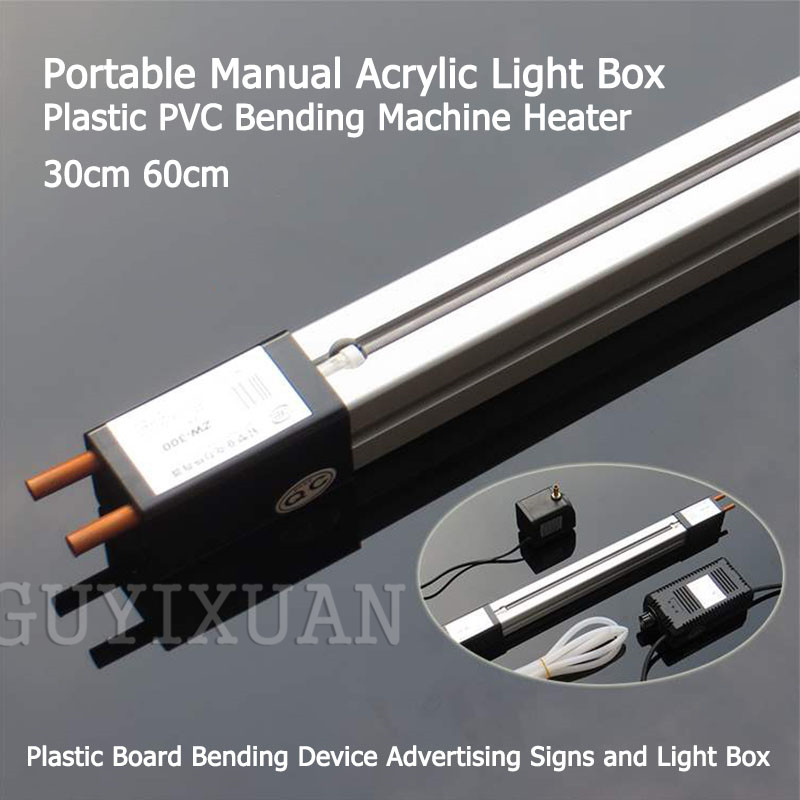

Product Name: 60cm organic plate hot bending machine
Model: SJ-60
Effective width: 60cm
Power: 800W
Input voltage: AC 220V
Heating peak: ZW-300 420 ° C, other 250 ° C
Heating width: 30-240cm
Bending material thickness: 1mm-6mm
Wide range of applicable materials: such as acrylic, organic board, PVC material and various thermoplastic materials
Instructions for use:

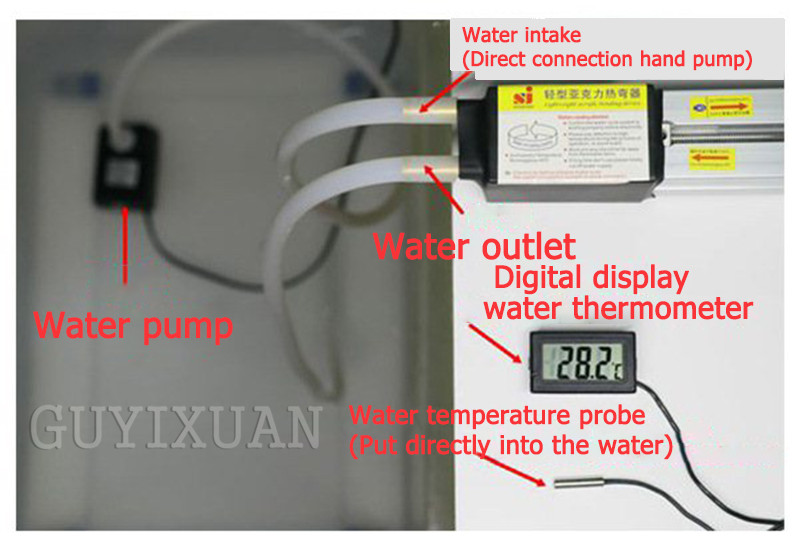

1. Bring a cooling box (barrel) of more than 30 liters. First connect the main body of the heater and the submersible pump with a silicone grease hose, place the submersible pump in the cooling water bucket, turn on the power of the water pump, and wait for water to circulate out. (Note: The water temperature of the machine will continue to rise when the machine works for a long time. Please change the cold water immediately. The circulating water temperature should not drop sharply. When the water temperature exceeds 50 degrees, the power of the heater should be cut off in time, and the circulating water will be replaced later)
2. After connecting the thermostat to the hot bender, connect it to 220V mains, adjust the temperature control knob clockwise to increase the temperature, otherwise it is to decrease the temperature. It is not advisable to rotate too fast during adjustment to avoid damage to the temperature adjustment components. (Note: It is advisable to adjust the thermostat slowly until the heating tube is slightly red. Excessive temperature will cause damage to the hot bending material and affect the service life of the hot bending machine).
3. When the heating tube reaches the required temperature, the plastic plate that needs to be bent can be placed on the heating tank, and the plate can be bake until it can be folded by hand, and then various angles can be bent. Depending on the material , The setting time is different, please determine the setting time according to the actual situation.
Safety Precautions:
1. The heating of the product produces high temperature, and the heating components should avoid contact with human skin.
2. Please pay attention to the use environment and stay away from flammable and explosive materials.
3. Please cut off the power in time if it is not used for a long time.
Please read the tips carefully before buying. If you have any questions, please feel free to contact us.
