Features & Details

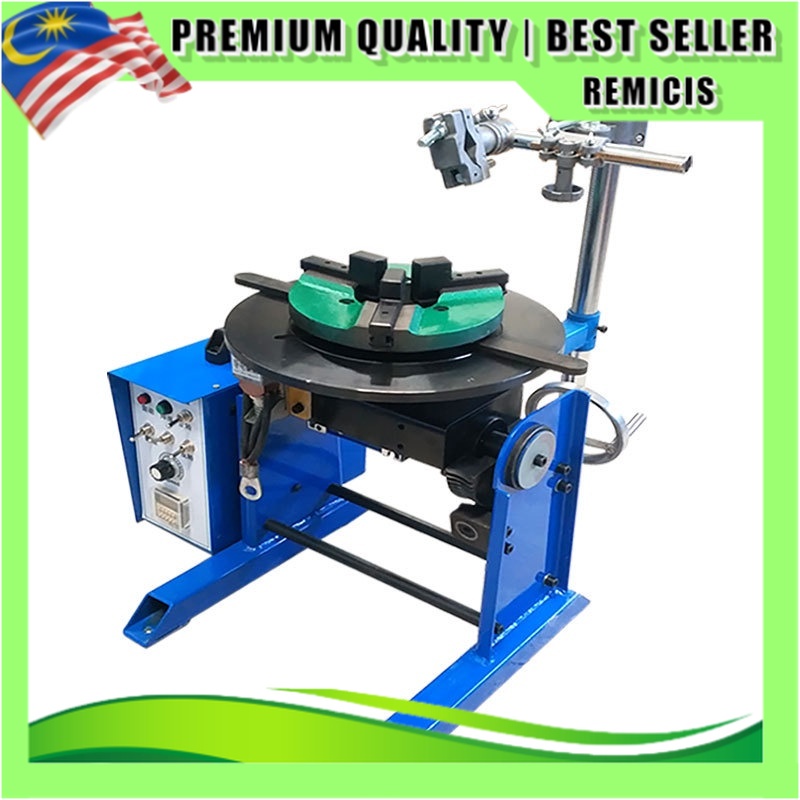

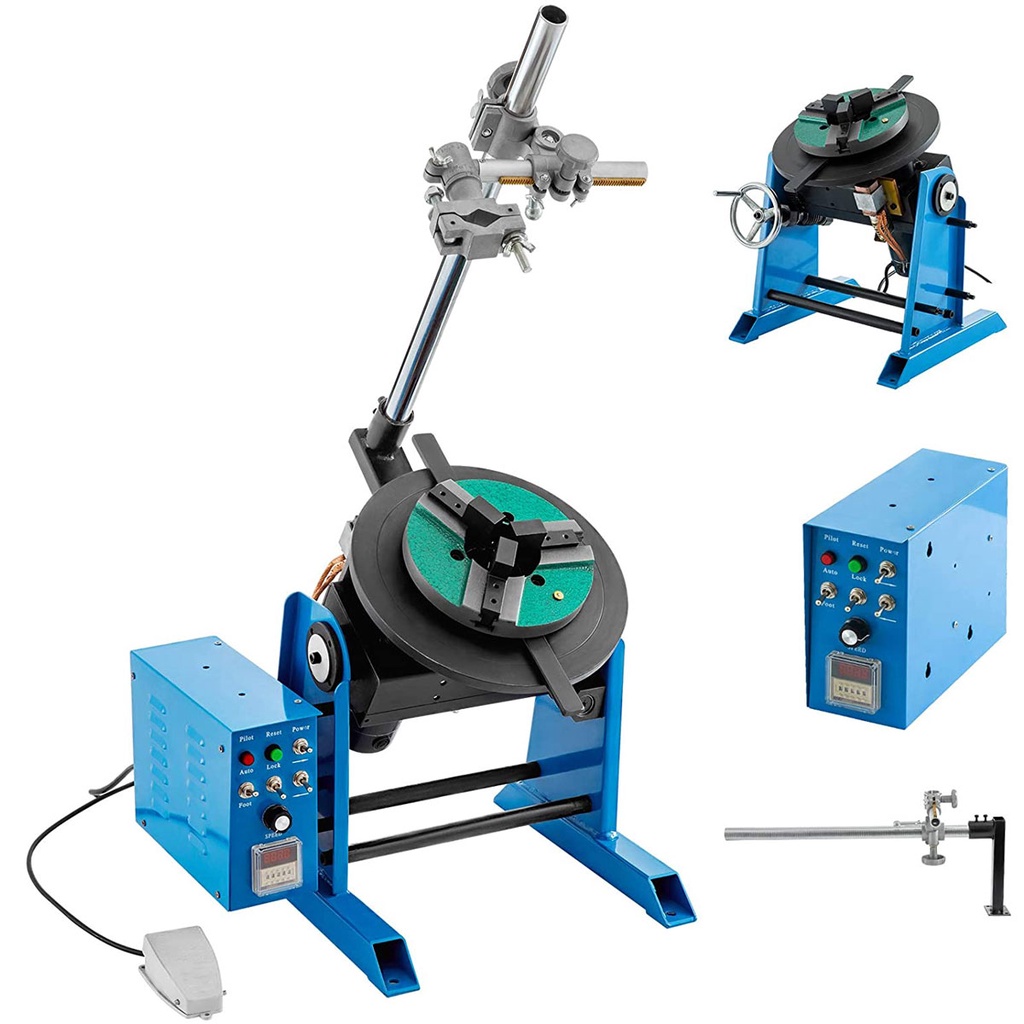

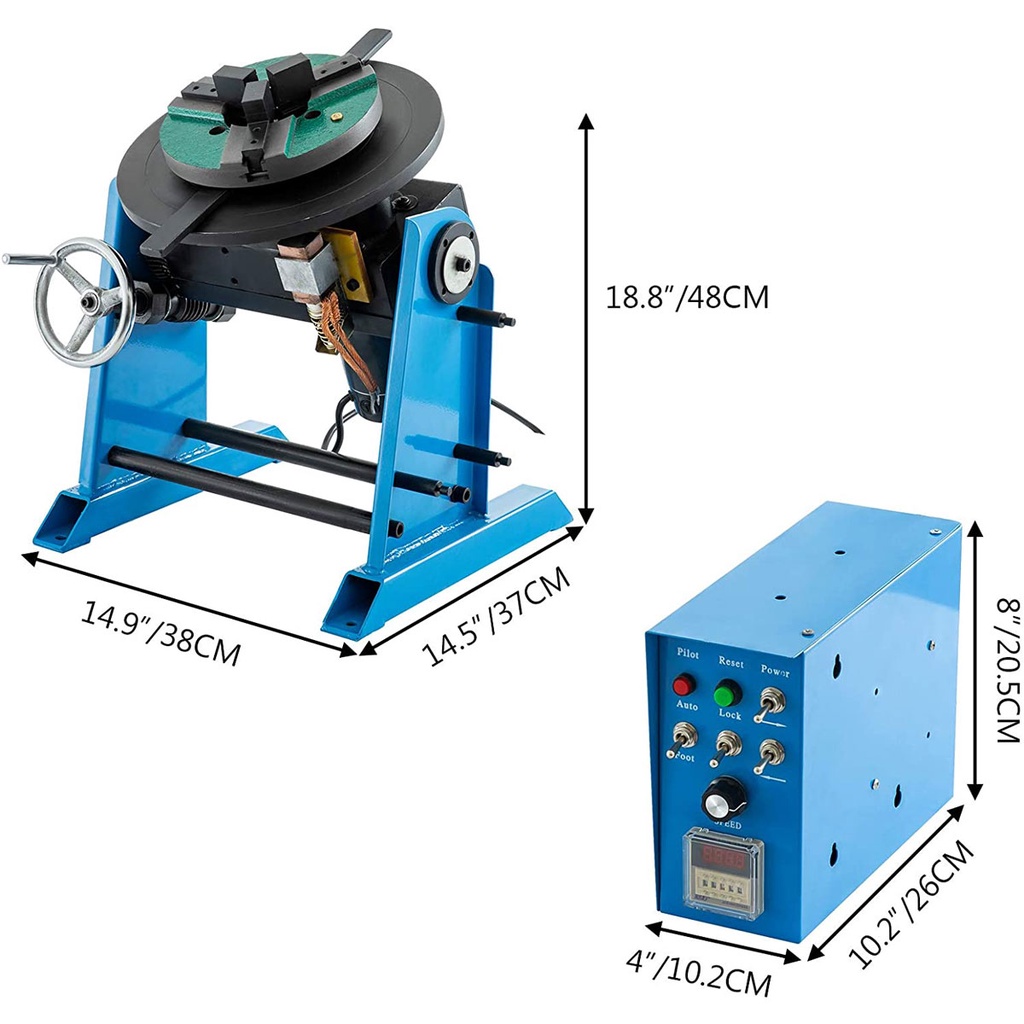

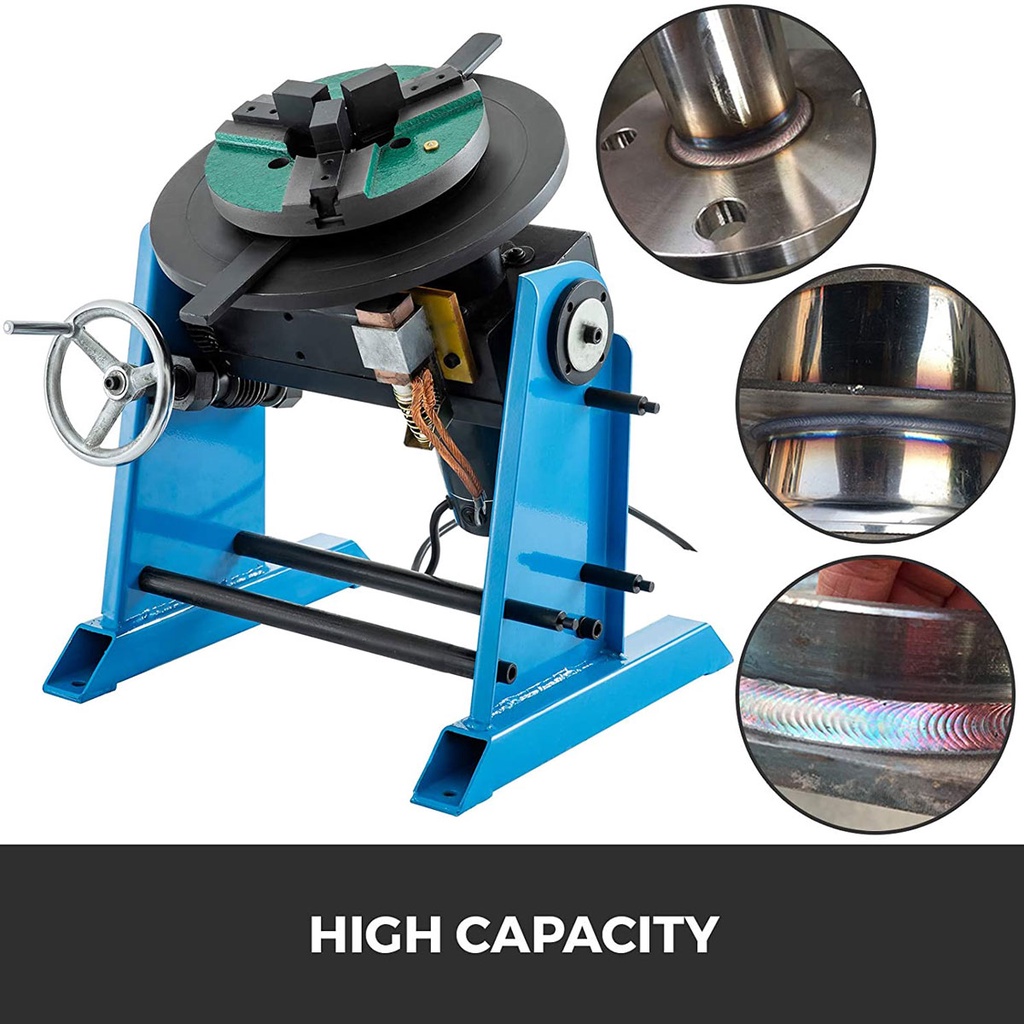

【HIGH LOADING CAPACITY】- The horizontal/vertical loading capacity can reach up to 30 kg / 66 lbs horizontally and 15 kg / 33 lbs vertically; The working table diameter/height: 310 mm/380 mm (12.2/15.0 inches). The welding positioner is made of premium steel that offers you long service life and a stable working environment.
【0-90° TILTABLE TABLE】- The rotating structure of the table has a self-locking function, and the worktable can be steplessly rotated between 0 and 90° and be fixed at any angle with a tilt lock wrench.

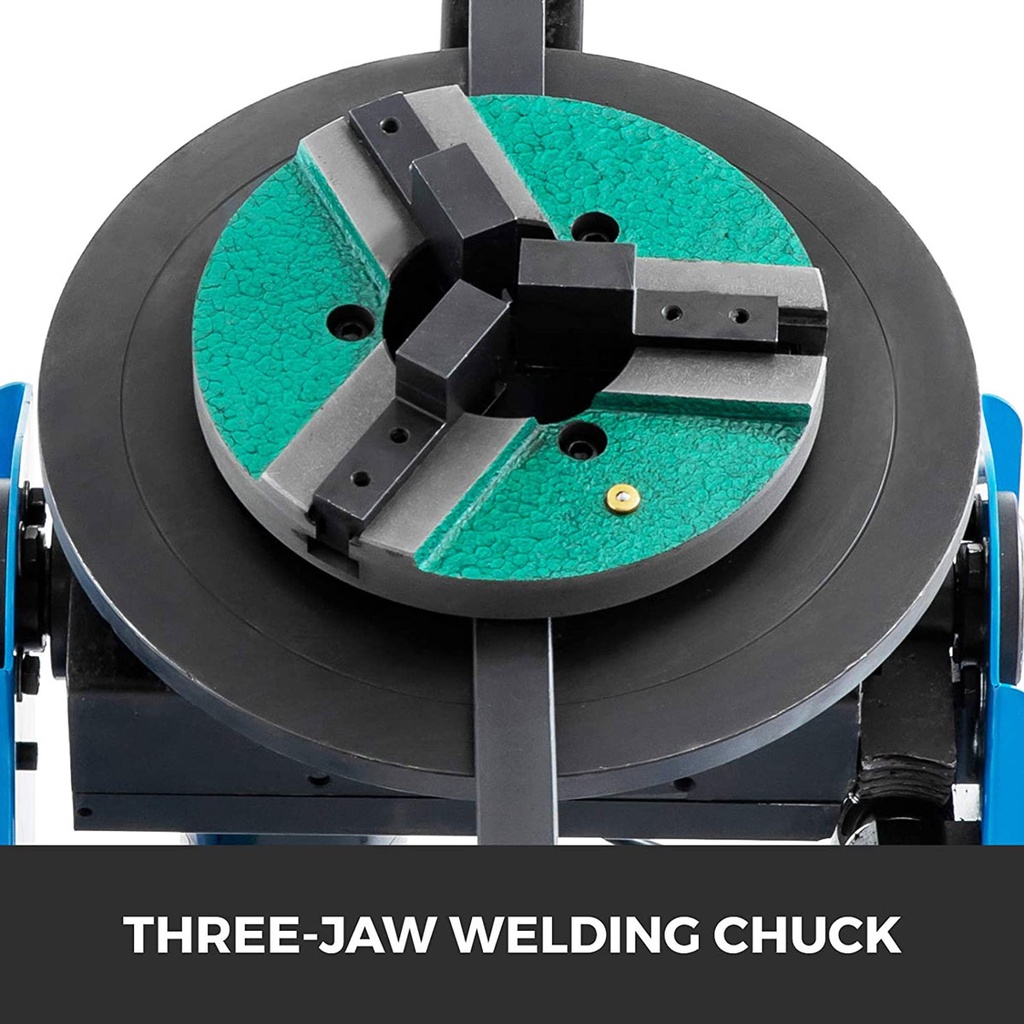

【TIGHT WELDING CHUCK】- The welding chuck has three jaws that are reinforced to fix the weldments and prevent them from moving and falling. In addition, the chuck has been improved to a better version for more accuracy.

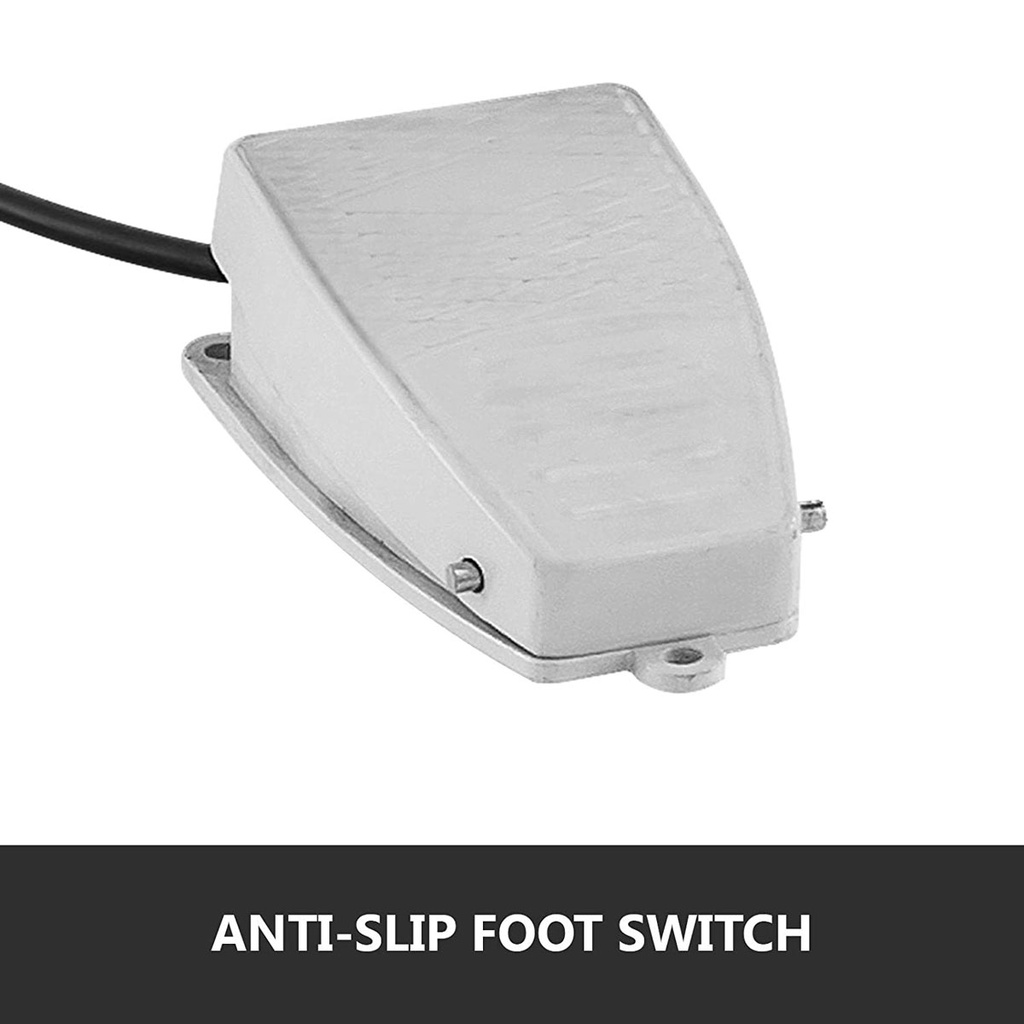

【SMOOTH ROTATION & SPEED CONTROL】- You can control the table rotation by the footswitch, and the rotation speed can be adjusted through the knob on the control box (working table speed: 1-15r/min). Large adjustment range and high adjustment precision will be served.

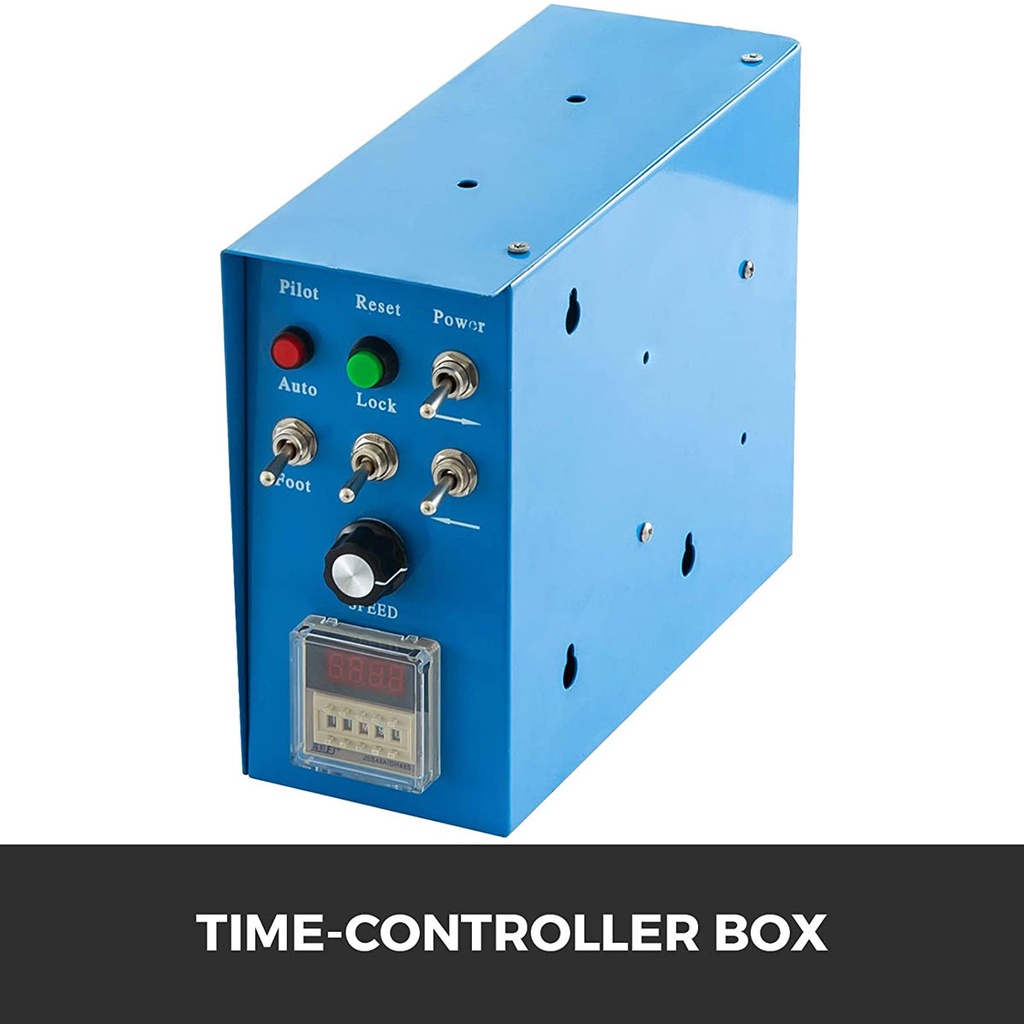

【MULTIFUNCTIONAL BOX】- The time controller is a box that achieves the linkage of the positioner and welder. Moreover, it can be furnished to set a time period to make the welding positioner's work more precise and energy-saving.
