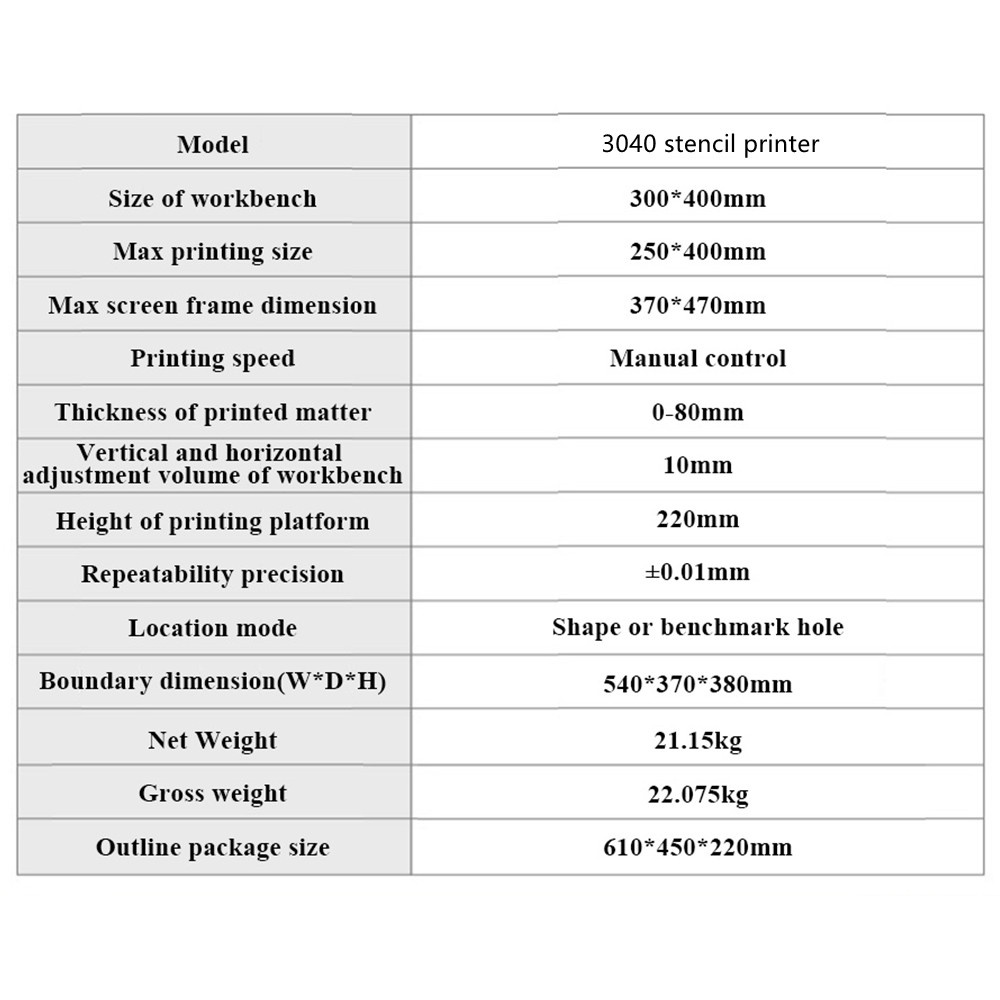

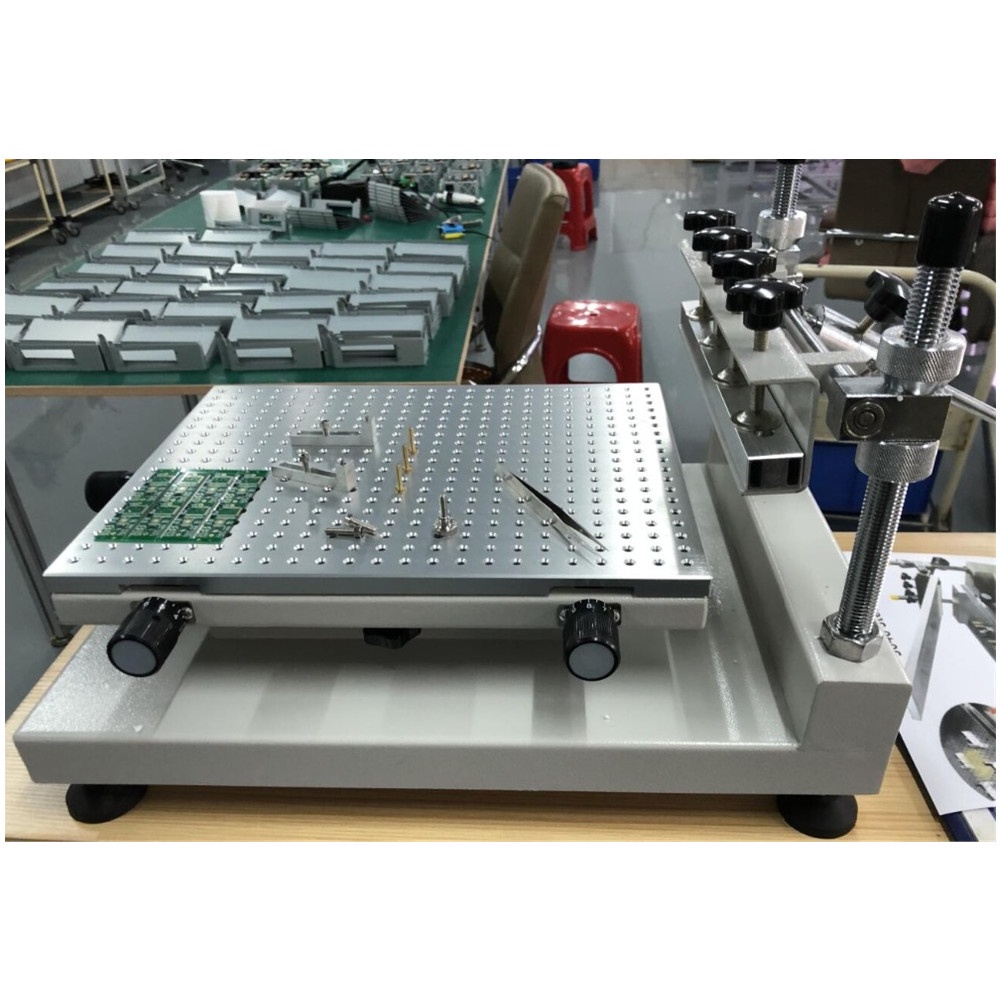

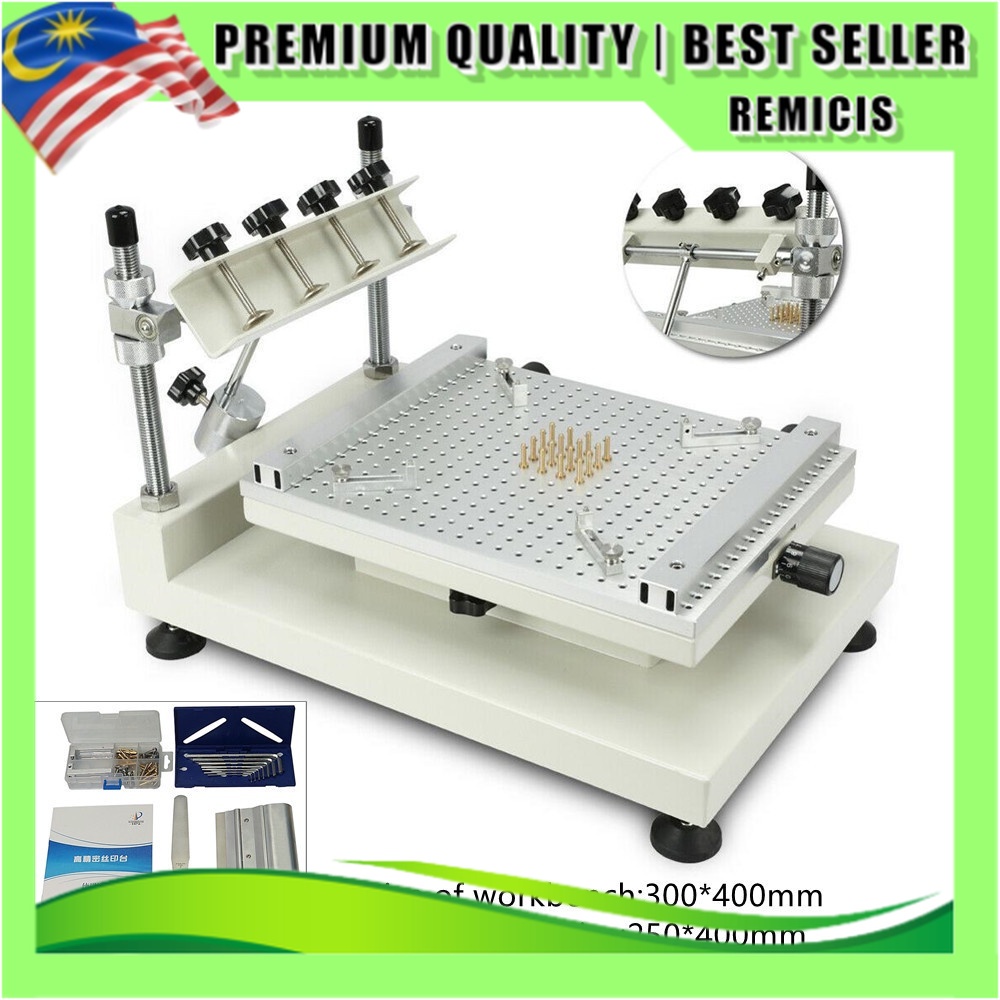

3040 high precision stencil printer is mainly designed for the requirement of the single or double-side PCB soldering paste and red glue printing, the working platfore is processed by cellular positional hole with high-quality aluminum and the pedestal is soldered by thick steel plate, steadiness and durability.
Product Features:
This machine is mainly designed for requirements of single ordouble-sided circuit board solder cream or red glue printing:

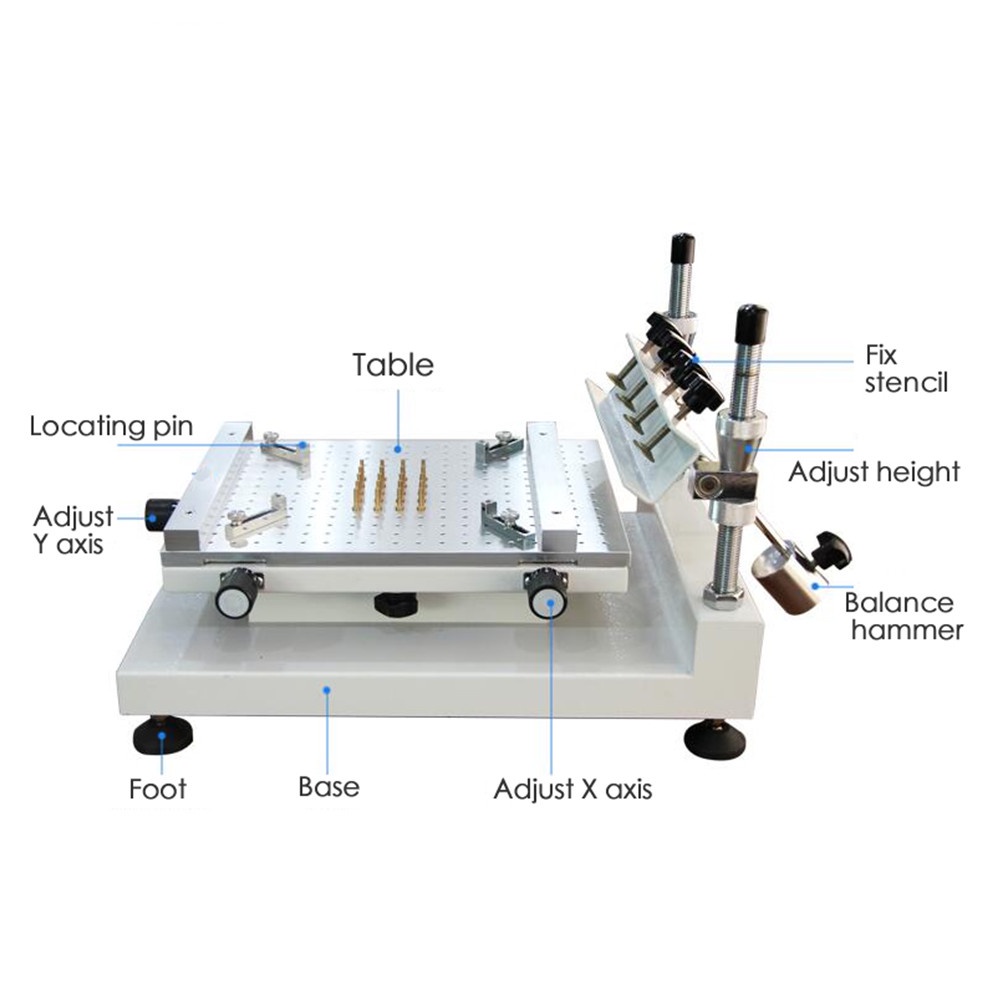

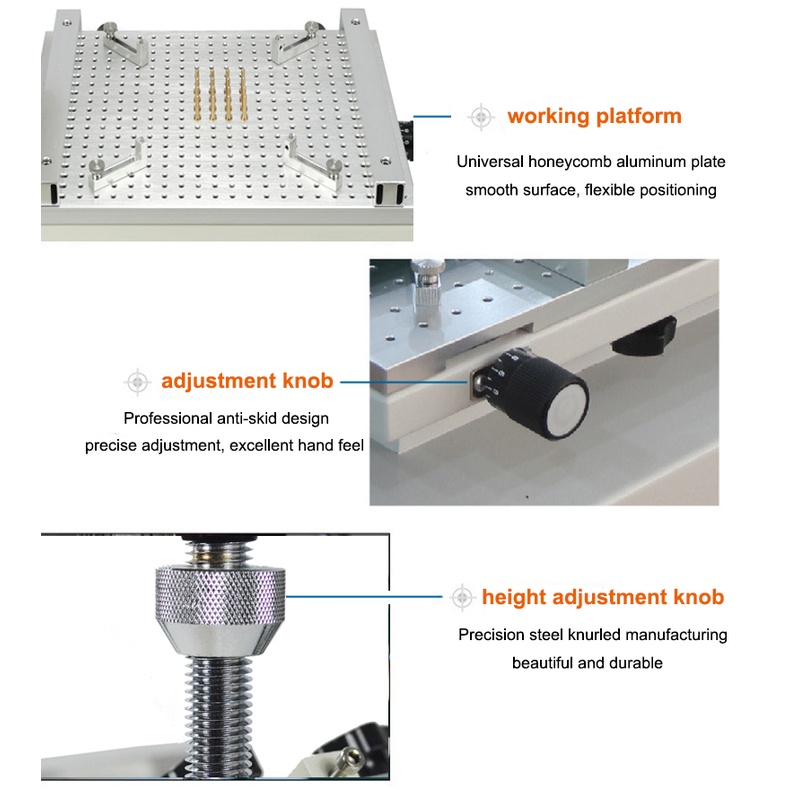

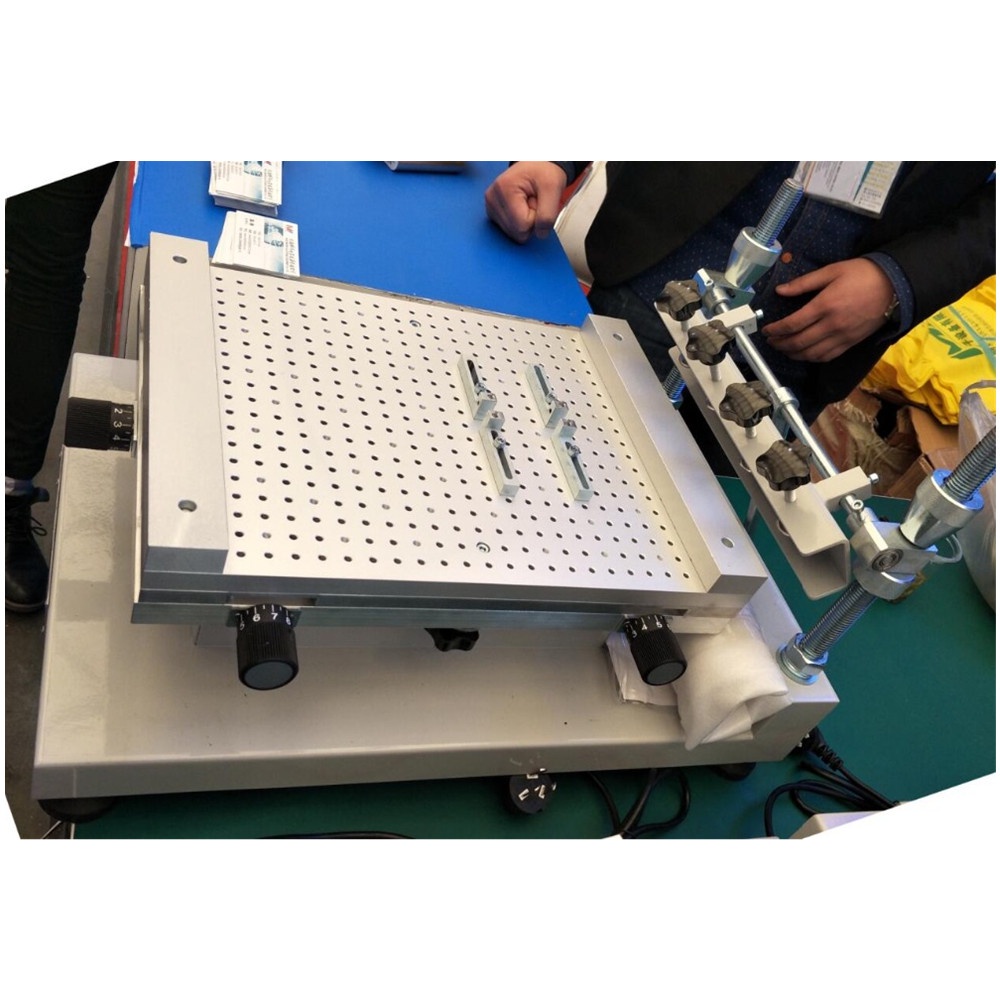

■Universal honeycomb plate, movable thimble, movable supporting block, flexiblepositioning PCB, convenient to print double-side PCB.
■The base uses thick plate and forming welding, strong solid and wear well.
■Circuit board positioning adopts positioning needle, fixed rod and fixed plate for positioning, which can ensure convenient positioning and accuracy of repeated operation.
■Make ready mode is made through stencils movement and combined with fine adjustmentand correction of X and Y axis in printing platform, which is convenient and quick.

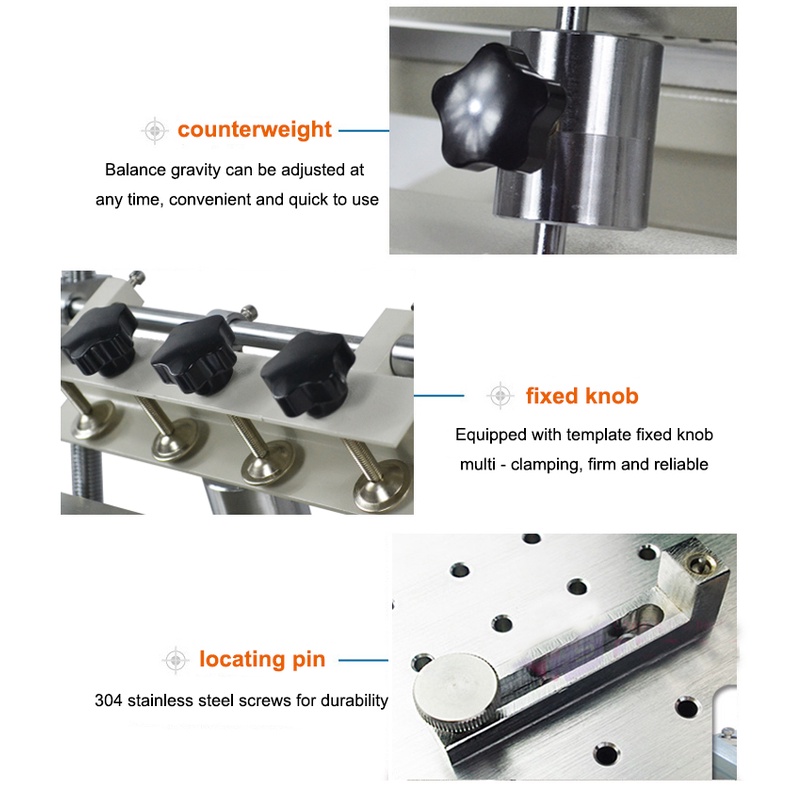

■Steel mesh stent uses spiral screw, can be adjusted up and down,convenient to control PCBthickness and the quantity of printing solder paste.
■Printing screw board fixed by four rotary knobs with pressure plate.

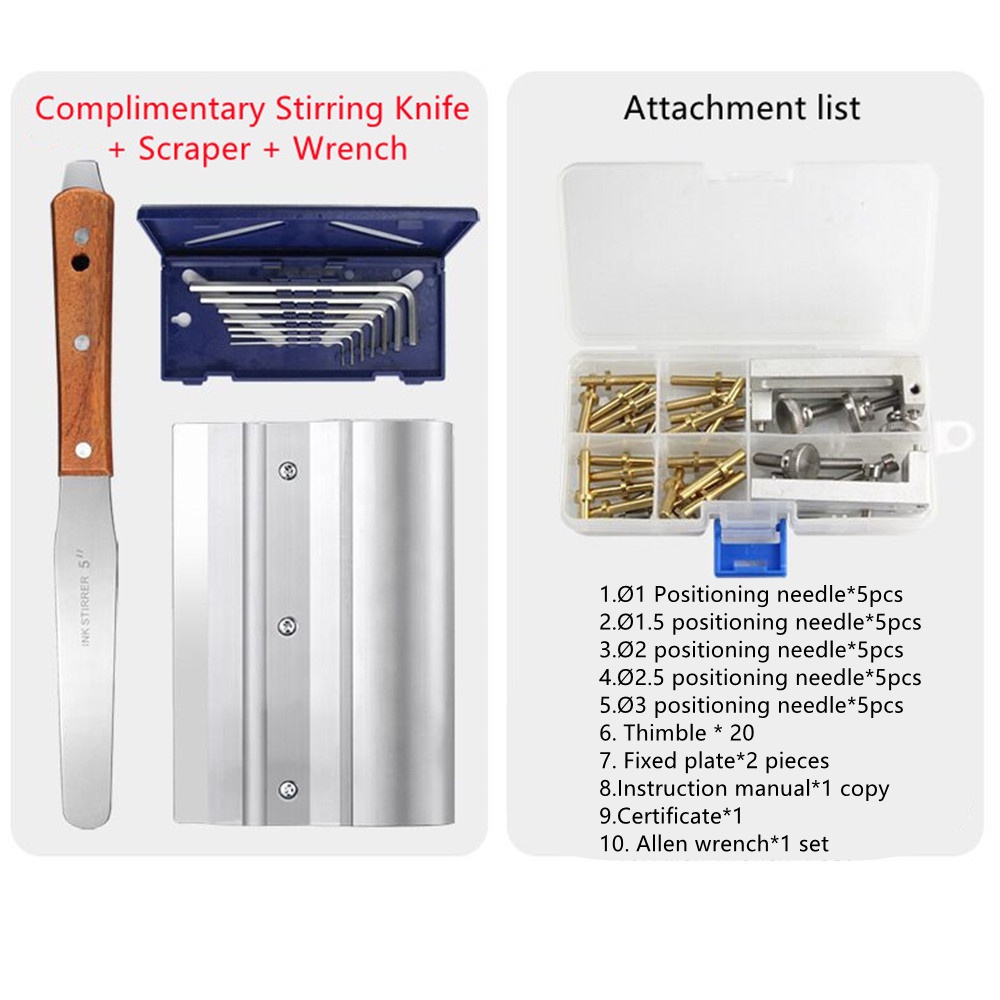

■Attachment things: Thimbles 20pcs Positioning pin attachment 4pcs Fixed plate 2pcs Tool 1pc
Introduction：
3040 manual printing machine with high precisionis mainly designed for requirements of singleor double-sided circuit board solder cream or red glue printing.The working platform is processedby cellular positioning hole with high-quality aluminum and its pedestal is welded by thick steel platewith steadiness and durability.lts characteristics are as follows:
1.circuit board adopts positioning needle, fixed rod and fixed plate for positioning, which can ensureconvenient positioning and accuracy of repeated operation.
2.Make ready mode is made through stencils movement and combined with fine adjustment andcorrection of X and Yaxis in printing platform, which is convenient and quick.
3.Stencil stent uses spiral bearing and height can be adjusted up and down, which is convenient tocontrol PCB's thickness and volume of printing cream.
4.Printing plates are fixed by four rotary knobs with platen and it is quick and strong.
Operation:
1.Take out circuit board that needs to be printed to locate in four positioning needles, adjust heightadjustable knob to make printing template contact circuit board slightly, adjust positioning needleagain to make printing surface of circuit board and aligning hole the same basically and fix fourpositioning needles.
2.Put related thimble among four positioning needles according to the size of the circuit board andthe location of the panel components, adjust X axis and Y axis adjustment knobs at the same timeto make printing surface of circuit board and aligning hole of printing template in precise position,fix workbench through lock knob.
3.Take out corresponding solder cream according to printing amount of ci
