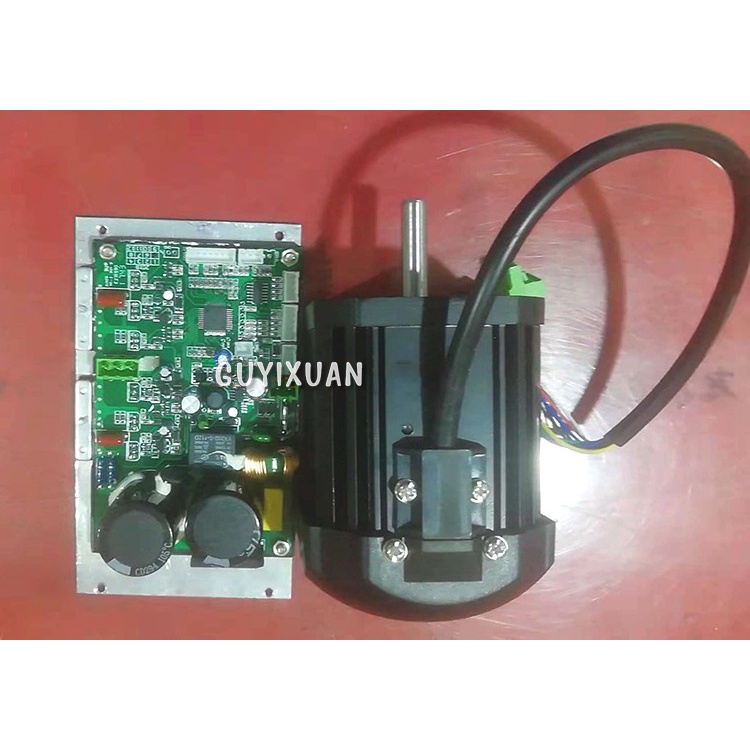

Product name: 850w high power brushless motor + controller
Function: suitable for DIY modification, stepless speed regulation, with forward and reverse.
Application: The 210V brush motor of household lathe is changed to brushless motor, which has stable power, low noise and easy to use.
210 lathe parameters

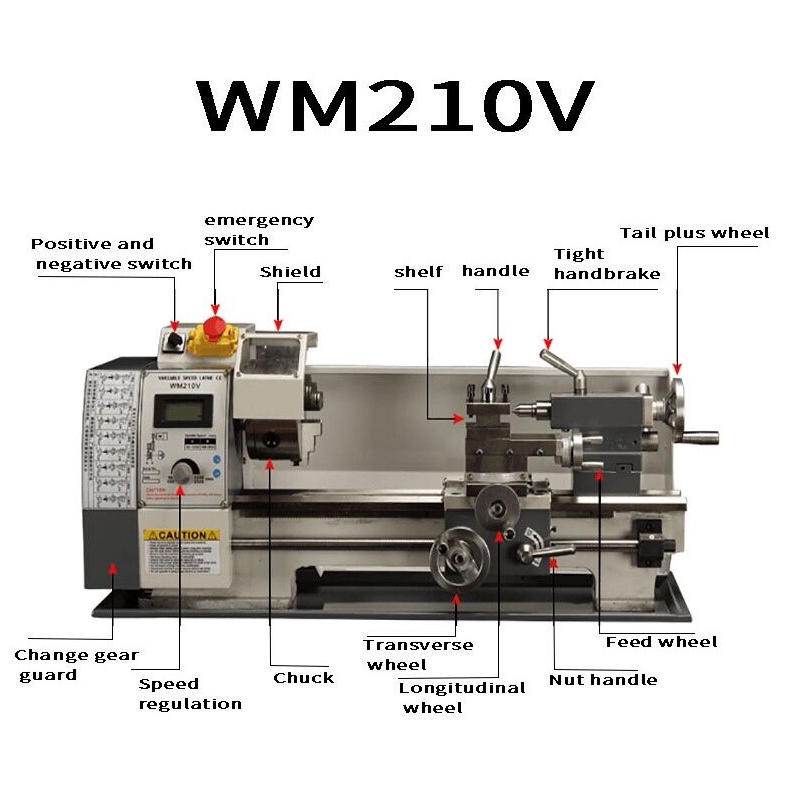

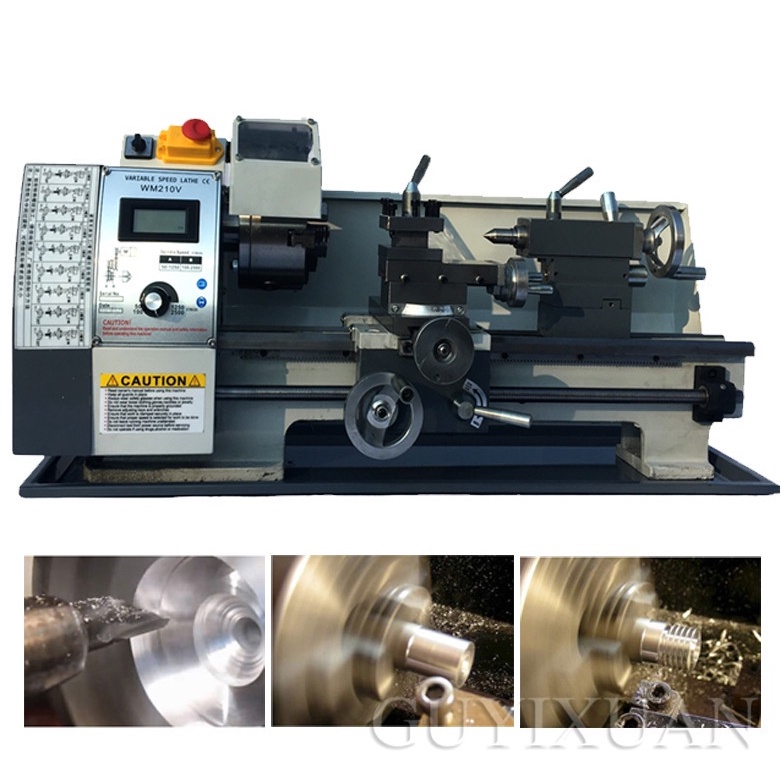

Lathe model: WM210V
The maximum turning diameter of the bed: 210MM
Maximum turning diameter of the pallet: 110MM
Two tip distance: 400MM
Spindle through hole: 38MM
Chuck diameter: 125MM
Motor power: 850 watts without brush
Voltage: 220V or (110V need to contact the merchant)
Speed control mode: stepless speed regulation
Spindle speed: 50-2500RPM
Metric thread range: 0.5-3mm
Inch thread: 10-44T.P.L
Maximum travel of the knife holder: 55mm
Medium pallet maximum stroke: 75mm
Tailstock sleeve stroke: 60mm
Tailstock taper: Mohs 2
Length, width and height (mm): 840*390*370
Weight (gross weight): 72kg
