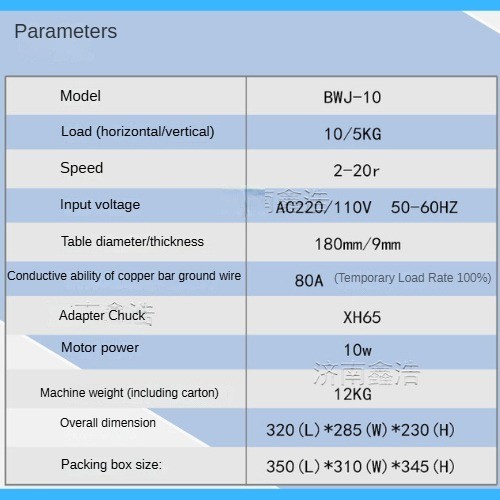

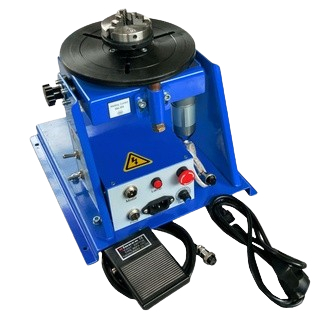

Specifications:
Name: 10 kg positioner
Load (horizontal/vertical): 10/5KG
Speed: 2-20r/M (1-10rr/M)
Input voltage: AV220 50-60HZ
Table diameter/thickness: 180mm/9mm
Conductivity of copper rod ground wire: 80A (temporary load rate 100%)
Adapter chuck: XH65/80mm

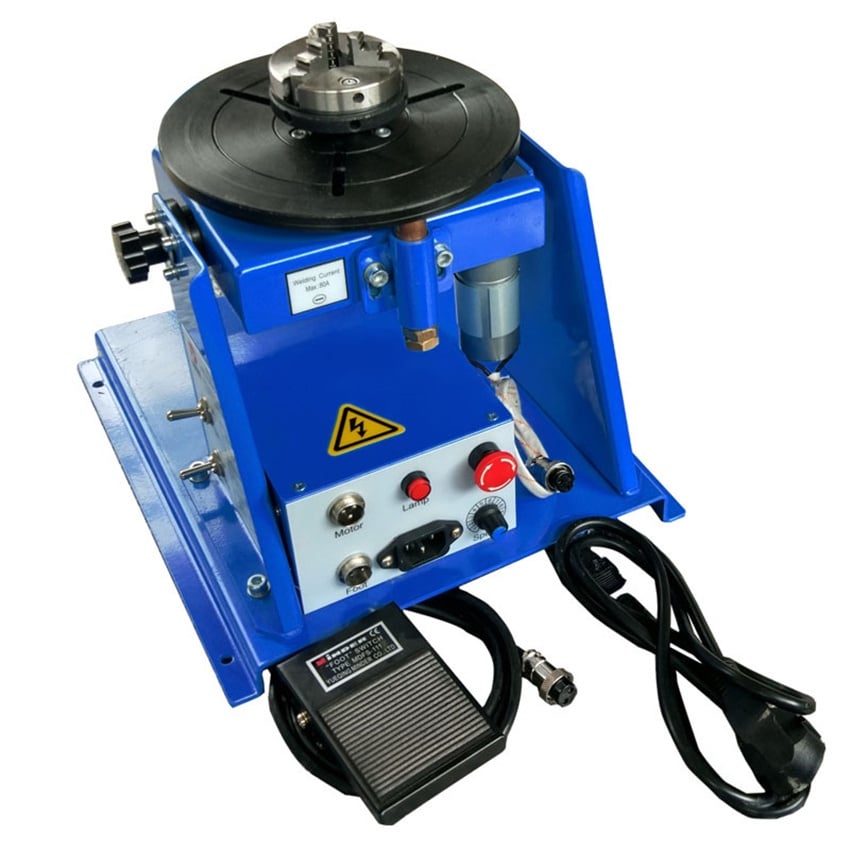

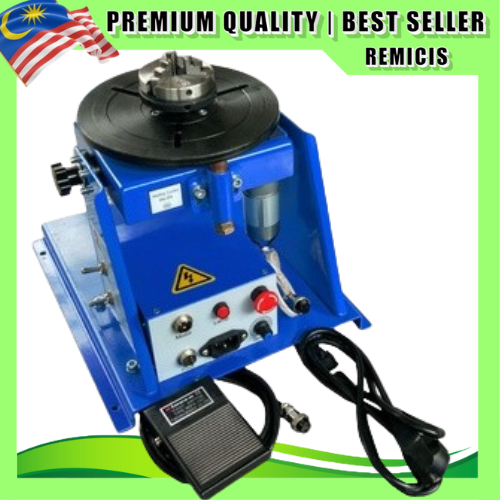

BWJ-10 (10 kg positioner) is mainly composed of five parts: worktable, turning
mechanism, control box, motor and speed reducer, and frame. The workpiece is
fixed on the worktable to rotate and tilt, so that the welding seam is in the most
favorable welding position, so as to improve the welding quality and production
efficiency, and reduce the labor intensity of the workers.
Features:
1. The plate is 9 mm thick and rotates smoothly;

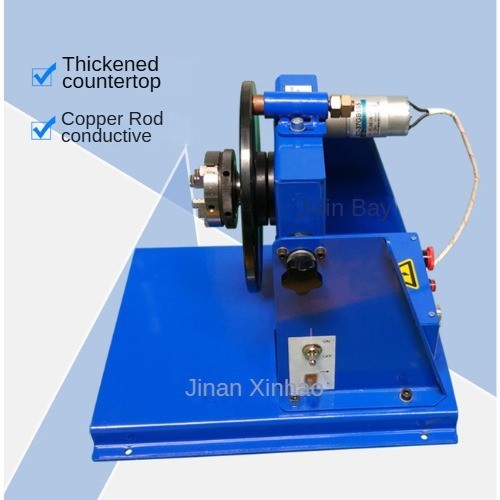

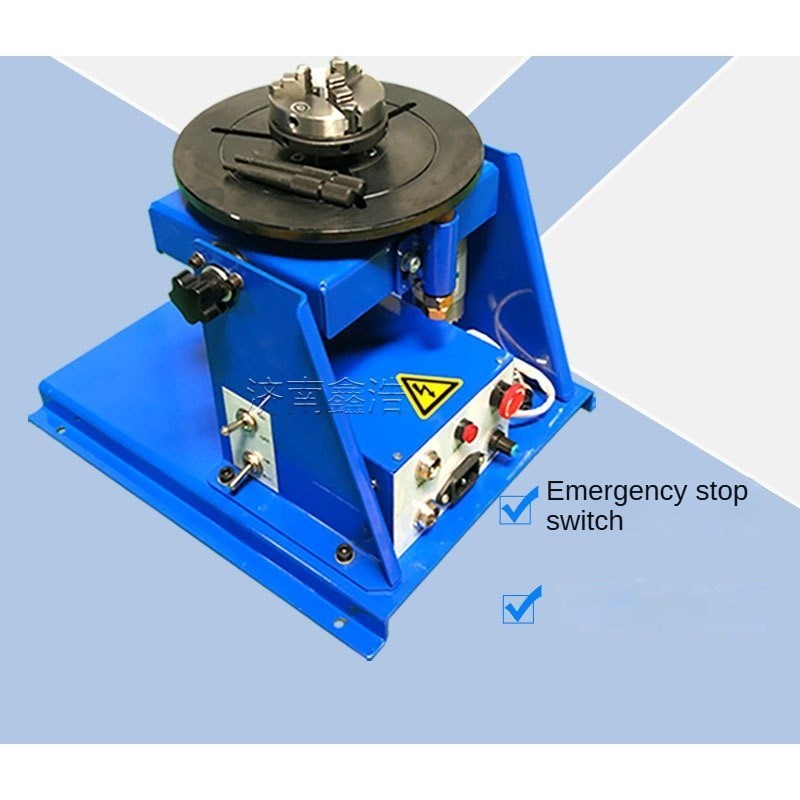

2. Special welding machine ground wire conductive copper brush;
3. The high-quality DC motor is used to transmit the torque to the rotating
worktable through gear meshing transmission, the worktable runs smoothly,
the welding speed can be adjusted steplessly, the adjustment range is large,
and the adjustment accuracy is high.
4. It has small size, precise structure, easy operation and flexible use.
5. Simple mechanical connection mode is selected for the fixture and the
worktable, and the positioning accuracy is high.
6. The foot switch is used to control the rotation of the worktable, which is
convenient to control the rotation.
7. Especially suitable for welding flanges, steel pipes, rings, rounds and other
parts under 10 kg.
8. The standard speed is 2-20 revolutions per minute, and 1-10 revolutions
per minute can also be selected according to actual needs.
Note:
Conductive carbon brush current cannot exceed 70A during welding
This is only suitable for welding small parts of 20-30mm
The maximum outer diameter of the configured chuck is 60mm
The welding length is generally within 200mm
